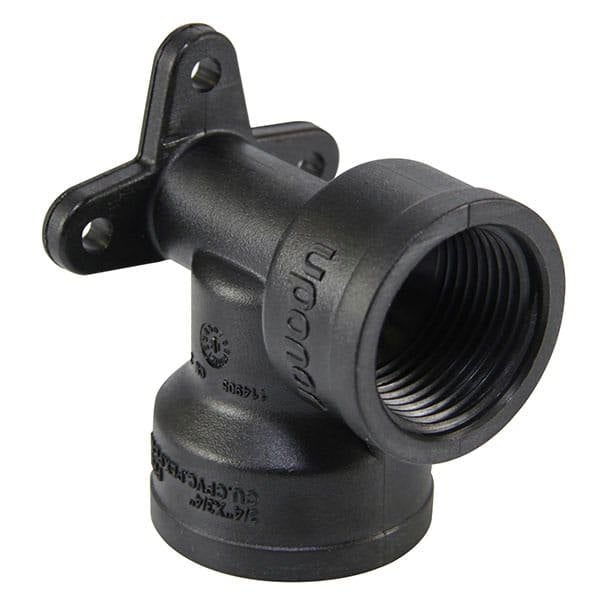

Uponor UPTFDEPFIP90L12 Totalfit Push-to-connect X Fnpt 90-degree Elbow Fitting 1/2 Inch Engineered Polymer

Product Description

The Uponor UPTFDEPFIP90L12 is a 1/2 inch TotalFit push-to-connect x FNPT 90-degree elbow fitting made from engineered polymer. It is designed for plumbing and mechanical systems where a reliable, tool-free connection is required at a directional change point. Plumbers, pipefitters, and mechanical contractors use this type of fitting to make fast, secure connections without soldering, crimping, or threading on the male end. The push-to-connect end accepts pipe or tubing with a simple push, locking it in place with an internal grab ring and seal. The female NPT end threads directly onto a male threaded fitting, valve, fixture, or manifold port. This makes the UPTFDEPFIP90L12 a hybrid fitting that bridges push-fit tubing runs to threaded components in a single piece. The TotalFit series from Uponor is engineered for use with PEX, CPVC, and copper tubing, giving installers flexibility across different piping systems in the same job. The engineered polymer construction resists corrosion and scale buildup, which is a common advantage over brass or metal fittings in aggressive water conditions. This elbow is rated for up to 80 psi of working pressure and handles temperatures up to 200 degrees Fahrenheit, making it suitable for both cold water supply and hot water distribution applications. The fitting measures 2.122 inches in height, 1.551 inches in length, and 1.752 inches in diameter. These compact dimensions make it easy to fit in tight wall cavities, under sinks, or in cramped mechanical spaces. Installers working on residential plumbing, light commercial plumbing, or hydronic heating distribution will find this fitting useful wherever a push-fit to female NPT transition and a 90-degree turn are needed in the same location.

• Push-to-connect end requires no tools, solder, or crimping for fast installation
• Female NPT end connects directly to threaded valves, ports, or fixtures
• Engineered polymer body resists corrosion and scale in potable water systems

Product Highlights

The Uponor UPTFDEPFIP90L12 TotalFit elbow combines a push-fit connection with a female NPT thread in a 90-degree polymer body, rated to 80 psi and 200 degrees Fahrenheit for reliable use in hot and cold plumbing systems.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: UPTFDEPFIP90L12

Technical Specifications

• Series: TotalFit
• Nominal Size: 1/2 inch
• End Style: Push-to-Connect x FNPT
• Fitting and Connector Type: Push-Fit
• Material: Engineered Polymer
• Pressure Rating: 80 psi
• Temperature Rating: 200 degrees F
• Height: 2.122 inches
• Length: 1.551 inches
• Diameter: 1.752 inches
