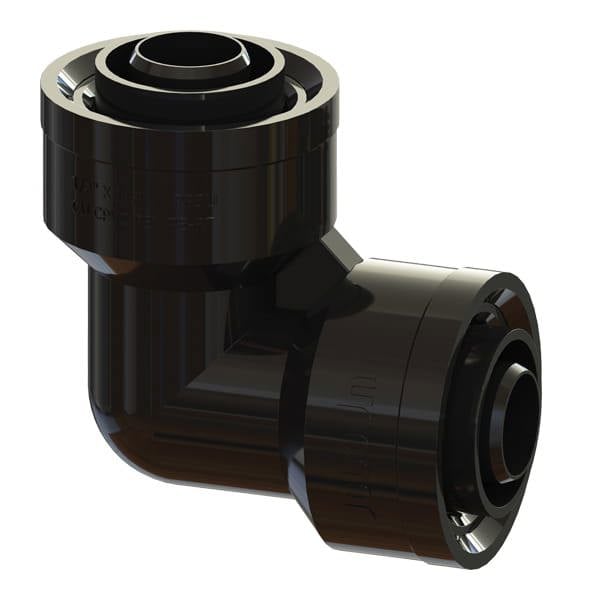

Uponor UPTF90L34 Totalfit Push-to-connect Elbow 3/4 Inch Engineered Polymer

Product Description

The Uponor UPTF90L34 is a 3/4 inch TotalFit push-to-connect elbow fitting made from engineered polymer. It is designed for fast, reliable connections in residential and commercial plumbing systems. Plumbers and mechanical contractors use this fitting when they need a secure directional change in a pipe run without soldering, crimping, or clamps. The push-to-connect design allows the fitting to lock onto compatible tubing with a simple push, saving significant time on installations and service calls. This makes it a practical choice for tight spaces and high-volume jobs where speed and consistency matter. The TotalFit series from Uponor is built to work with PEX, copper, and CPVC tubing, giving installers flexibility across different pipe materials on the same job site. The elbow configuration redirects flow at a 90-degree angle, which is a common requirement when routing water lines through walls, floors, and framing. The fitting carries an 80 psi pressure rating and is rated for temperatures up to 200 degrees Fahrenheit, making it suitable for both cold and hot water supply lines. The engineered polymer construction resists corrosion, scale, and chemical degradation over time, which contributes to a long service life in both potable water and hydronic heating applications. At approximately 2.287 inches in height and length and 1.457 inches in width, it is compact enough to fit in standard framing cavities. The UPTF90L34 is a dependable, code-compliant solution for any plumber or installer who needs a fast and durable elbow connection in a 3/4 inch line. It eliminates the need for open flame, reducing installation risk and inspection concerns on the job site.

• Push-to-connect design installs without tools, solder, or crimping for fast, reliable connections
• Rated to 80 psi and 200 degrees Fahrenheit, suitable for hot and cold potable water and hydronic systems
• Engineered polymer construction resists corrosion, scale, and chemical degradation for long service life

Product Highlights

The Uponor UPTF90L34 TotalFit elbow delivers a fast, secure 3/4 inch push-to-connect fitting solution compatible with PEX, copper, and CPVC tubing. Its high-temperature and pressure ratings make it a dependable choice for professional plumbing installations.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: UPTF90L34

Technical Specifications

• Series: TotalFit
• Nominal Size: 3/4 inch
• Fitting Type: Push-Fit
• Material: Engineered Polymer
• Pressure Rating: 80 psi
• Temperature Rating: 200 degrees F
• Height: 2.287 inches
• Width: 1.457 inches
• Length: 2.287 inches
