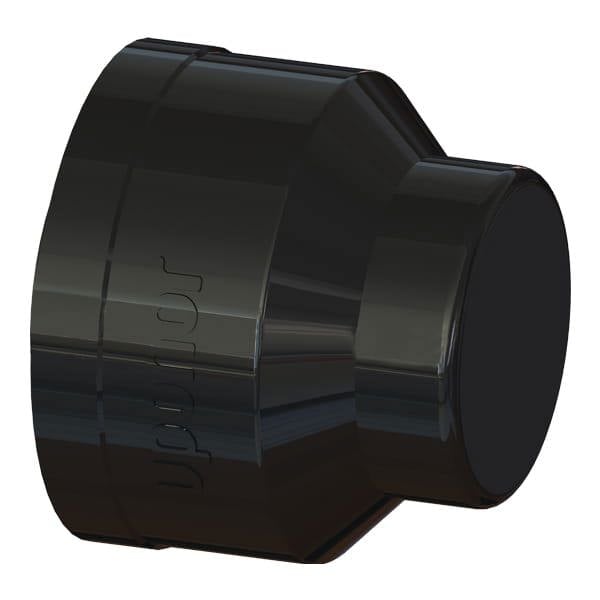

Uponor TF4350750 TotalFit Plug, 3/4 in Nominal, Push-to-Connect End Style, Engineered Polymer

Product Description

The Uponor TF4350750 TotalFit Plug is a 3/4 in nominal, push-to-connect end style fitting made from engineered polymer. TotalFit is a professional-grade engineered polymer push-to-connect solution that provides value for residential projects, offering versatility and speed for PEX, PE-RT, CPVC, and copper piping systems.

• Push-to-connect design
• Engineered polymer construction
• Suitable for PEX, PE-RT, CPVC and copper piping systems

Product Highlights

This Uponor TotalFit plug features a push-to-connect design and is suitable for various piping systems.

Product Information

Standard Information

• Brand: Uponor
• Manufacturer Part Number: TF4350750

Technical Specifications

• End Style: Push-to-Connect
• Fitting/Connector Type: Push-Fit
• Material: Engineered Polymer
• Nominal Size: 3/4 in
• Pressure Rating: 80 psi
• Series: TotalFit
• Temperature Rating: 200 deg F
• End Size 1 [inch|mm]: 3/4"
• End Type 1: TotalFit
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Material group: Engineered Polymer
• Prop 65 label required?: No
• A [inch]: 1.067 inch
• B [inch]: 1.197 inch
• C [inch]: 1.457 inch
