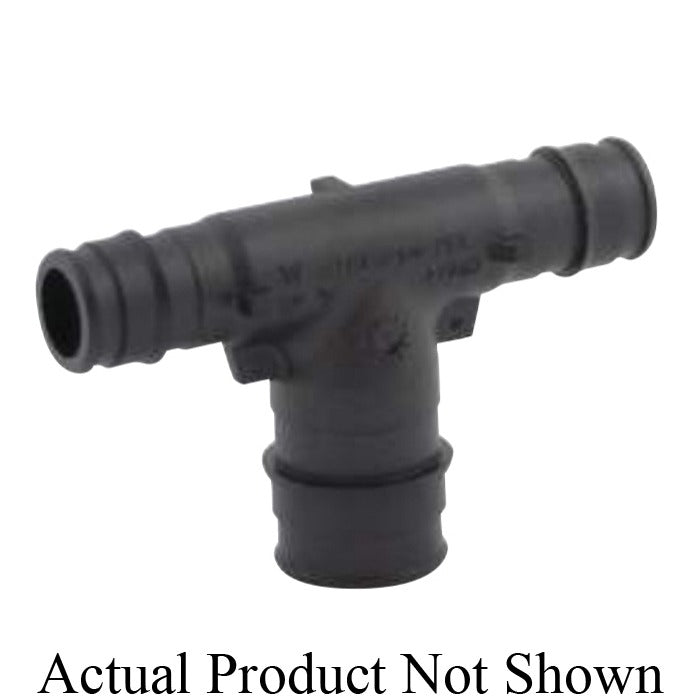

Uponor Q4757550 Propex Reducing Tee 3/4x3/4x1/2 in

Product Description

The UPONOR Q4757550 is a ProPEX reducing tee fitting designed for PEX water distribution systems in residential and light commercial plumbing installations. It connects two 3/4-inch runs to a 1/2-inch branch, allowing a single main line to feed a reduced-size outlet without additional adapters. The fitting is molded from 20% glass-reinforced polymer, giving it the rigidity and pressure tolerance needed for potable water supply piping. Licensed plumbers install this fitting using a ProPEX expansion tool, which expands the PEX tubing end before the fitting is inserted and the ring recovers for a secure mechanical connection.

This reducing tee is suited for potable hot and cold water supply lines in residential new construction and retrofit plumbing projects. The 3/4 x 3/4 x 1/2-inch configuration is commonly used where a main trunk line steps down to feed individual fixture branch lines such as lavatory faucets, toilets, or ice makers. The ProPEX end style is compatible with UPONOR ProPEX expansion-style connections and requires the appropriate PEX-a tubing and expansion rings for proper installation.

Key Features

• 3/4 x 3/4 x 1/2-inch nominal reducing configuration for trunk-to-branch transitions
• ProPEX end style uses expansion-ring connection method for a reliable, leak-resistant joint
• 20% glass-reinforced polymer construction for added rigidity and dimensional stability
• Domestic manufacture
• No solder, flux, or open flame required during installation

Compatibility

Designed for use with ProPEX expansion-style PEX-a tubing and compatible ProPEX expansion rings in 3/4-inch and 1/2-inch sizes as part of a UPONOR ProPEX plumbing system.

Installation Notes

Installation must be performed by a licensed plumber following local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before cutting into any existing piping. A calibrated ProPEX expansion tool and the correct size expansion rings are required for proper ring recovery and joint integrity. Do not use this fitting with crimp-style or clamp-style PEX connections.

Technical Specifications

• Nominal Size: 3/4 x 3/4 x 1/2 inches
• End Style: ProPEX
• Material: 20% Glass-Reinforced Polymer
• Origin: Domestic

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: Q4757550
