Product Description

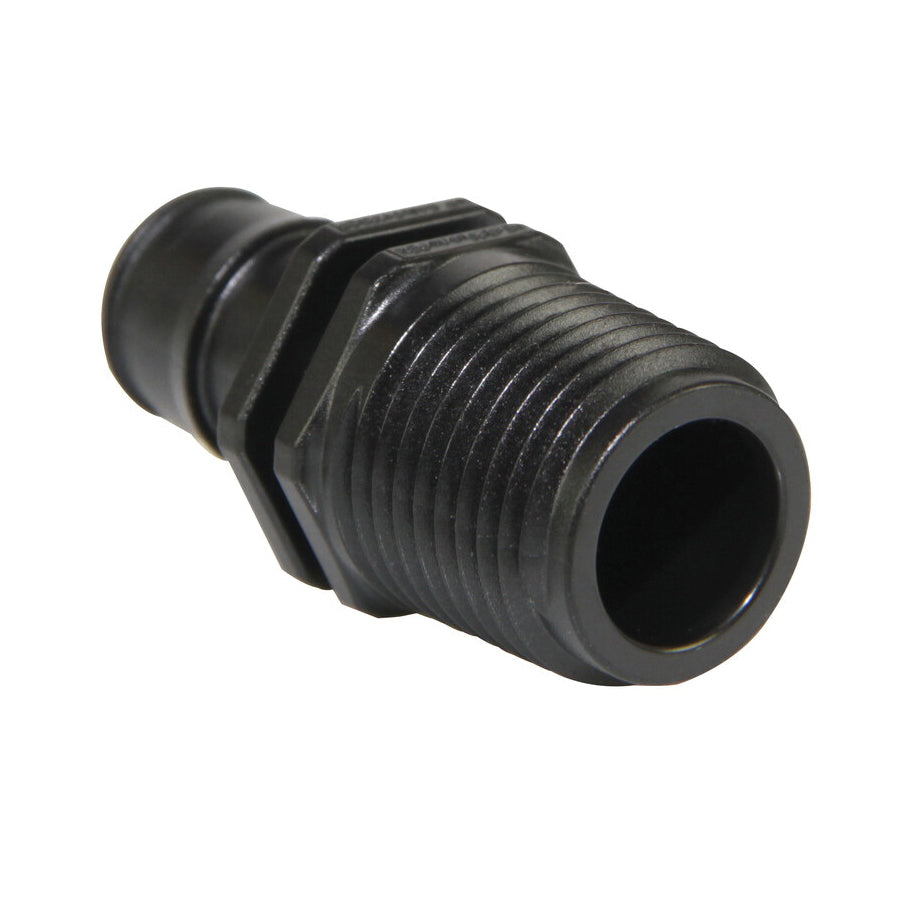

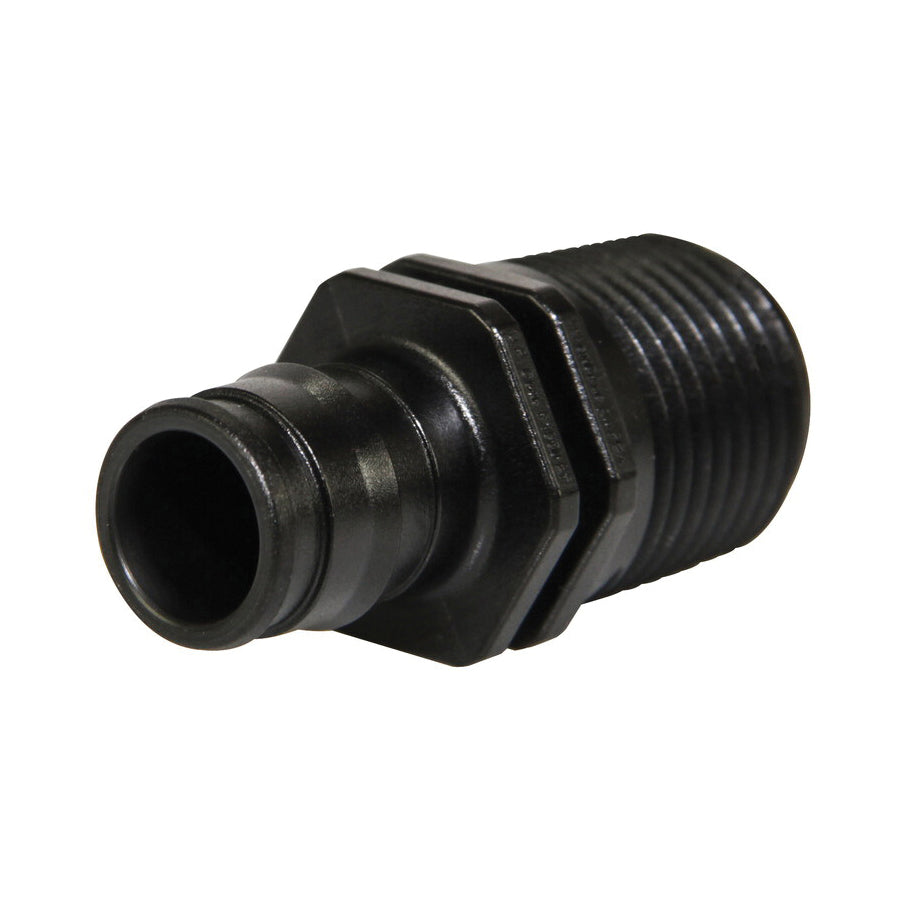

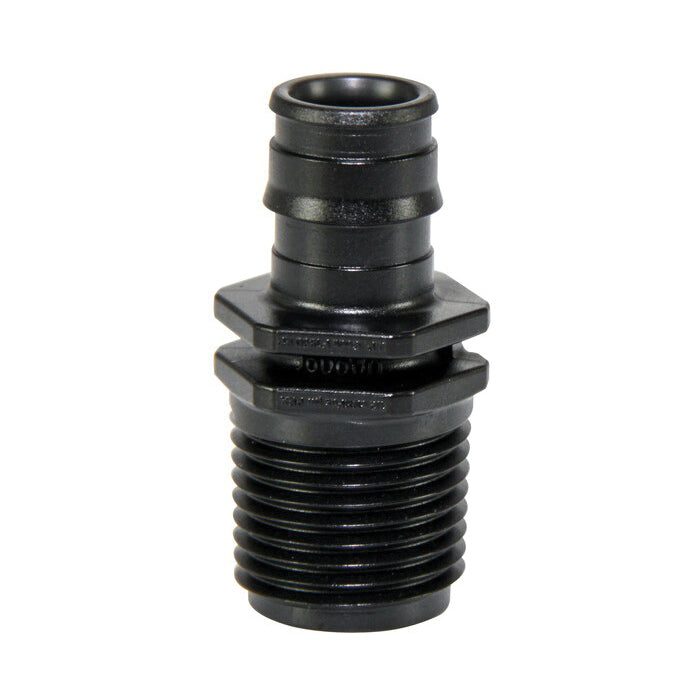

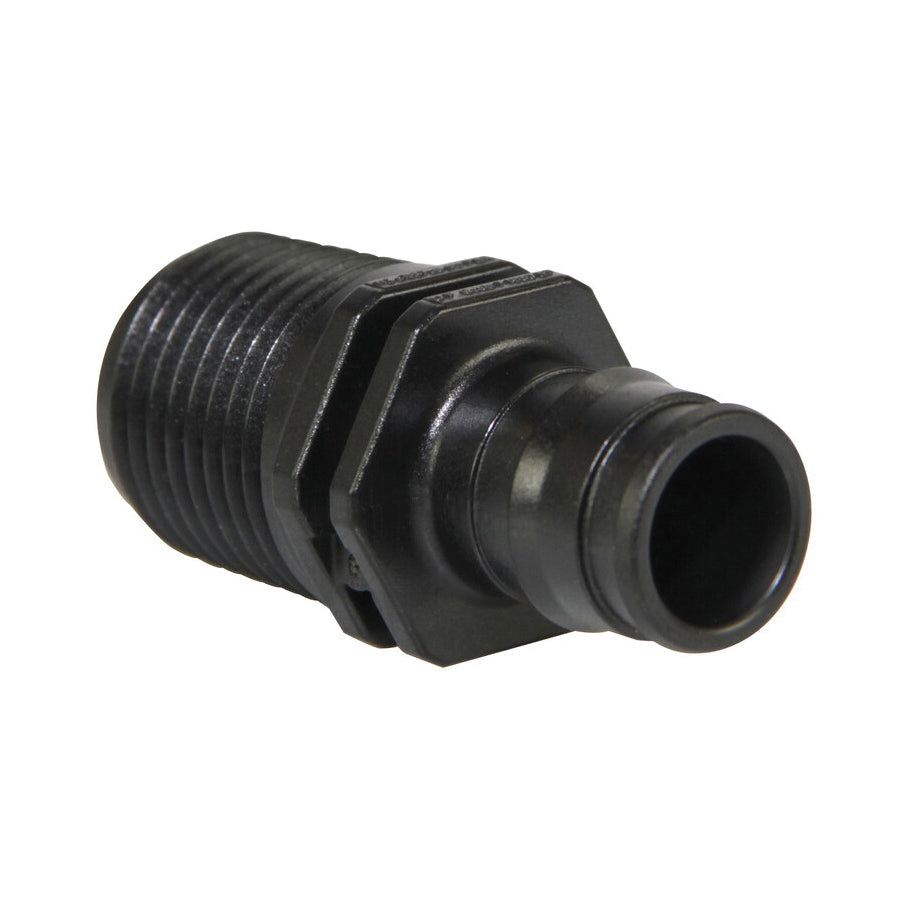

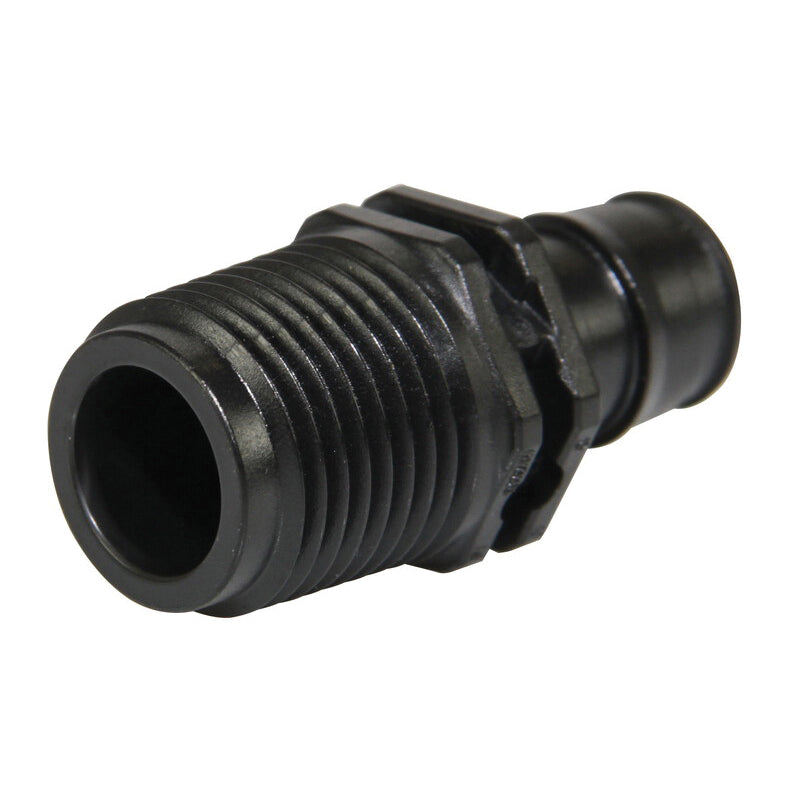

The Uponor Q4625050 male adapter is a threaded fitting with 1/2 x 1/2 inch dimensions. Constructed from engineered plastic, this adapter features a PEX x Male NPT end connection. It is designed for use in radiant heating and cooling systems.
- Threaded connection
- Constructed from engineered plastic
- Features PEX x Male NPT end connection
Product Highlights
This Uponor male adapter is suitable for radiant heating and cooling systems, providing a secure threaded connection.
Product Information
Standard Information
-
Brand: UPONOR
-
Manufacturer Part Number: Q4625050
Technical Specifications
-
Brand: Uponor
-
Product Type: Threaded
-
Material: Engineered Plastic
-
Size: 1/2x1/2IN
-
End Connection: PEX x MaleNPT
-
Part Number: Q4625050
-
Application: Radiant Heating and Cooling Systems
-
End Style: ProPEX x MNPT
-
Nominal Size: 1/2 in
-
Maximum Pressure Rating: 160 PSI
-
Maximum Temperature Rating: 200 deg F
-
Minimum Temperature Rating: 73 deg F
-
Series: ProPEX
-
Specifications Met: ASTM F1960, F877, CSA B137.5, NSF 61, 14, 372, UPC Approved, cNSFus-pw
-
Fitting/Connector Type: Adapter
-
Pressure Rating: 160 psi
-
Temperature Rating: 73 deg F
-
End Size 1 [inch|mm]: 1/2"
-
End Size 2 [inch|mm]: 1/2"
-
End Type 1: ProPEX
-
End Type 2: MNPT
-
Operating Pressure 1 [PSI]: 160 psi
-
Operating Pressure 2 [PSI]: 100 psi
-
Operating Pressure 3 [PSI]: 80 psi
-
Operating Temperature 1 [°F]: 73 °F
-
Operating Temperature 2 [°F]: 180 °F
-
Operating Temperature 3 [°F]: 200 °F
-
Material group: Engineered Polymer
-
Operating Pressure 1 [bar]: 11 bar
-
Operating Pressure 2 [bar]: 6.9 bar
-
Operating Pressure 3 [bar]: 5.5 bar
-
Operating Temperature 1 [°C]: 23 °C
-
Operating Temperature 2 [°C]: 82 °C
-
Operating Temperature 3 [°C]: 93 °C
