Uponor Q4050750 3/4 inch ProPEX Fitting Assembly for Commercial Manifold R25 Thread

Product Description

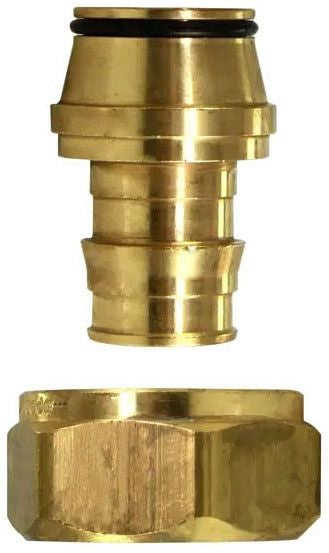

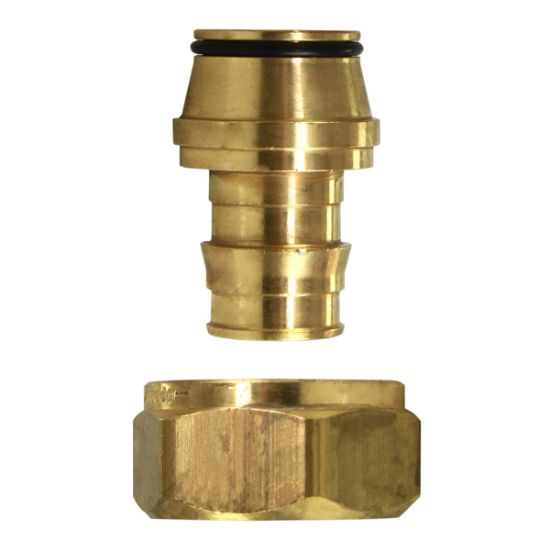

The UPONOR Q4050750 is a 3/4 inch ProPEX Fitting Assembly designed for commercial manifolds. This brass fitting connects 3/4 inch Uponor PEX pipe to Uponor Commercial Stainless-Steel Manifolds using ProPEX expansion and R25 threads. It is a two-piece assembly, including a ProPEX insert and an R25 swivel nut, suitable for radiant heating and cooling applications. It threads onto manifold loop outlets.

• Connects 3/4 inch Uponor PEX pipe to commercial stainless-steel manifolds.
• Features ProPEX expansion and R25 threads for secure connections.
• Manufactured from durable brass, supplied as a two-piece assembly with ProPEX insert and R25 swivel nut.

Product Highlights

This fitting assembly is ideal for connecting PEX tubing to commercial manifolds in radiant heating and cooling systems.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: Q4050750

Technical Specifications

• MPN: Q4050750
• Codes: IRC, NBC of Canada, UMC, IMC
• Listings: IAPMO-ES, ICC PMG 1006, cNSFus-rfh, ICC-ES-PMG 1012
• Standards: ASTM F877, ASTM F1960, CSA B137.5, R25: ISO 228-G 1", NSF/ANSI 14
• Cv: 12.07
• End Size 1: 3/4 inch
• End Size 2: 1 inch
• End Type 1: ProPEX
• End Type 2: ISO 228-G
• Material Gasket: Nitrile (Buna N)
• Operating Pressure 1: 160 psi
• Operating Pressure 2: 100 psi
• Operating Pressure 3: 80 psi
• Operating Temperature 1: 73 �F
• Operating Temperature 2: 180 �F
• Operating Temperature 3: 200 �F
• Material: Brass
• Prop 65 Label Required: Yes
• Equivalent Length Through: 3.18 ft
• Dimension A: 1.713 inch
• Dimension B: 0.768 inch
• Dimension C: 1.729 inch
• Dimension D: 0.275 inch
• Dimension E: 0.945 inch
• Dimension F: 1.5 inch
• Category: Pipe Fittings & Accessories
• Subcategory: PEX Fittings
• UPC: 673372752480
• Product Type: Hydronic Manifold Accessories
