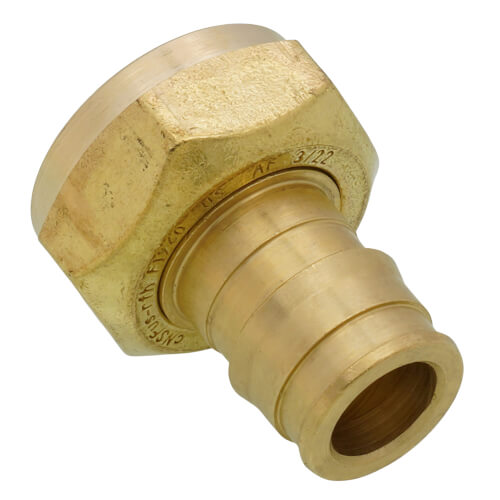

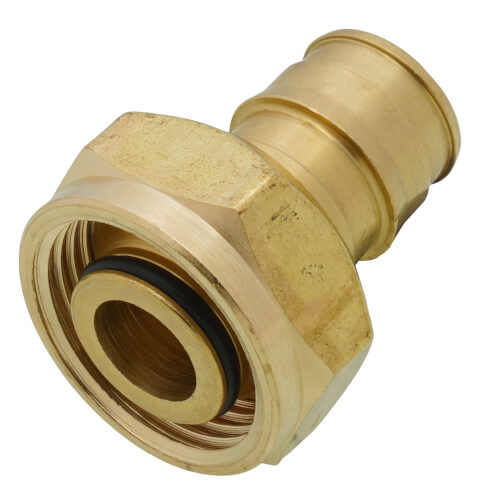

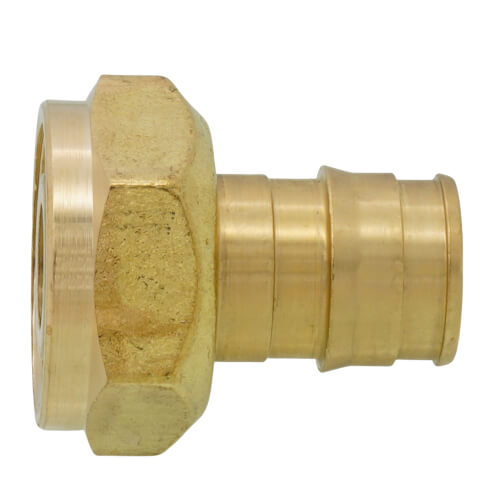

Uponor Q4020625 Fitting Assembly 5/8 inches Propex Fitting Assy R20

Product Description

The Uponor Q4020625 is a manifold fitting assembly with a 5/8" nominal size and R20 thread end style. These ProPEX® manifold fitting assemblies with ProPEX® insert connect 3/8 in though 3/4 in Uponor PEX tubing to stainless-steel, brass and EP heating manifolds. Sold as a two-piece assembly, they include a ProPEX® insert and R20 swivel nut.

• ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
• ASTM F1960 specification for cold expansion fittings with PEX reinforcing rings for use with cross-linked polyethylene (PEX) tubing
• 5/8 in Nominal, R20 Thread End Style

Product Highlights

The Uponor Q4020625 fitting assembly is ideal for connecting Uponor PEX tubing to heating manifolds, ensuring secure and reliable connections in plumbing and heating systems.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: Q4020625
• Country of Origin: Domestic

Technical Specifications

• Nominal Size: 5/8 in
• End Style: R20 Thread
• Fitting/Connector Type: Coupling
• Material: Brass
• Pressure Rating: 125 psi
• Temperature Rating: 220 deg F
• Domestic/Import: Domestic
• Size: R20 x 5/8 in ProPEX
