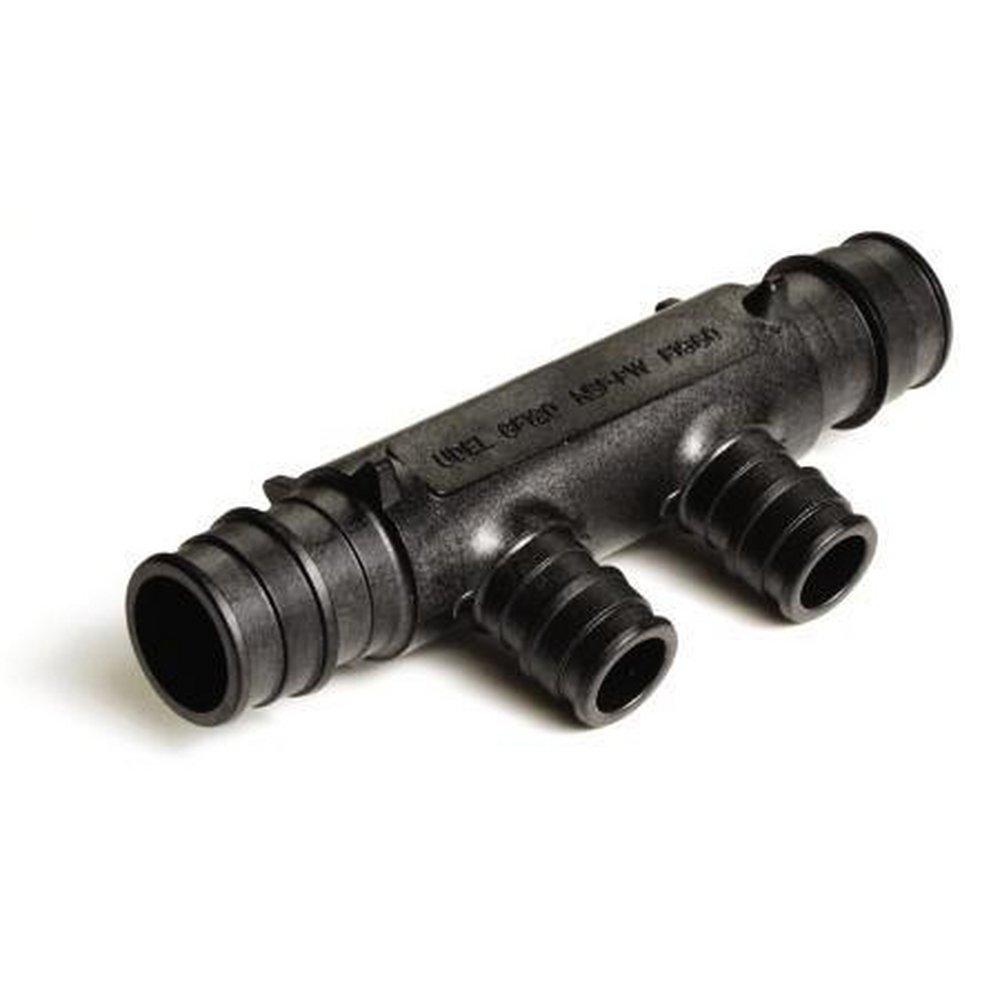

Uponor Q2227557 3/4 in. PEX Expansion Plastic Manifold with 2 Outlet

Product Description

The UPONOR Q2227557 is a 3/4 in. PEX expansion plastic manifold with 2 outlets, ideal for hot and cold domestic potable-water systems. It is made from engineered polymer for strong performance and corrosion resistance. This multiport tee requires a ProPEX tool and ProPEX rings, which are sold separately.

• Ideal for hot and cold domestic potable-water systems
• Made from engineered polymer for strong performance and corrosion resistance
• Multiport tee with 2 outlets

Product Highlights

This PEX manifold is designed for efficient plumbing systems, minimizing connections while maximizing performance. It is suitable for use in Uponor AquaPEX plumbing systems.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: Q2227557

Technical Specifications

• Application: Hot Water
• Product Type: Manifold
• Selling Size: 3/4 in
• Catalog Number: Q2227557
• Connection Size: 3/4 in
• Connection Type: PEX
• Pressure Rating: 150 PSI
• Specifications Met: CAN/CSA B137.5, ASTM F877, ASTM F1960, ANSI/NSF 14/61, ICC ESR-1099, IAPMO 3946, HUD MR 1269, cQAIus P321
• Temperature Rating: 320 Deg F
• Maximum Pressure Rating: 150 PSI
• Maximum Temperature Rating: +210 deg F
• Length: 4.4 in
• Brand: UPONOR
• Manufacturer: UPONOR WIRSBO-RADIANT & AQUAPEX
• MPN: Q2227557
• End Style: ProPEX
• Fitting/Connector Type: Tee
• Material: Polymer
• Nominal Size: 3/4 in
• Type: Flow-Through
• Domestic/Import: Domestic
• Item Name: Flow-Through Multi-Port Tee
• Additional Information: 2-Outlets
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• End Type 1: ProPEX
• End Type 2: ProPEX
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Temperature 1 [�F]: 73 �F
• Operating Temperature 2 [�F]: 180 �F
• End Size 1 [inch|mm]: 3/4"
• End Size 2 [inch|mm]: 3/4"
• Material group: Engineered Polymer
• Cv Outlet 2: 3.4
• Cv Through: 15.3
• Height: 1.77 Inch
