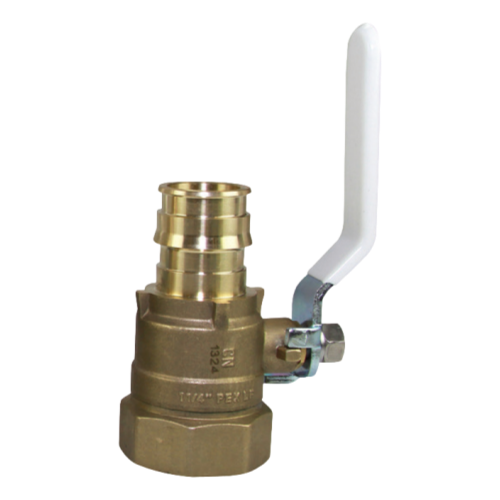

Uponor LFT4905050SS ProPEX LF Brass Transition Ball Valve (full port) SS Ball and Stem 1/2 inches PEX x 1/2 inches FNPT

Product Description

The UPONOR LFT4905050SS ProPEX LF Brass Transition Ball Valve is designed for threaded, press, and flange connections in domestic water and mechanical HVAC piping applications. This full-port valve features a stainless steel ball and stem, providing reliable, high-flow performance. It is constructed from lead-free brass and offers 1/2 inch PEX x 1/2 inch FNPT connections, suitable for various plumbing system integrations.

• Full port design for optimal flow
• Stainless steel (SS) ball and stem for durability
• 1/2 inch PEX x 1/2 inch FNPT connections for versatile installation

Product Highlights

Lead-free brass full-port ball valve with stainless steel components for reliable flow.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: LFT4905050SS

Technical Specifications

• MPN: LFT4905050SS
• Connection Size: 1/2" PEX x 1/2" FNPT
• Valve Type: Transition Ball Valve
• Body Material: LF Brass
• Port Type: Full
• Cold Working Pressure (CWP): 250 psi
• Operating Pressure: 200 psi
• Operating Temperature: 200 �F
• Cv: 4.7
• Certifications: cNSFus-pw-G, U.P.Code
• Standards: ASTM F877, NSF/ANSI/CAN 372, NSF/ANSI 359, ASTM F1960, CSA B137.5, NSF/ANSI/CAN 61, NSF/ANSI 14
• Codes: UPC, IBC, IRC, IPC, NPC of Canada, UMC, IMC
• Dimension A: 2.37 inch
• Dimension B: 0.984 inch
• Dimension C: 2.133 inch
• Dimension D: 4.622 inch
• Dimension E: 3.425 inch
• Dimension F: 0.465 inch
• Dimension G: 1.583 inch
• Dimension H: 0.55 inch
• Dimension I: 1.101 inch
• Dimension J: 0.709 inch
• Dimension K: 1.051 inch
