Product Description

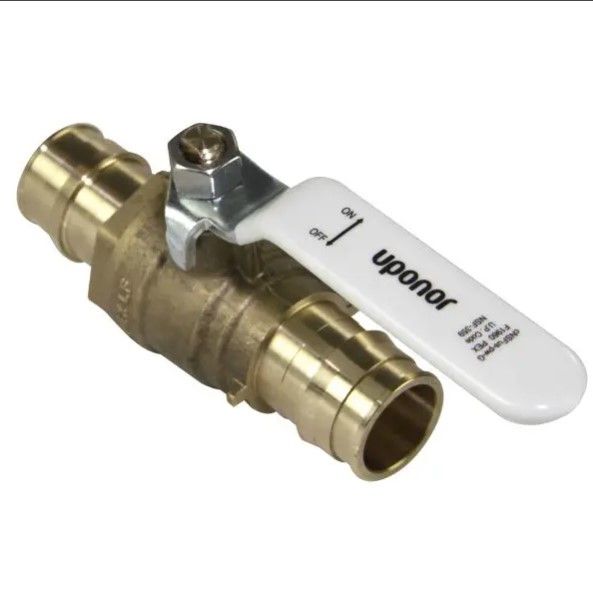

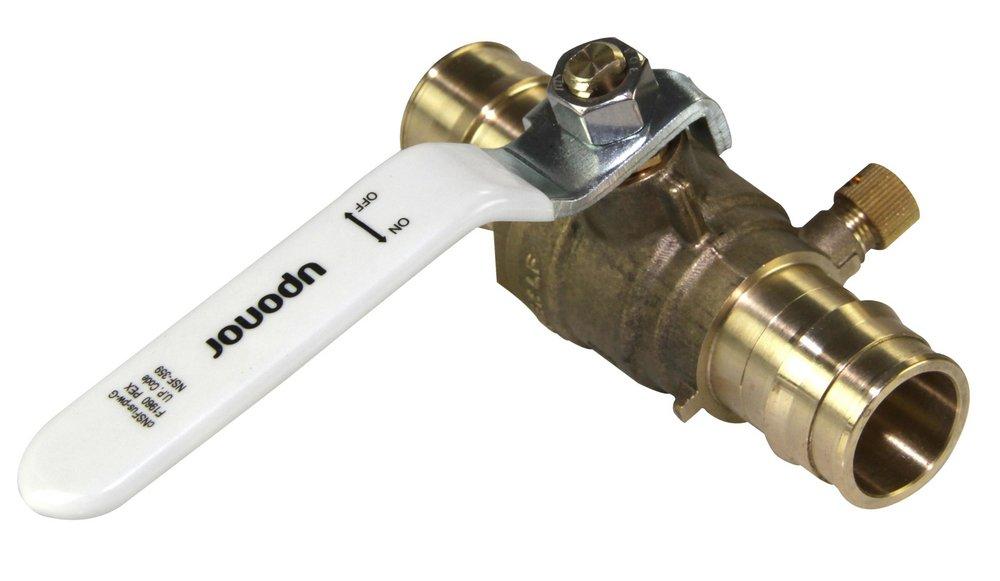

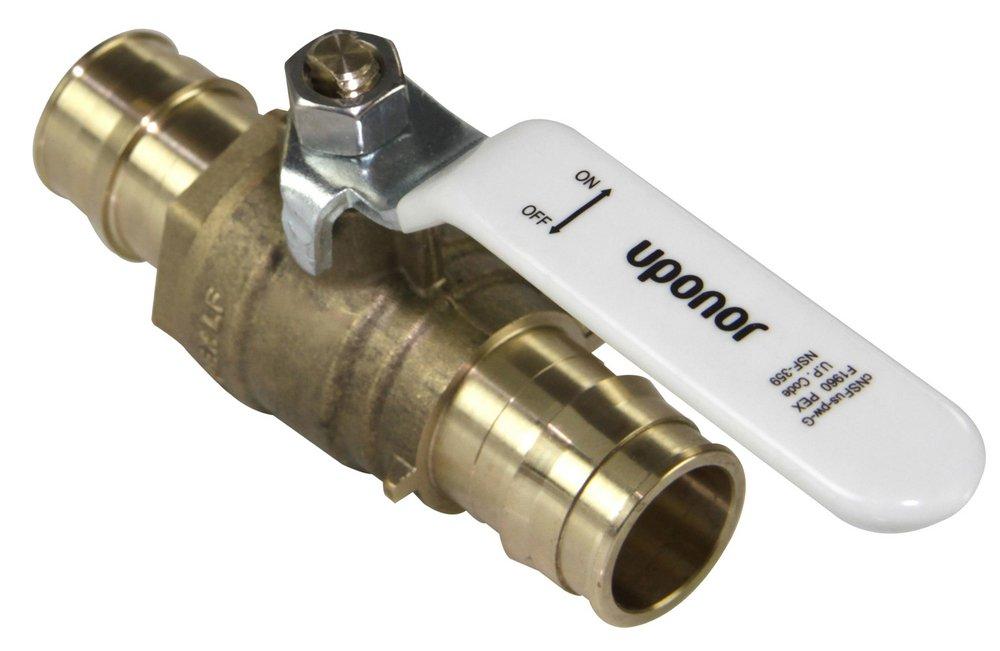

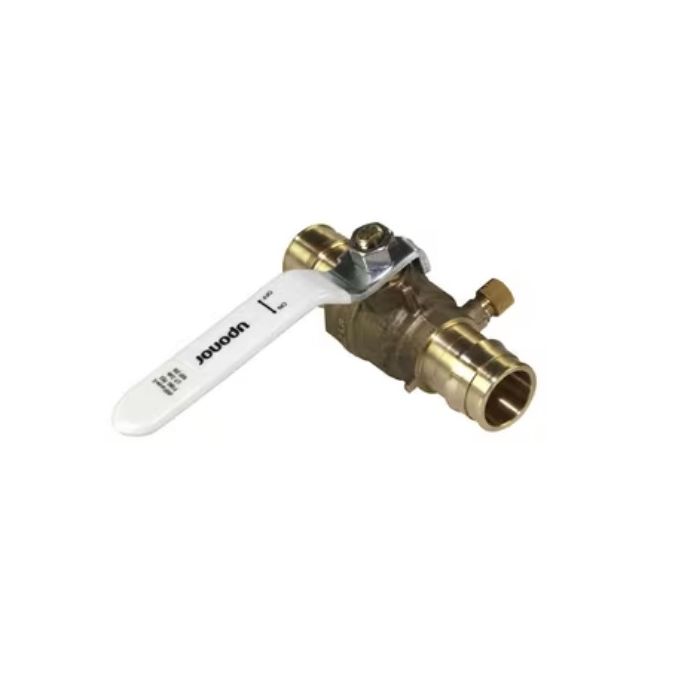

The Uponor LFR4811010 ball valve features a lead-free, full port design and is suitable for 1 inch Propex connections. Constructed from high-quality, dezincification-resistant brass, this valve ensures durability and performance. It meets industry standards for safe drinking water and reliable connections.
- Lead-free construction
- Full port design for maximum flow
- Reliable ProPEX connection system
Product Highlights
This Uponor ball valve offers a reliable, full-port solution for residential and commercial plumbing systems, ensuring maximum flow and safe water delivery.
Product Information
Standard Information
-
Brand: UPONOR
-
Manufacturer Part Number: LFR4811010
-
Country of Origin: China
Technical Specifications
-
Brand: Uponor
-
Category: Valve
-
Finish: Brass
-
Material: Brass, Plastic
-
MPN: LFR4811010
-
End Style: PEX
-
Actuator Type: Lever Handle
-
Body Material: Brass
-
Domestic/Import: Domestic
-
Nominal Size: 1 x 1 in
-
Port Type: Full
-
Pressure Rating: 200 psi
-
Series: ProPEX
-
Temperature Rating: 200 deg F
-
Type: Residential
-
End Size 1 [inch|mm]: 1"
-
End Size 2 [inch|mm]: 1"
-
End Type 1: ProPEX
-
End Type 2: ProPEX
-
Cv: 21.8
-
Operating Pressure 1 [PSI]: 200 psi
-
Operating Temperature 1 [°F]: 200 °F
-
Material group: LF Brass
-
ASTM: ASTM F-877, ASTM F-1960
-
CSA Certified: CSA B137.5
-
Collection: ProPEX®
-
Color Finish Name: Brass
-
End Connection 1: PEX Expansion
-
End Connection 2: PEX Expansion
-
End Connections: PEX Expansion
-
Handle Material: Galvanized Steel
-
Handle Type: Lever
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
Material Type: PTFE
-
Maximum Temperature: 200
-
NSF: NSF 14, NSF 61, NSF 359, NSF 372
-
NSF Certified: Yes
-
Proposition 65: WARNING: This product contains chemicals know to the State of California tocause cancer and birth defects or other reproductive harm. For more information: www.P65Warns.ca.gov
-
Recommended Valve Application: Residential
-
Valve Body Material: Brass
-
Valve Operator: Lever Handle
-
Valve Port Opening: Full Port
-
Valve Seat Material: PTFE
-
Valve Size: 1 in
-
Valve Type: Ball Valve
-
Suitable Media: Oil, Water
-
Technical Standard: National Pipe Taper (NPT)
-
Housing Material: Brass
-
WOG Rating: 250 psi
-
Valve Operation: Manual
-
WSP Rating: 200 psi
-
Diameter: 1 in
-
Country of Origin: China
-
Manufacturer Part Number: LFR4811010
-
UPC / GTIN: 673372695886
-
Manufacturer: Uponor
