Product Description

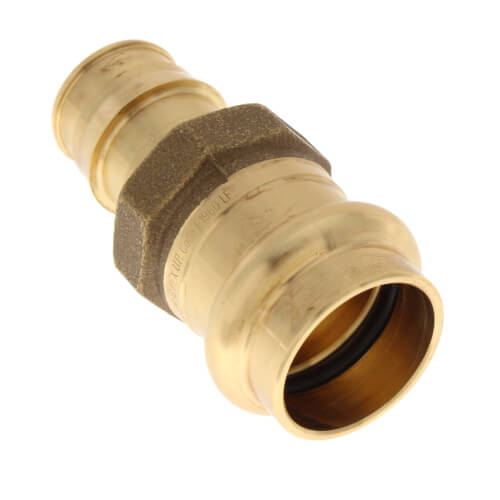

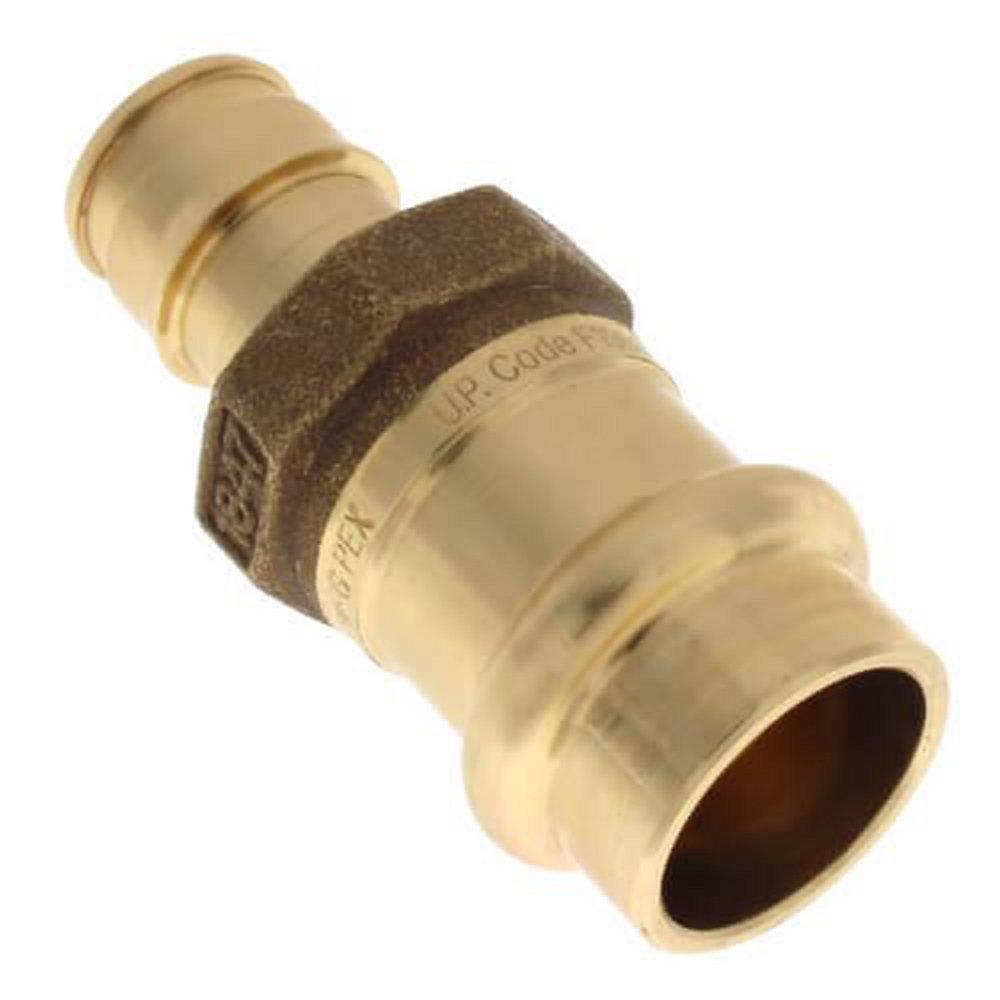

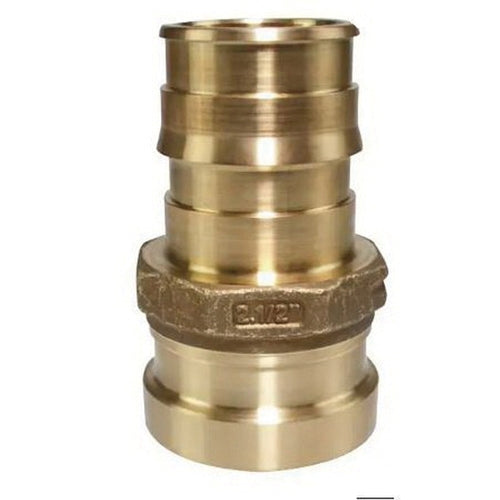

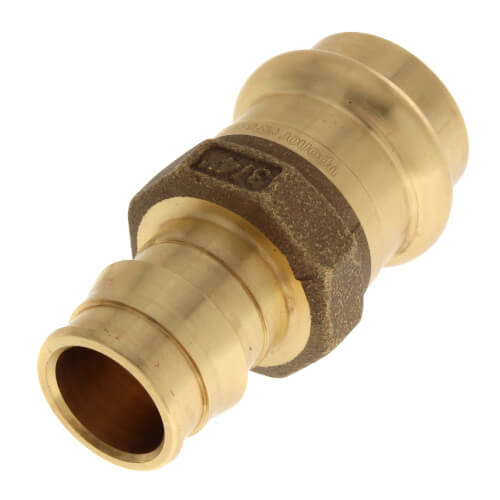

The Uponor LFP4517575 ProPEX LF brass copper press adapter transitions copper pipe to Uponor PEX. This adapter fitting is designed for hot and cold potable water, hydronic heating, and cooling systems. It provides fast, consistent, reliable connections for ASTM F1960 ProPEX expansion systems to copper press systems.
- Faster installations compared to copper sweat transitions for greater profitability
- Eliminates hot work for safer job sites
- Reduces liability with the only PEX connection system that cannot be dry fit
Product Highlights
The Uponor ProPEX adapter provides a reliable method for joining copper pipe or copper fittings without the need for dangerous hot work.
Product Information
Standard Information
-
Brand: UPONOR
-
Manufacturer Part Number: LFP4517575
-
Country of Origin: US
Technical Specifications
-
Applicable Standard: NSF 14/61/372, CSA B137.5, UPC, IAPMO, IBC, IMC, IRC, IPC, NSPC, NPC, UMC, ICC PMG 1006, ICC ES LC1002, HUD MR 1269
-
Application: Hot and Cold Potable Water, Hydronic Heating and Cooling System
-
End Connection: ProPEX x Copper Press
-
Material: Brass
-
Material Specification: ASTM F877/F1960
-
Pressure Rating: 80 PSI
-
Size A: 3/4 Inch
-
Size B: 3/4 Inch
-
Temperature Rating: 200 Deg F
-
Type: Straight
-
Size: 3/4 in PEX x 3/4 in Copper
-
End Style: PEX x Copper
-
Length: 2-3/8 in
-
Nominal Size: 3/4 in
-
Connection Size: 3/4 in
-
Connection Type: PEX x Copper
-
Sub Brand: ProPEX
-
Material Specifications: ASTM F877, ASTM F1960
-
Operating Temp Range: 0-200 F
-
Lead Free: Yes
-
End Size 1 [inch|mm]: 3/4"
-
End Size 2 [inch|mm]: 3/4"
-
End Type 1: ProPEX
-
End Type 2: Copper Press
-
Material Gasket: EPDM
-
Operating Pressure 1 [PSI]: 160 psi
-
Operating Pressure 2 [PSI]: 100 psi
-
Operating Pressure 3 [PSI]: 80 psi
-
Operating Temperature 1 [
0
F]: 73
0
F
-
Operating Temperature 2 [
0
F]: 180
0
F
-
Operating Temperature 3 [
0
F]: 200
0
F
-
Cv: 13.4
-
Width: 0.886 IN
-
Material Standard: ASME B16.51, ASTM F877, ASTM F1960
-
Industry Standards: UPC, IBC, IRC, IPC, NPC of Canada, UMC, NSPC, IMC, IAPMO PS 117, NSF372, ICC-ES LC1002, CSA B137.5, NSF-61, NSF-14, IAPMO-ES, cNSFus-pwG, U.P.Code, ICC-PMG-1412
-
Other Physical Dimension: 1.236 IN Hex Size
-
Dimensions: 2.4 in L x 1.1 in W x 1.1 in H
-
Fitting Type: Adapter
-
Material Construction: Brass
-
Country of Origin: US
-
Fitting/Connector Type: Adapter
-
Standards/Approvals/Certifications: ASME B16.51
IAPMO PS 117
NSF-372
ASTM F877
ICC-ES LC1002
ASTM F1960
CSA B137.5
NSF-61
NSF-14
IAPMO-ES
cNSFus-pw-G
U.P.Code
ICC-PMG-1412
