Product Description

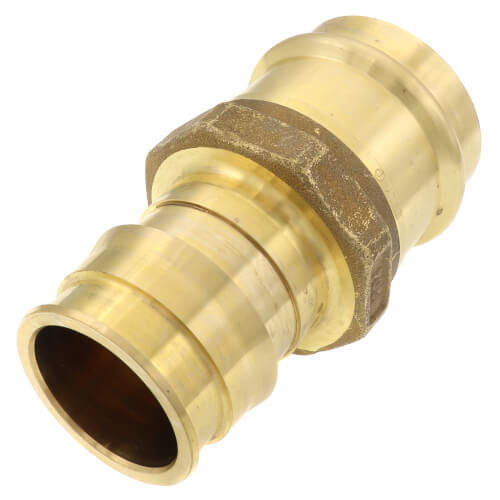

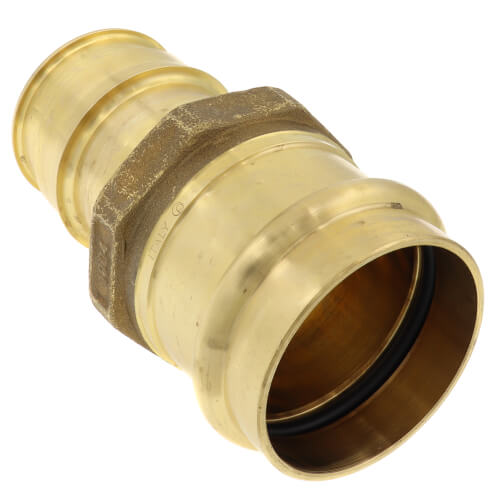

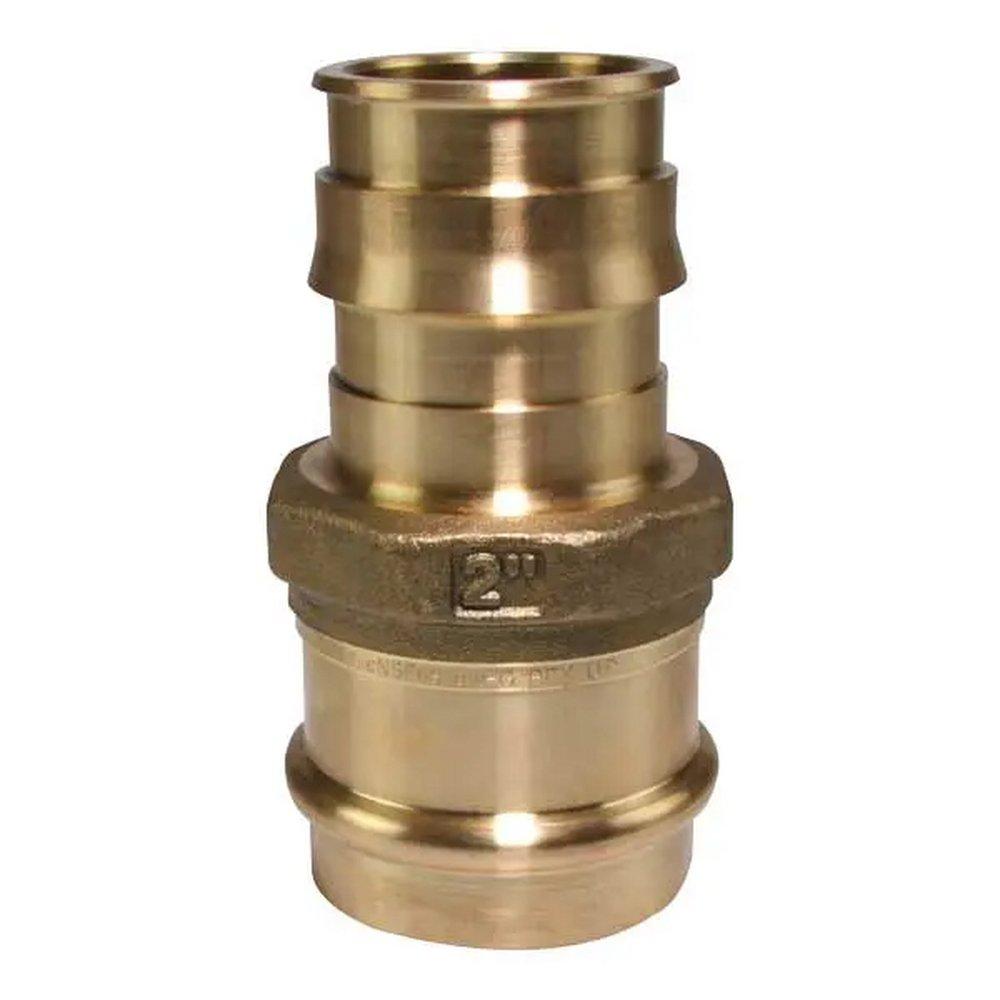

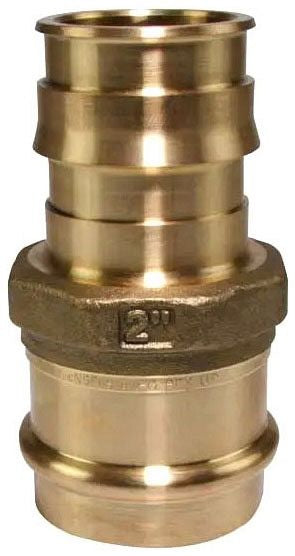

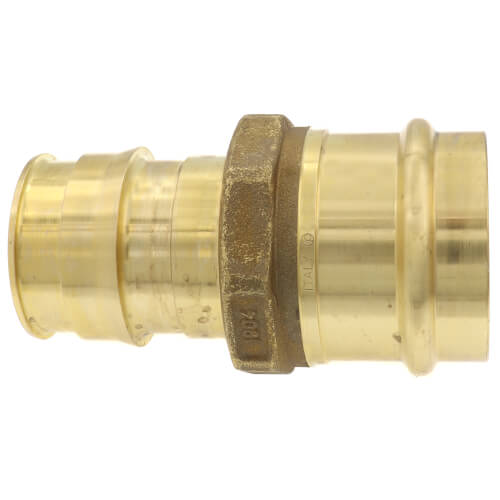

The Uponor LFP4512020 adapter is constructed from lead-free brass and features a 2 x 2 inch PEX x Press connection. It is designed for use in radiant heating and cooling systems, as well as hot and cold potable water systems. This transition adapter offers a pressure rating up to 250 PSI.
- Lead-free brass construction
- 2 inch PEX x Press end connection
- Suitable for hot and cold potable water and hydronic systems
Product Highlights
The Uponor LFP4512020 adapter provides a reliable transition between PEX and copper piping systems, ensuring a secure and leak-free connection.
Product Information
Standard Information
-
Brand: UPONOR
-
Manufacturer Part Number: LFP4512020
Technical Specifications
-
Brand: Uponor
-
Material: Brass
-
Size: 2 x 2 Inch
-
End Connection: PEX x Press
-
Part Number: LFP4512020
-
Application: Hot and Cold Potable Water, PEX-A Plumbing System, Hydronic Heating and Cooling System, Snow and Ice Melting System, Permafrost Protection System
-
Lead-Free: Yes
-
Pressure Rating: 250 psi
-
Type: Transition
-
Material Specification: ASTM F877/F1960
-
Temperature Rating: 200 Deg F
-
Applicable Standard: NSF 14/61/372, ASME B16.51, CSA B137.5, HUD MR 1269, ICC ES LC1002,IPC, NPC (Canada), NSPC, IBC, IRC, IPC, IMC, UPC, UMC, IAPMO PS 117
-
Size A: 2 Inch
-
Size B: 2 Inch
-
Material Grade: UNS C27453
-
Connection Type: PEX
-
Series: ProPEX
-
Length: 4.645 in
-
Nominal Size: 2 x 2 in
-
Fitting Material: Brass
-
Fitting Size: 2 in
-
Operating Temp Range: 0°-200°F
-
ProPEX x Copper Press Connection: Yes
-
End Type 1: ProPEX
-
End Type 2: Copper Press
-
Material Gasket: EPDM
-
Prop 65 label required?: Yes
-
End Size 1 [inch|mm]: 2"
-
End Size 2 [inch|mm]: 2"
-
Cv: 83.6
-
Material group: LF Brass
-
ASME: ASME B16.51
-
ASTM: ASTM F-877, ASTM F-1960
-
CSA Certified: CSA B137.5
-
Collection: ProPEX®
-
End Connection 1: PEX Expansion
-
End Connection 2: Copper Press
-
End Connections: PEX Expansion x Press
-
Fitting Size 1: 2 in
-
Fitting Size 2: 2 in
-
Fitting Sizes: 2 in
-
Fitting Type: Adapter
-
IAPMO Listed: Yes
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
Maximum Temperature: 200
-
Minimum Temperature: 73
-
NSF: NSF 14, NSF 61, NSF 372
-
NSF Certified: Yes
-
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
UL Listed: No
-
UPC: 673372545594
-
Weight: 1.30 lb
-
MFR Part No: LFP4512020
-
Warranty Length: 25 Years
-
Standard Approvals: ASME B16.51, IAPMO PS 117, NSF-372, ASTM F877, ICC-ES LC1002, ASTM F1960, CSA B137.5, NSF-61, NSF-14, IAPMO-ES, cNSFus-pw-G, U.P.Code, ICC-PMG-1412
-
Dimensions: 2.138 in H x 2.717 in W
-
Domestic/Import: Domestic
-
Description: Propex Lf Brass Copper Press Adapter, 2" Pex X 2" Copper
-
Manufacturer: Uponor
-
Model #: LF
-
PDW MFR CAT: LFP4512020
-
Pittman #: 207155
