Product Description

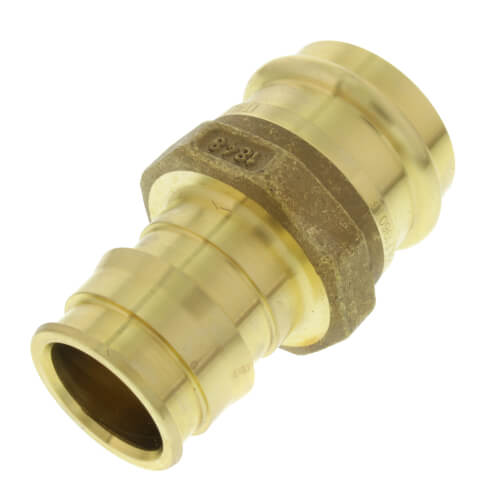

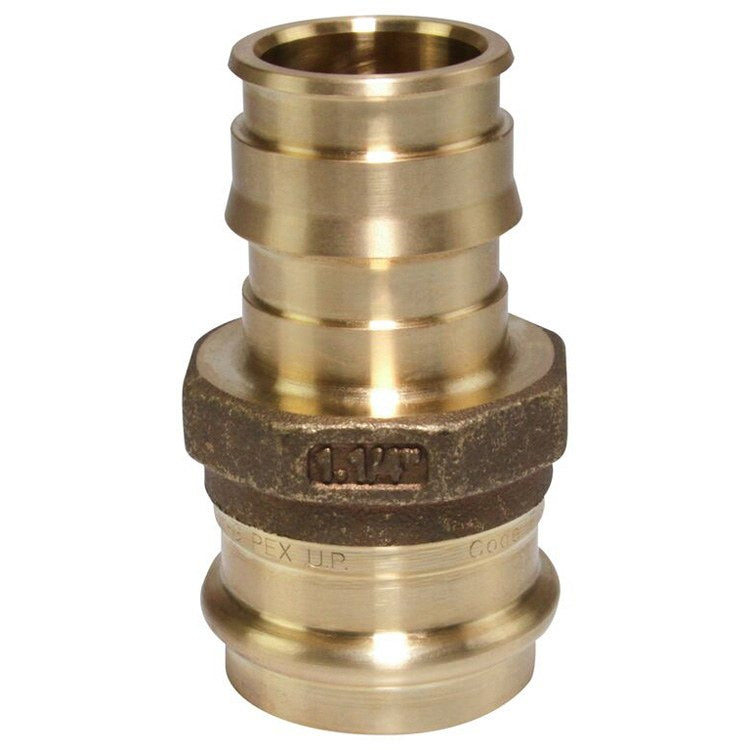

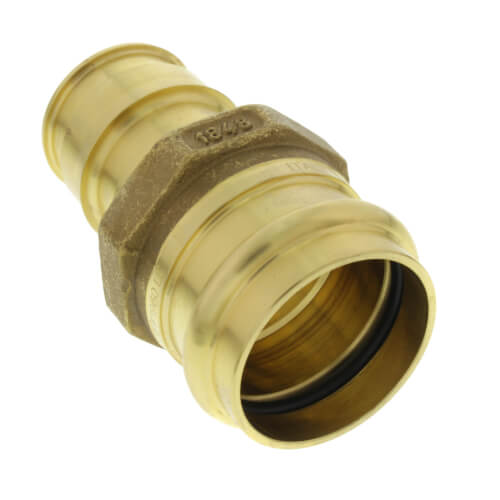

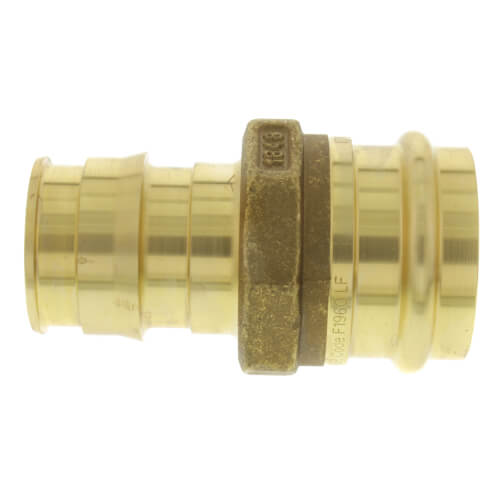

The Uponor LFP4511313 adapter is a lead-free brass fitting designed to transition between PEX and copper pipe. This adapter is suitable for radiant heating and cooling systems, as well as hot and cold potable water applications. It features a PEX x Press end connection and is made from UNS C27453 brass.
- Lead-free brass construction
- Features PEX x Press end connections
- Suitable for hot and cold potable water and hydronic systems
Product Highlights
This Uponor adapter provides a reliable transition between PEX and copper piping systems, ensuring a secure and leak-free connection.
Product Information
Standard Information
-
Brand: UPONOR
-
Manufacturer Part Number: LFP4511313
Technical Specifications
-
Brand: Uponor
-
Material: Lead Free Brass
-
Size: 1-1/4x1-1/4IN
-
End Connection: PEX x Press
-
Part Number: LFP4511313
-
Application: Radiant Heating and Cooling Systems
-
Type: Transition
-
Size A: 1-1/4 Inch
-
Size B: 1-1/4 Inch
-
Material Specification: ASTM F877/F1960
-
Pressure Rating: 250 psi
-
Temperature Rating: 200 Deg F
-
Applicable Standard: NSF 14/61/372, ASME B16.51, CSA B137.5, HUD MR 1269, ICC ES LC1002,IPC, NPC (Canada), NSPC, IBC, IRC, IPC, IMC, UPC, UMC, IAPMO PS 117
-
Lead-Free: True
-
Connection Type: PEX x Copper Press
-
Material Grade: UNS C27453
-
End Style: PEX x Copper
-
Length: 3.29 in
-
Mfg Standards/Approvals: ASTM F1960|ASTM F877|CSA B137.5|ASME B16.51|ICC-ES LC1002|IAPMO PS 117
-
Nominal Size: 1-1/4 in
-
Operating Temp Range: 0°-200°F
-
Connection Size 1: 1-1/4 in
-
Connection Size 2: 1-1/4 in
-
Connection Type 1: PEX
-
Connection Type 2: Press
-
Tube OD: 1-3/8 in
-
Fitting Type: Adapter
-
End Type 1: ProPEX
-
End Type 2: Copper Press
-
Material Gasket: EPDM
-
Prop 65 label required?: Yes
-
End Size 1 [inch|mm]: 1-1/4"
-
End Size 2 [inch|mm]: 1-1/4"
-
Cv: 34
-
Material group: LF Brass
-
A [inch]: 3.051 inch
-
B [inch]: 0.583 inch
-
C [inch]: 1.024 inch
-
D [inch]: 1.39 inch
-
E [inch]: 1.89 inch
-
F [inch]: 0.76 inch
-
G [inch]: 1.445 inch
-
A [frac]: 3 3/64 inch
-
B [frac]: 37/64 inch
-
C [frac]: 1 1/32 inch
-
D [frac]: 1 25/64 inch
-
E [frac]: 1 57/64 inch
-
F [frac]: 49/64 inch
-
G [frac]: 1 7/16 inch
