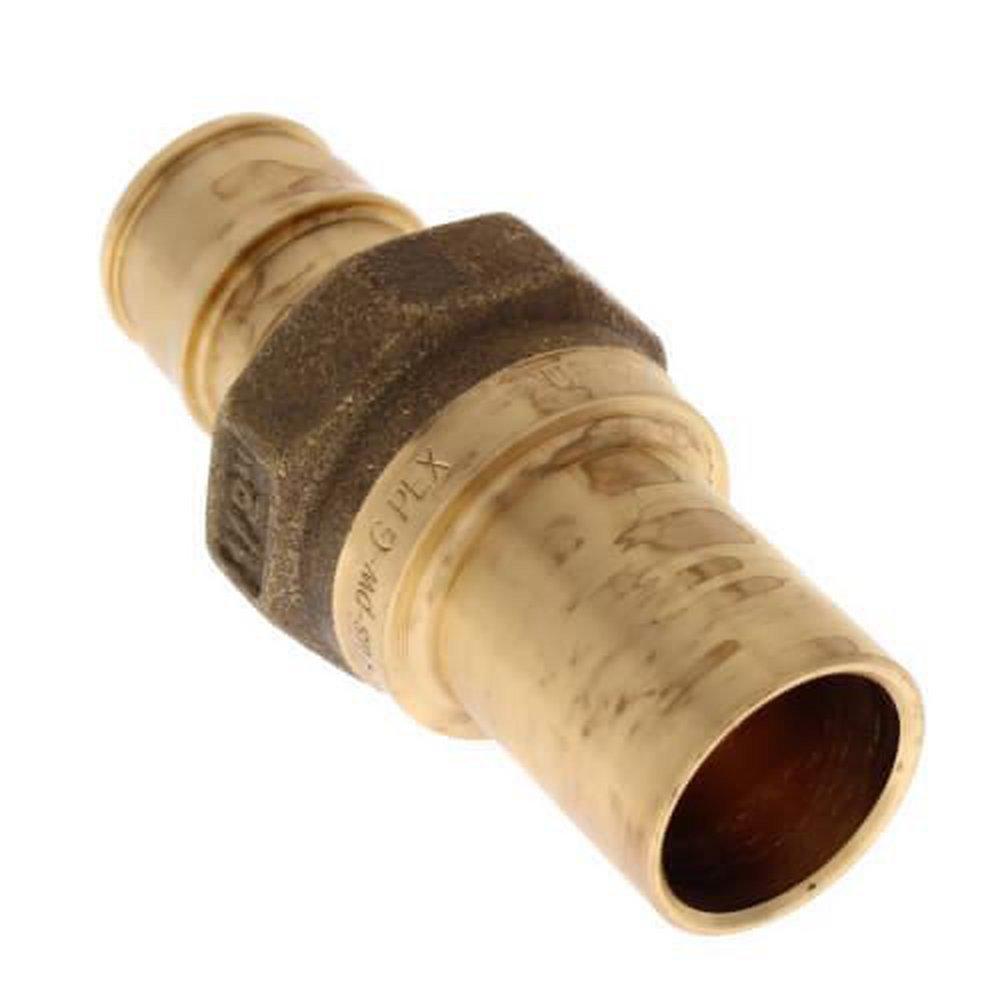

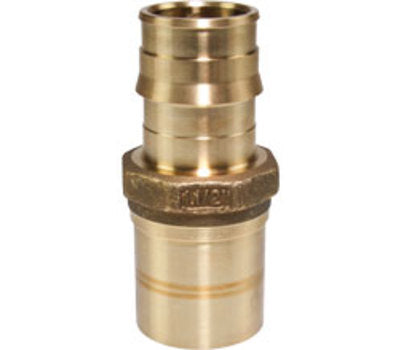

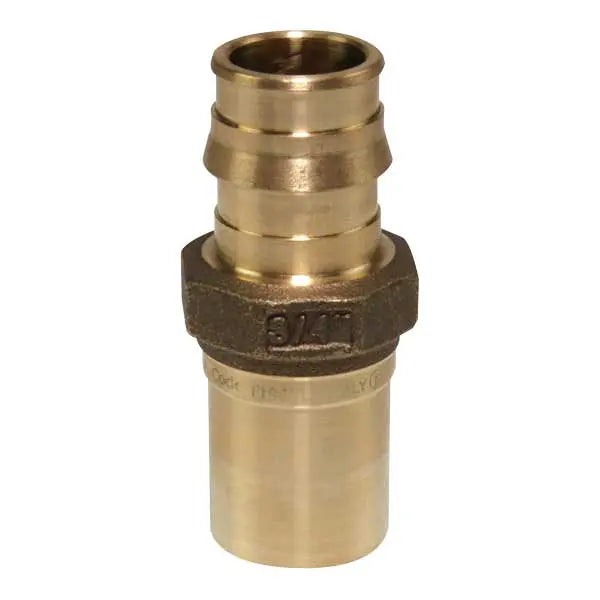

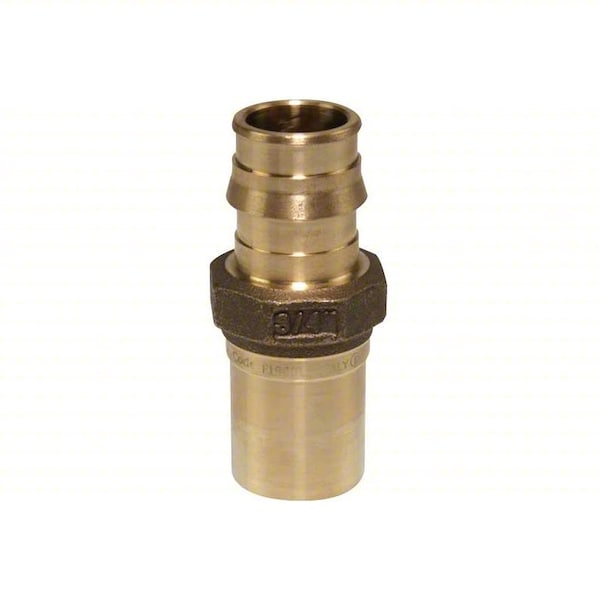

Uponor LFP4507575 ProPEX 3/4 in. Brass PEX Expansion x Male Sweat Adapter

Product Description

The UPONOR LFP4507575 ProPEX lead-free brass copper press adapters transition copper pipe to Uponor PEX. These adapters are approved for use in hot and cold potable water and hydronic heating and cooling systems, connecting Uponor PEX to copper press piping systems. For use with ASTM B88 Type K, L or M copper pipe and ASME B16.51 copper press fittings.

• Lead-free
• ProPEX tool and copper press tool are required
• ProPEX rings sold separately

Product Highlights

The UPONOR LFP4507575 adapter ensures secure connections in plumbing and heating systems, offering a reliable transition between PEX and copper.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: LFP4507575
• Country of Origin: Import

Technical Specifications

• Material: Brass
• Series: ProPEX
• Application: Hot and Cold Potable Water and Hydronic Heating and Cooling Systems
• Selling Size: 3/4|in
• Catalog Number: LFP4507575
• Material Grade: UNS C27453
• Connection Type: PEX
• Specifications Met: ASTM F1960, ASTM F877, CSA B137.5, ASME B16.51, ICC ES LC1002, IAPMO PS 117, NSF 14 and 61, NSF 372, ICC PMG-1006, ICC PMG-1412, HUD MR 1269
• Maximum Pressure Rating: 80|PSI
• Maximum Temperature Rating: +200|deg F
• Fitting Size: 3/4 inch x 3/4 inch
• Fitting Type: Adapter
• End Style: PEX x Copper
• Length: 2.402 in
• Nominal Size: 3/4 in
• Pressure Rating: 250 psi
• Temperature Rating: 0 to 200 deg F
• Type: Press
• Domestic/Import: Import
• End Size 1 [inch|mm]: 3/4"
• End Size 2 [inch|mm]: 3/4"
• End Type 1: ProPEX
• End Type 2: Copper Press
• Material Gasket: EPDM
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [":degreeF"]: 73 ":degreeF"
• Operating Temperature 2 [":degreeF"]: 180 ":degreeF"
• Operating Temperature 3 [":degreeF"]: 200 ":degreeF"
• Prop 65 label required?: Yes
• Material group: LF Brass
• Cv: 12.8
• Item: Barbed Fitting Adapter
• Standards: ASME B16.51, ASTM F1960, ASTM F877, CSA B137.5, IAPMO PS 117, ICC-ES LC1002, NSF-14, NSF-372, NSF-61
• Compatible Tube Material: PEX
• Compatible Pipe Material: Copper
• Fitting Side B Connection Type: Sweat Fitting
• Fitting Side A Connection Type: Barbed
• Fitting Material: Brass, Copper
• Operating Temperature - Maximum: 140 Degrees F
• For Media Type: Potable Water
• Fitting Side 2 Connection Type: Press-fit
• O-Ring Material: Rubber
• Operating Temperature - Minimum: 33 Degrees F
• Connector Type: Adapter
• PEX Connection Method: Expansion
• Operating Pressure - Maximum: 80 psi
• Fitting Shape: Straight
• Fitting Side 1 Connection Type: Barbed
• Hex Size: 1 5/64 in
• Barb Size: Standard
• Overall Length: 2 13/32 in
• Fitting Side A Pipe Size: 3/4 in
• Fitting Side B Pipe Size: 3/4 in
• Fitting Side 2 Pipe Size: 3/4 in
• Fitting Side 1 Tube Inner Diameter: 3/4 in
• Manufacturer: Uponor
• Manufacturer Part Number: LFP4507575
