Product Description

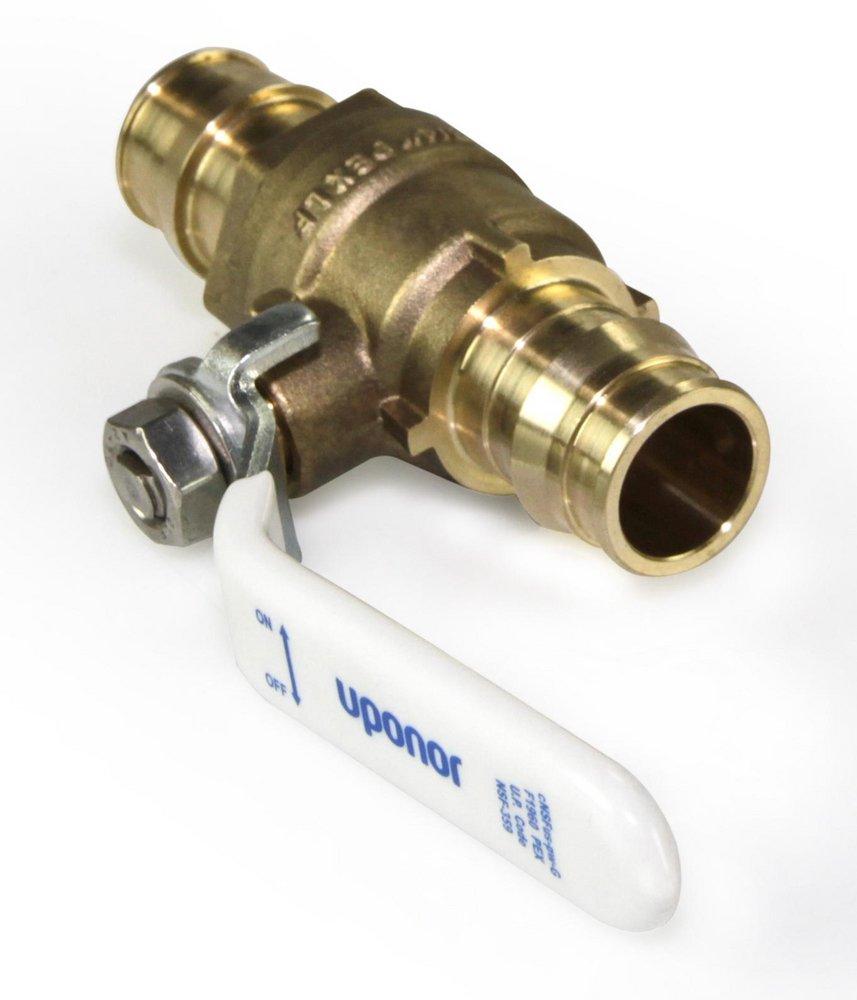

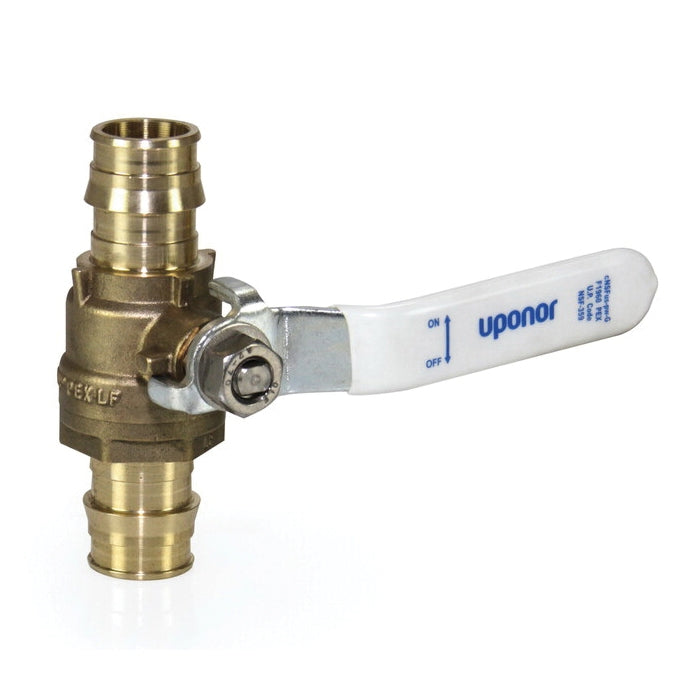

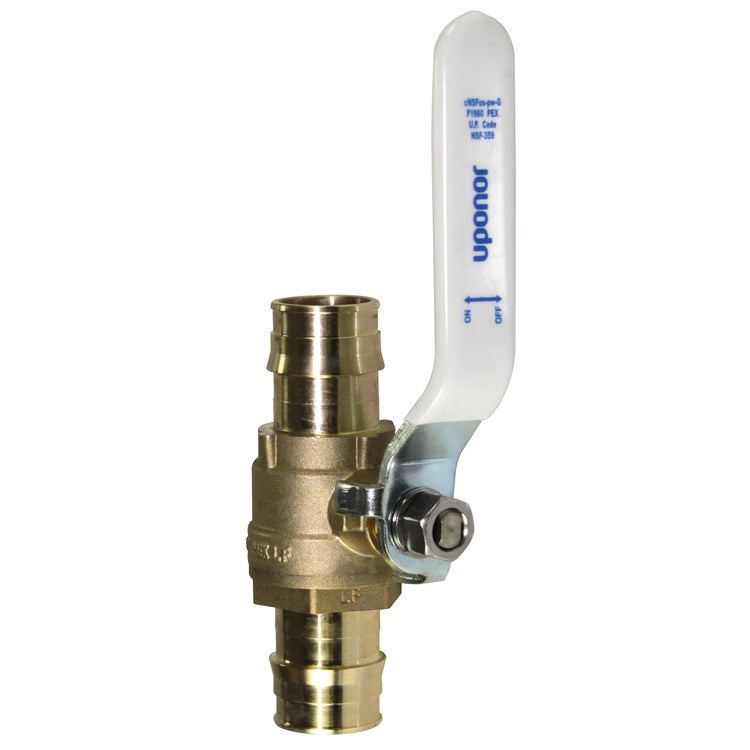

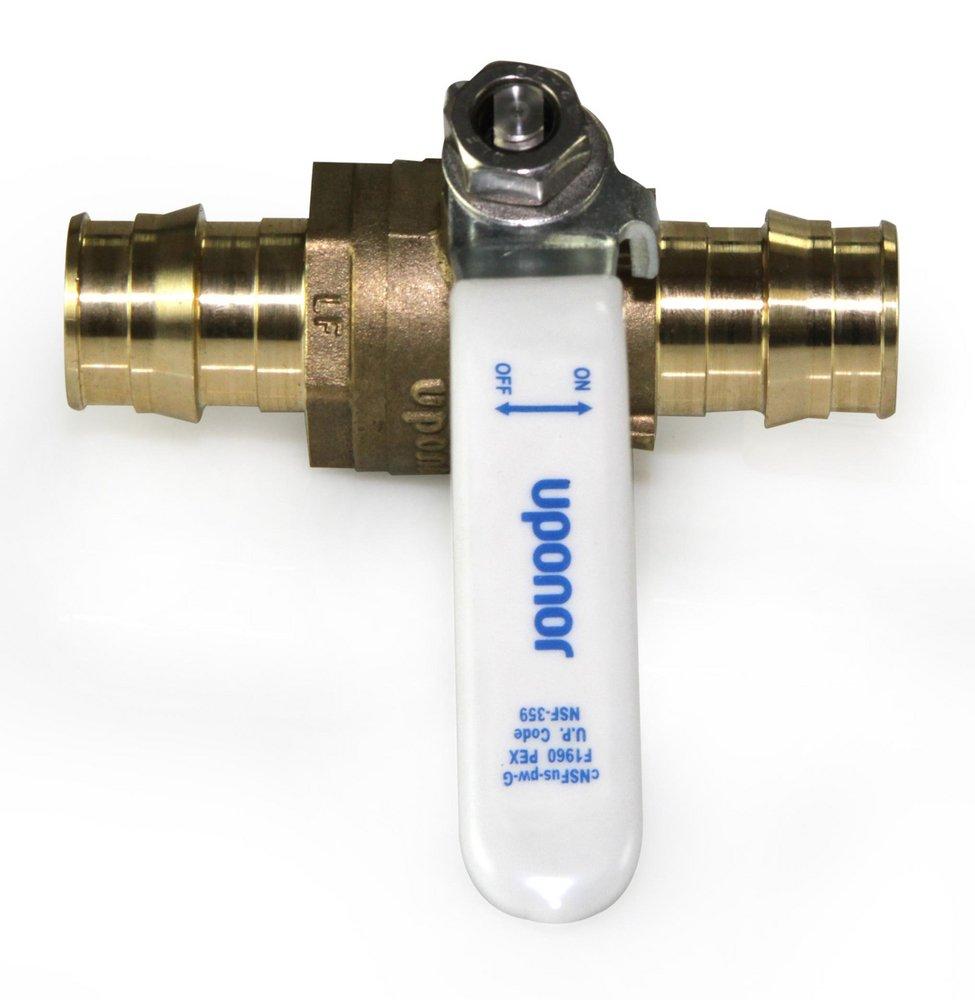

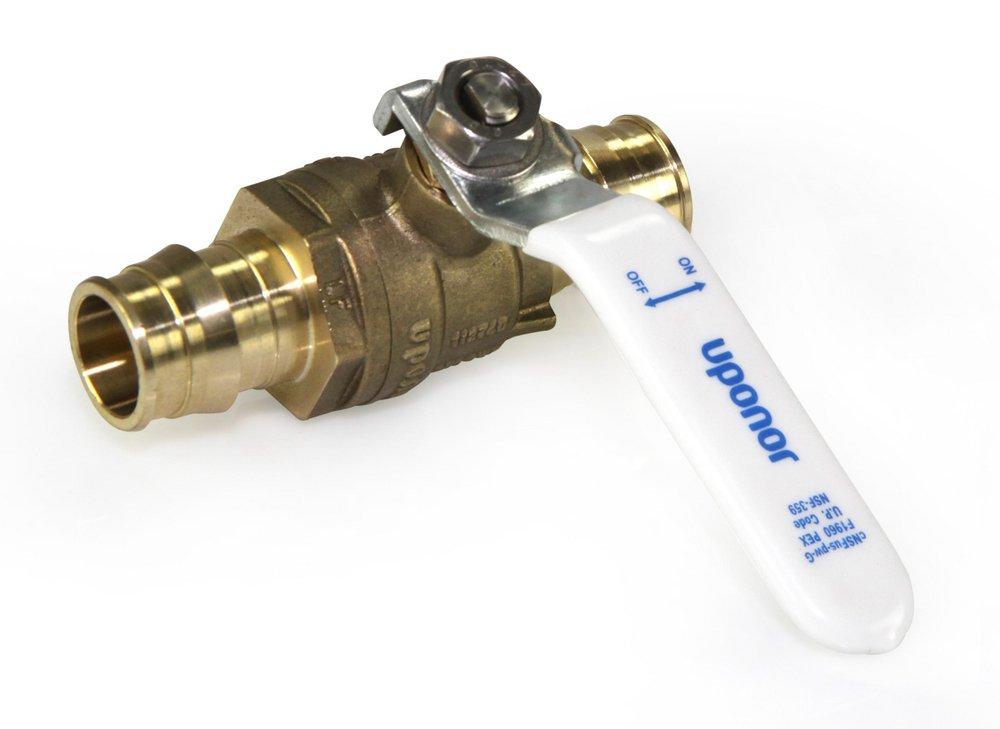

The Uponor LFC4827575SS ProPEX LF Brass Commercial Ball Valve is designed for commercial plumbing and hydronic distribution. This full port ball valve features a stainless-steel ball and stem for enhanced durability and system performance. It is suitable for systems containing up to 50% propylene glycol and eliminates the need for joining chemicals and open flames, promoting worker safety.
- Features a high-quality, lead-free brass valve body.
- Equipped with a stainless-steel ball and stem for greater durability.
- Approved for commercial plumbing and hydronic distribution applications.
Product Highlights
This Uponor ball valve meets IPC, UPC, and IRC building codes and is backed by a five-year warranty. Positive tube stops ensure consistent installations.
Product Information
Standard Information
-
Brand: UPONOR
-
Manufacturer Part Number: LFC4827575SS
Technical Specifications
-
Brand: Uponor
-
Material: Brass
-
Application: Commercial plumbing and hydronic distribution
-
Connection Type: ProPEX
-
Size: 3/4 inch
-
End Connection: PEX x PEX
-
Product Type: Commercial Ball Valve
-
Handle Type: Lever
-
Port Type: Full Port
-
Part Number: LFC4827575SS
-
Pressure: 200PSI
-
Temperature: 200DEG F
-
Category: Valve
-
Finish: Brass
-
Body Material: Brass
-
Stem Material: Stainless Steel
-
Material Standard: ASTM F877, ASTM F1960
-
Lead Free: Yes
-
Industry Standards: UPC, IBC, IRC, IPC, NPC of Canada, UMC, IMC, NSF/ANSI/CAN 372, NSF/ANSI 359, CSA B137.5, NSF/ANSI/CAN 61, NSF/ANSI 14, cNSFus-pw-G, U.P.Code
-
Inlet Center To Top Of Handle: 1.789 IN
-
Width: 5.151 IN
-
Height: 2.423 IN
-
Ball Material: Stainless Steel
-
End Style: ProPEX®
-
Nominal Size: 3/4 in
-
Trim Material: Stainless Steel
-
Suitable Media: Air, Oil, Water
-
Housing Material: Brass
-
Valve Operation: Manual
-
Fitting System Compatibility: Expansion PEX
-
Standards Met: ASTM F1960, ASTM F877
-
Tubing Compatibility: PEX
-
Warranty: 5 Year
-
Connection Method: PEX
-
End Size 1 [inch|mm]: 3/4"
-
End Size 2 [inch|mm]: 3/4"
-
End Type 1: ProPEX
-
End Type 2: ProPEX
-
Cold working pressure (CWP) [psi]: 250 psi
-
Operating Pressure 1 [PSI]: 200 psi
-
Operating Temperature 1 [°F]: 200 °F
-
Cv: 17
-
Cold working pressure (CWP) [bar]: 17.237 bar
-
Operating Pressure 1 [bar]: 13.8 bar
-
Operating Temperature 1 [°C]: 93 °C
-
PEX Size: 3/4"
-
Flow Capacity (Cv): 17
-
Max Pressure (PSI): 200
-
Max Temp (F): 200°F
