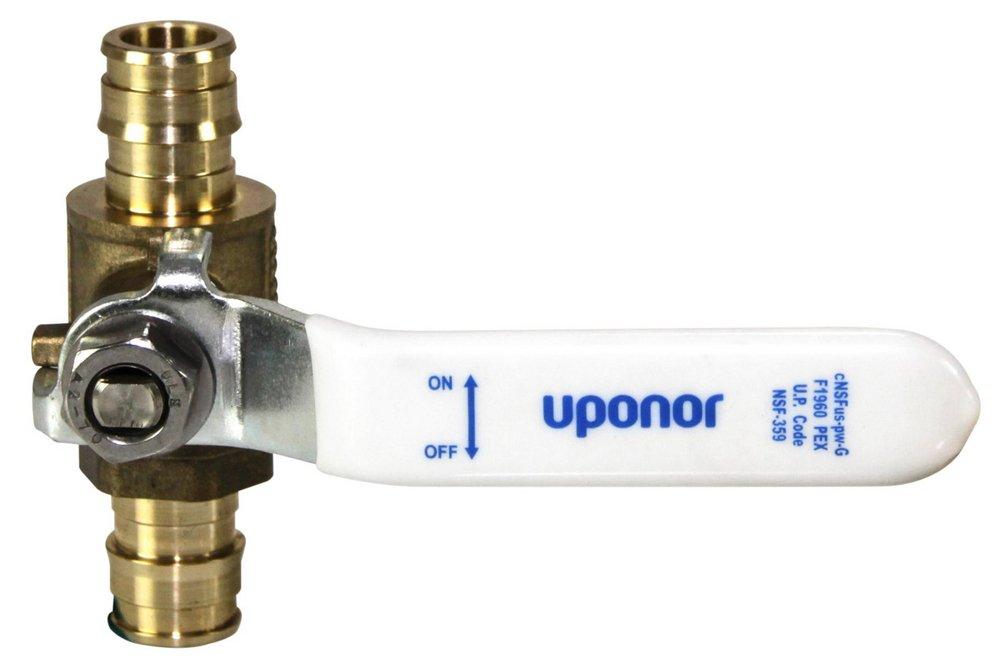

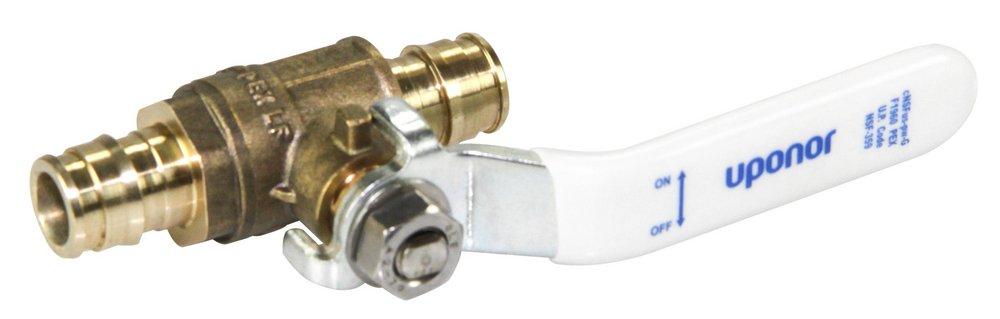

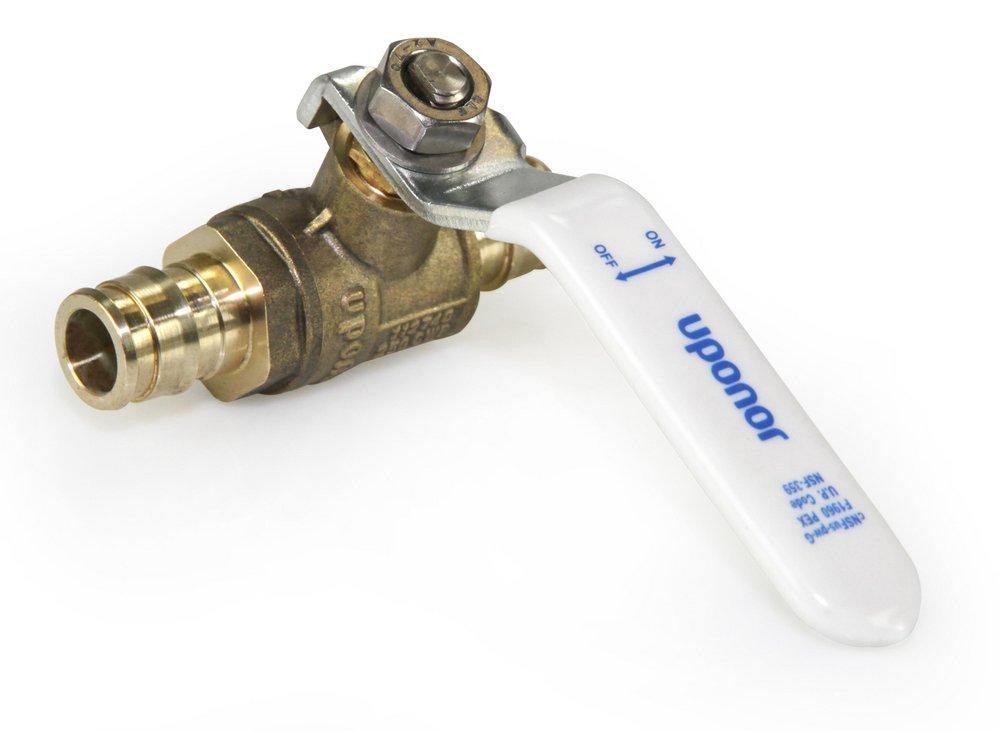

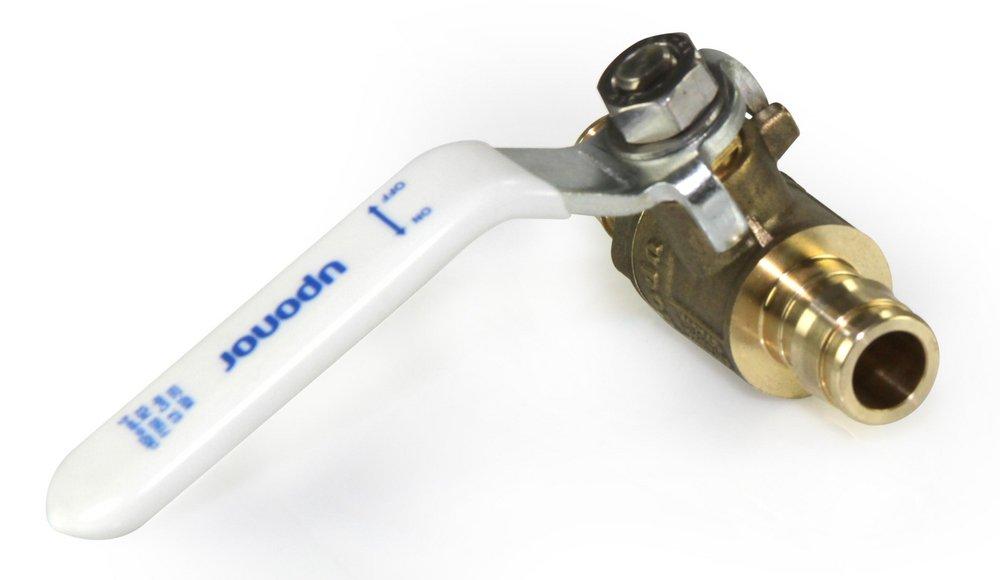

Uponor LFC4825050SS ProPEX LF Brass Commercial Ball Valve (full port) SS Ball and Stem 1/2 PEX x 1/2 PEX

Product Description

The Uponor LFC4825050SS is a ProPEX lead-free brass commercial full port ball valve designed for plumbing and hydronic applications. This valve features a stainless steel ball and stem for increased durability and performance.

• Lead-free brass body
• Stainless steel ball and stem
• Acceptable for systems using up to fifty percent propylene glycol

Product Highlights

This valve eliminates the need for joining chemicals and open flames at the job site, enhancing safety. The blow-out proof stem adds confidence during installation. Stem extension kits are available for insulated piping applications.

Product Information

Standard Information

• Brand: Uponor
• MPN: LFC4825050SS

Technical Specifications

• Nominal Size: 1/2 in
• Body Material: Brass
• Ball Material: Stainless Steel
• Connection Type: PEX
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees F
• Other Physical Dimension: 1.679 in Inlet Center to Top of Handle
