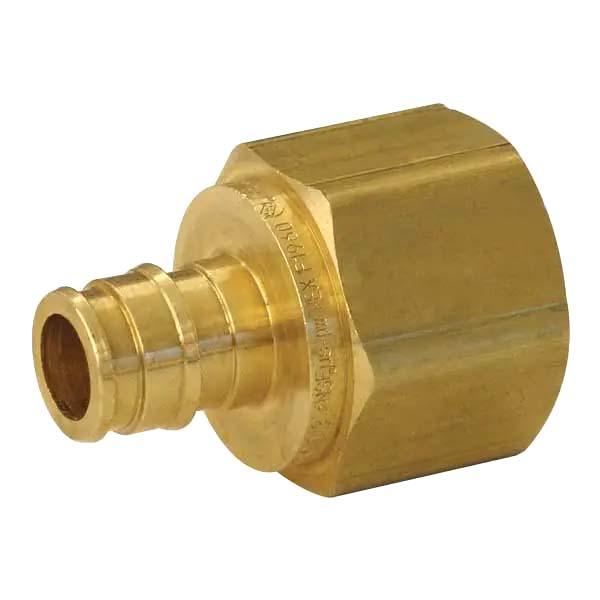

Uponor lf4571010 Propex 1 Inch Pex X Fpt Female Adapter 10-pack

Product Description

The UPONOR lf4571010 is a ProPEX lead-free brass female threaded adapter designed to connect Uponor PEX tubing to female NPT threads in plumbing and hydronic systems. Manufactured from C69300 lead-free brass and built to ASTM F877/F1960 standards, this adapter features the ProPEX expansion fitting system on one end for use with hePEX plus or AquaPEX tubing, and a female threaded connection on the other. The ProPEX method requires no torches, glues, solvents, or gauges, making installation faster and safer. Each package includes 10 adapters. The fitting carries the NSF us-pw-G marking, confirming lead-free compliance with state legislation and the U.S. Safe Drinking Water Act.

This adapter is suited for residential and commercial applications including hot and cold domestic potable water systems and radiant heating and cooling systems. It is also listed for snow and ice melting, permafrost protection, turf conditioning, and fire safety systems. Licensed plumbers install this fitting as part of a complete lead-free solution from the main inlet through to fixture connections, pairing it with Uponor PEX tubing and the ProPEX Out-of-the-Wall Support System where applicable.

Key Features

• ProPEX expansion fitting system — no torches, glues, solvents, or gauges required
• C69300 lead-free brass construction exceeds U.S. Safe Drinking Water Act requirements
• NSF us-pw-G marked for lead-free compliance with state potable water legislation
• Compatible with hePEX plus and AquaPEX tubing on the PEX end
• Straight adapter configuration in 1 inch PEX x 1 inch female NPT
• 25-year limited warranty
• Packaged in quantities of 10

Compatibility

Designed for use with Uponor hePEX plus and AquaPEX tubing via the ProPEX expansion fitting system. Listed under ANSI/NSF 14/61, CAN/CSA B137.5, IPC, UPC, NSPC, NPC, HUD MR 1269, ICC ESR 1099, UL 1821, and ULC/ORD C199P for use in potable water, plumbing, radiant heating and cooling, snow and ice melting, permafrost protection, turf conditioning, and fire safety systems.

Installation Notes

Installation is performed by a licensed plumber. Shut off the water supply and relieve system pressure before beginning work. The ProPEX end requires an expansion tool sized for 1 inch tubing — no open flame, solvent cement, or press tooling is needed. Verify compliance with local code requirements under IPC, UPC, or applicable regional plumbing code before installation.

Technical Specifications

• Fitting Type: Straight Adapter
• End Connection: PEX x Female Threaded (NPT)
• Size A: 1 inch
• Size B: 1 inch
• Material: C69300 Lead-Free Brass
• Material Specification: ASTM F877/F1960
• Overall Length: 2.44 inches
• Overall Height: 1.5 inches
• Weight: 0.45 pounds (per fitting)
• Packaging Quantity: 10
• Application: Potable Water, Plumbing, Radiant Heating and Cooling, Snow and Ice Melting, Permafrost Protection, Turf Conditioning, Fire Safety
• Certifications: ANSI/NSF 14/61, CAN/CSA B137.5, IPC, UPC, NSPC, NPC, HUD MR 1269, ICC ESR 1099, UL 1821, ULC/ORD C199P, NSF us-pw-G
• Warranty: 25-Year Limited

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: lf4571010
