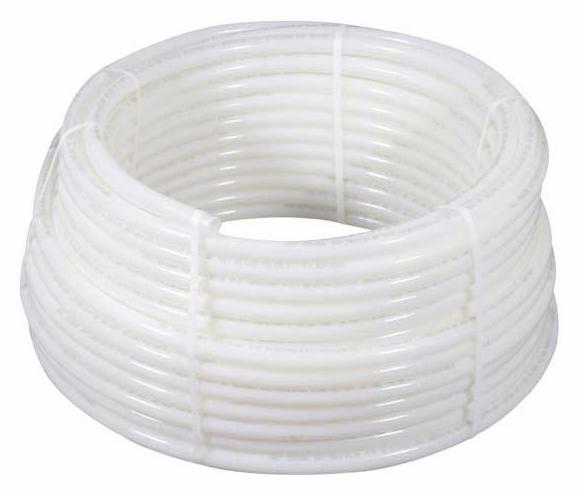

UPONOR Uponor H1250500 HelioPEX X2 PEX Tubing 1/2 in x 300 ft Coil
UPONOR Uponor H1250500 HelioPEX X2 PEX Tubing 1/2 in x 300 ft Coil

Uponor H1250500 HelioPEX X2 PEX Tubing 1/2 in x 300 ft Coil

Brand: UPONOR
SKU: H1250500
Availability: In Stock

Ships same day if ordered by 12 pm
$230.43
$230.43
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Uponor H1250500 is helioPEX X2 oxygen-barrier PEX tubing supplied as a 300 ft coil with nominal 1/2 in sizing (0.625 in outside diameter, 0.475 in inside diameter) and SDR 9 construction. It is designed for residential radiant heating and hydronic plumbing, offering flexibility and kink repairability. The coil measures 19.7 in inner diameter by 32 in outer diameter and meets multiple ASTM and industry standards.

  • Oxygen-barrier helioPEX X2 PEX tubing, SDR 9; nominal 1/2 in (0.625 in OD, 0.475 in ID), 300 ft coil.
  • Intended for residential radiant heating and hydronic plumbing; rated operating pressures up to 160 psi and temperatures up to 200 °F.
  • Coil dimensions 19.7 in inner diameter × 32 in outer diameter; thermal conductivity 0.22 BTU·in/ft²·hr·°F; linear expansion 1.1 in/10 °F/100 ft.

Product Highlights

helioPEX X2 oxygen-barrier PEX tubing, 1/2 in × 300 ft coil, SDR 9, meets ASTM F877/ASTM F1960/ASTM E814 and multiple industry listings.

Product Information

Standard Information

  • Brand: UPONOR
  • Manufacturer Part Number: H1250500
Technical Specifications
Brand
Uponor
Manufacturer Part Number
H1250500
Series
helioPEX X2
Product Type
PEX tubing (coil)
Nominal Size
1/2 in
Outside Diameter
0.625 in
Inside Diameter
0.475 in
Length
300 ft
Schedule
SDR 9
Material
Crosslinked polyethylene (PEX)
Oxygen Barrier
Yes (helioPEX X2)
Coil Inner Diameter
19.7 in
Coil Outer Diameter
32 in
Coil Width
4 in
Weight
16.53 lbs (7.498 kg)
Thermal Conductivity
0.22 BTU·in/ft²·hr·°F (≈0.0317 W/m·K)
Linear Expansion Rate
1.1 in / 10 °F / 100 ft
Pipe Density
0.936 g/cm³ (≈58.4 lb/ft³)
Operating Pressure
160 psi (11 bar); 100 psi (6.9 bar); 80 psi (5.5 bar)
Operating Temperature
up to 200 °F (93 °C)
Material Standards
ASTM F877; ASTM F1960; ASTM E814/ULC S115; ASTM E84
Industry Standards and Listings
IRC; NBC of Canada; UFGS; UMC; USEHC; IMC; ULC S102.2; CSA B137.5; CSA B214; ULC S101; cNSFus-rfh; CCMC; PPI TR-4; UL 2846; cQAIus P321; NSF/ANSI 14
Listings
CCMC; PPI TR-4; cQAIus P321; ASTM E84/ULC S102.2; UL 2846; cNSFus-rfh
Package Type
Coil
UPC
673372442275
