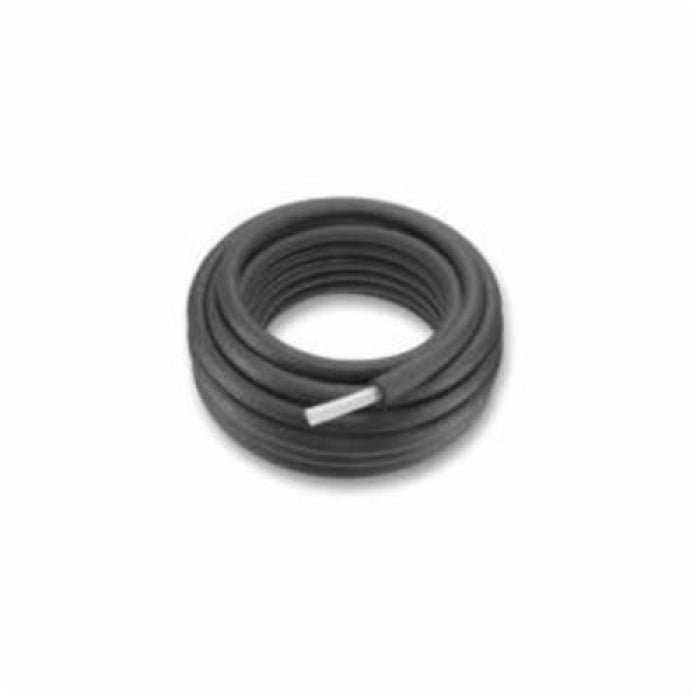

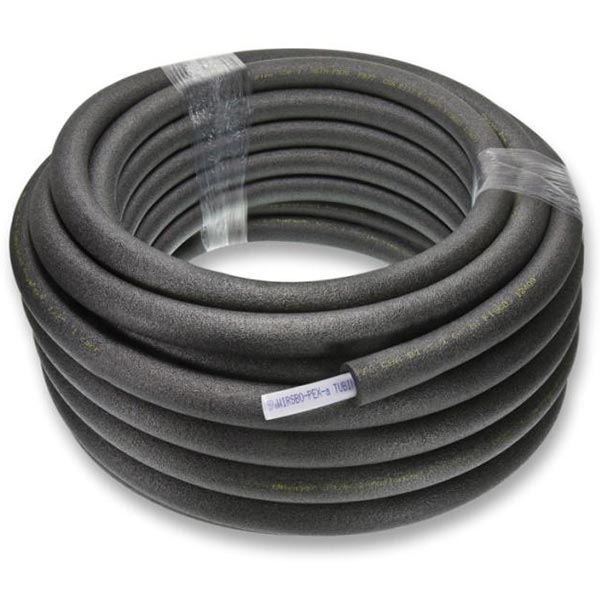

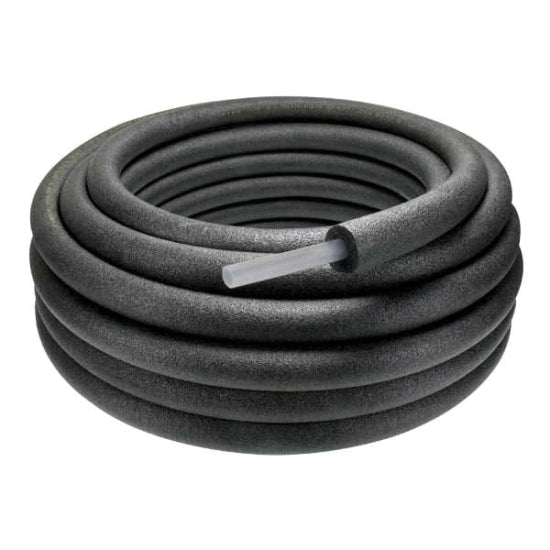

Uponor F6041000 Aquapex Pre-Insulated Coil 1 in Nominal, 100 ft Coil

Product Description

The Uponor F6041000 AquaPEX Pre-Insulated Coil features cross linked polyethylene PEX-A engel method tubing encased in 1 in PEX-foam insulation PEX 5106. It complies with ASHRAE 90.1-2013 and the 2012 International Energy Conservation Code (IECC). The pipe features manufactured sealed seams that run the entire length of the coil.

• Cross linked polyethylene PEX-A engel method tubing encased in 1 in PEX-foam insulation PEX 5106
• Features manufactured sealed seams that run the entire length of the coil
• Complies with ASHRAE 90.1-2013 and the 2012 International Energy Conservation Code (IECC)

Product Highlights

The AquaPEX pre-insulated coil is ideal for plumbing, fire safety, and radiant heating and cooling systems. It is available in 1/2 to 2 in configurations with insulation.

Product Information

Standard Information

• Brand: Uponor
• Manufacturer Part Number: F6041000

Technical Specifications

• Application: For Uponor Plumbing System, AquaSAFE Fire Safety System, Radiant Heating and Cooling System
• Insulation: 1/2 in
• Length: 100 ft Coil
• Material: Polyethylene
• Mfg Standards/Approvals: ASTM F876/F877/F1960/F2023|CSA B137.5|ANSI/NSF 14/61
• Nominal Size: 1 in
• Temperature Rating: 73.4 to 200 deg F
• Type: Pre-Insulated
• Working Pressure: 80 to 160 psi
• Sub Brand: AquaPEX
• Item Name: PEX Tubing With 1/2 IN Insulation
• Outside Diameter: 1.125 IN
• Inside Diameter: 0.862 IN
• Schedule: SDR 9
• Material Standard: ASTM F1960, ASTM F876, ASTM F2023, ASTM E814/ULC S115, ASTM F877
• Industry Standards: IMC, UPC, IBC, IRC, NBC of Canada, IPC, UFGS, NPC of Canada, UMC, NSPC, CSA B137.5, CSA B214, NSF61, ULC S101, NSF-14, IAPMO-ES, ICC-ES-PMG, CCMC, PPI TR-4, CSA, UL, U.P.Code, cQAIus P321, UL 1821, cNSFus-pw-fs
• Other Physical Dimension: 19 IN Inner Diameter Coil, 31 IN Outer Diameter Coil
• Package Type: Coil
• Manufacturer: Uponor
• PDW MFR CAT: F6041000
• Pittman #: 225486
• Outside Diameter Service Pipe: 2.125 inch
• Inner diameter coil [inch]: 19 inch
• Outer diameter coil [inch]: 31 inch
• Coil width [inch]: 12.5 inch
• Inner diameter pipe [inch]: 0.862 inch
• Outer diameter pipe [inch]: 2.125 inch
• Inner diameter Service Pipe [in]: 0.862 inch
• Heat loss at dt=70 F [BTU/hr/ft]: 10.6 btu/hr/ft
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [ F]: 73 F
• Operating Temperature 2 [ F]: 180 F
• Operating Temperature 3 [ F]: 200 F
• Material Service Pipe: Crosslinked polyethylene (PEX-a) tubing; SDR-9
• Thermal conductivity pipe [BTUin/ft hrF ]: 0.22 btuin/ft hrf
• Material Insulation: Closed-cell foam
• Material group: PEX
• Linear expansion rate [inch/10 F/100ft]: 1.1 inch/10 f/100ft
• Pipe density [lb/ft ]: 0.0584 lb/ft
• R value: 3.4
• Inner diameter coil [mm]: 482.6 mm
• Outer diameter coil [mm]: 787.4 mm
• Coil width [mm]: 317.5 mm
• Inner diameter pipe [mm]: 21.9 mm
• Outer diameter pipe [mm]: 53.98 mm
• Inner diameter Service Pipe [mm]: 21.9 mm
• Outer diameter Service Pipe [mm]: 28.58 mm
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [ C]: 23 C
• Operating Temperature 2 [ C]: 82 C
• Operating Temperature 3 [ C]: 93 C
• Thermal Conductivity pipe [W/mK]: 0.0317 (PEX) W/mk
• Linear expansion rate [mm/5.56 C/30.48m]: 27.94 mm/5.56 c/30.48m
• Pipe density [g/cm ]: 0.936 (PEX) g/cm
• Heat loss at dt=21 C [W/m]: 10.192 W/m
