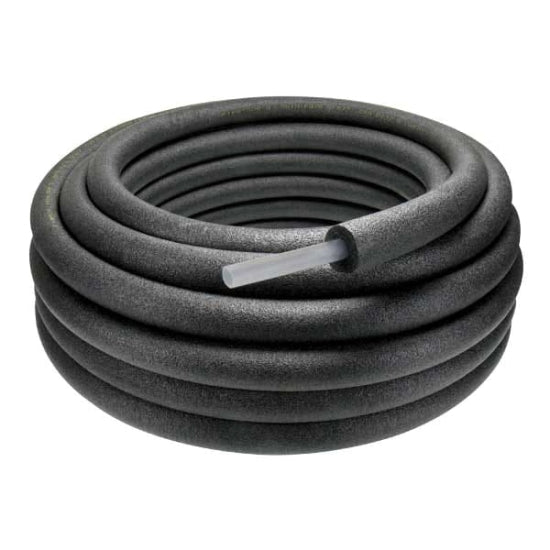

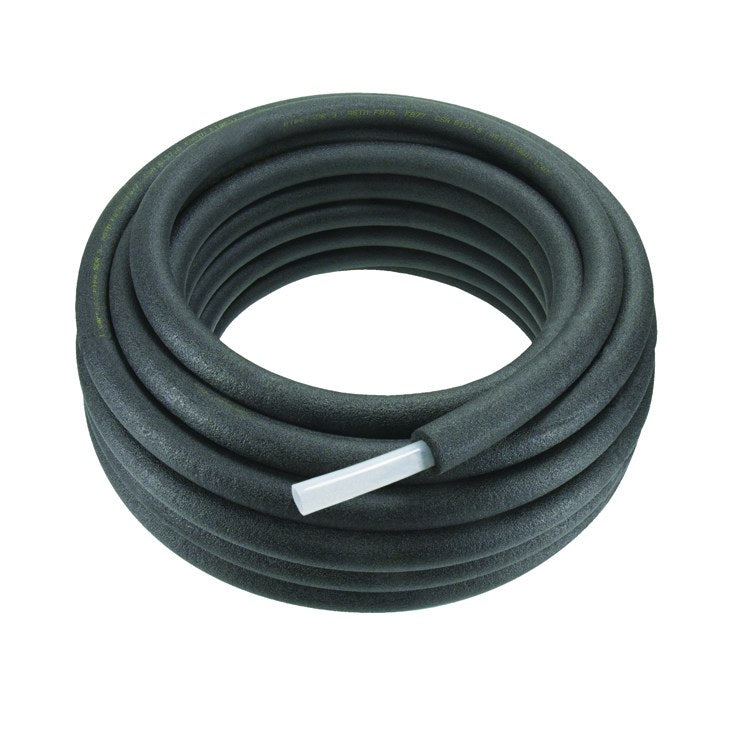

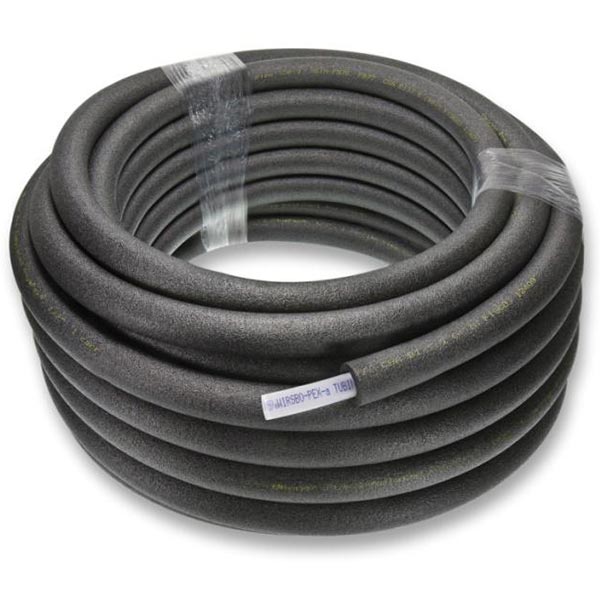

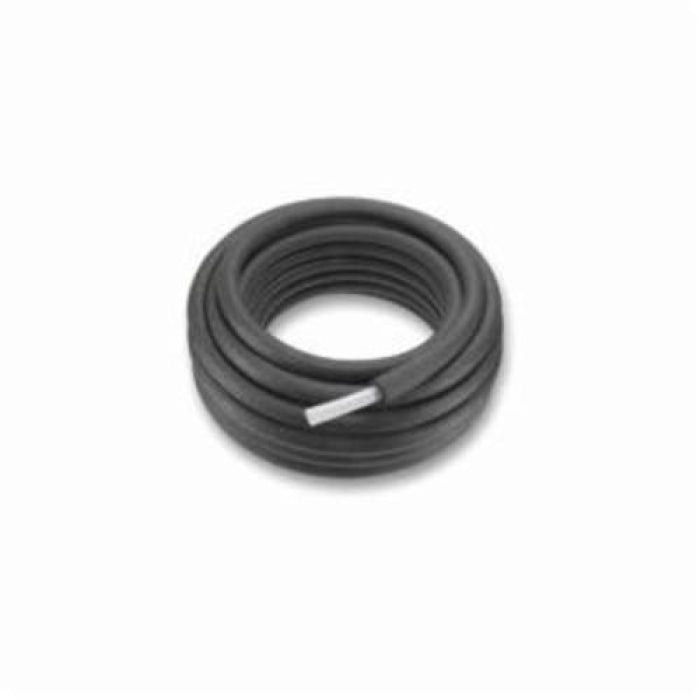

Uponor F6040750 tubing pre-insulated AquaPEX 3/4 inch x 100 foot coil

Product Description

The Uponor F6040750 is a pre-insulated AquaPEX tubing with 1/2 inch insulation, 3/4 inch size, and 100 foot coil length. Constructed from cross-linked polyethylene, this tubing is suitable for radiant heating and cooling systems, as well as hot and cold domestic potable water systems. It complies with ASHRAE 90.1-2013 and the 2012 IECC.

• Pre-Insulated
• AquaPEX material
• Suitable for Radiant Heating and Cooling Systems

Product Highlights

Pre-insulated AquaPEX tubing for radiant heating, cooling, and potable water systems. Complies with energy codes.

Product Information

Standard Information

• Brand: Uponor
• Manufacturer Part Number: F6040750

Technical Specifications

• Product Type: Pre-Insulated with 1/2IN Insulation
• Material: AquaPEX
• Size: 3/4IN
• Length: 100FT Coil
• Application: Radiant Heating and Cooling Systems
• Insulation: 1/2 in
• Mfg Standards/Approvals: ASTM F876/F877/F1960/F2023|CSA B137.5|ANSI/NSF 14/61
• Nominal Size: 3/4 in
• Temperature Rating: 73.4 to 200 deg F
• Type: Coil, Pre-Insulated
• Working Pressure: 80 to 160 psi
• Sub Brand: AquaPEX®
• Item Name: PEX Tubing With 1/2 IN Insulation
• Outside Diameter: 2 in
• Inside Diameter: 0.671 IN
• Schedule: SDR 9
• Material Standard: ASTM F1960, ASTM F876, ASTM F2023, ASTM E814/ULC S115, ASTM F877
• Industry Standards: IMC, UPC, IBC, IRC, NBC of Canada, IPC, UFGS, NPC of Canada, UMC, NSPC, CSA B137.5, CSA B214, NSF61, ULC S101, NSF-14, IAPMO-ES, ICC-ES-PMG, CCMC, PPI TR-4, CSA, UL, U.P.Code, cQAIus P321, UL 1821, cNSFus-pw-fs
• Other Physical Dimension: 19 IN Inner Diameter Coil, 32 IN Outer Diameter Coil
• Package Type: Coil
• Manufacturer: Uponor
• Manufacturer #: F6040750
• Application Type: For Uponor Plumbing System, AquaSAFE™ Fire Safety System, Radiant Heating and Cooling System
• Standard Approvals: ASTM F876/F877/F1960/F2023, CSA B137.5, ANSI/NSF 14/61
• Thermal Conductivity: 0.250 Btu in/sq ft deg F
• Linear Expansion Rate: 1.1 in per 10 deg F/100 ft
• Inner diameter coil [inch]: 19 inch
• Outer diameter coil [inch]: 32 inch
• Coil width [inch]: 12.5 inch
• Inner diameter pipe [inch]: 0.671 inch
• Outer diameter pipe [inch]: 1.875 inch
• Inner diameter Service Pipe [in]: 0.671 inch
• Outer diameter Service Pipe [in]: 0.875 inch
• Heat loss at dt=70°F [BTU/hr/ft]: 9 btu/hr/ft
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Material Service Pipe: Crosslinked polyethylene (PEX-a) tubing; SDR-9
• Thermal conductivity pipe [BTUin/ft²hrF°]: 0.22 btuin/ft²hrf°
• Material Insulation: Closed-cell foam
• Material group: PEX
• Linear expansion rate [inch/10°F/100ft]: 1.1 inch/10°f/100ft
• Pipe density [lb/ft³]: 0.0584 lb/ft³
• R value: 3.6
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C]: 93 °C
• Thermal Conductivity pipe [W/mK]: 0.0317 (PEX) W/mk
• Linear expansion rate [mm/5.56°C/30.48m]: 27.94 mm/5.56°c/30.48m
• Pipe density [g/cm³]: 0.936 (PEX) g/cm³
• Heat loss at dt=21°C [W/m]: 8.654 W/m
