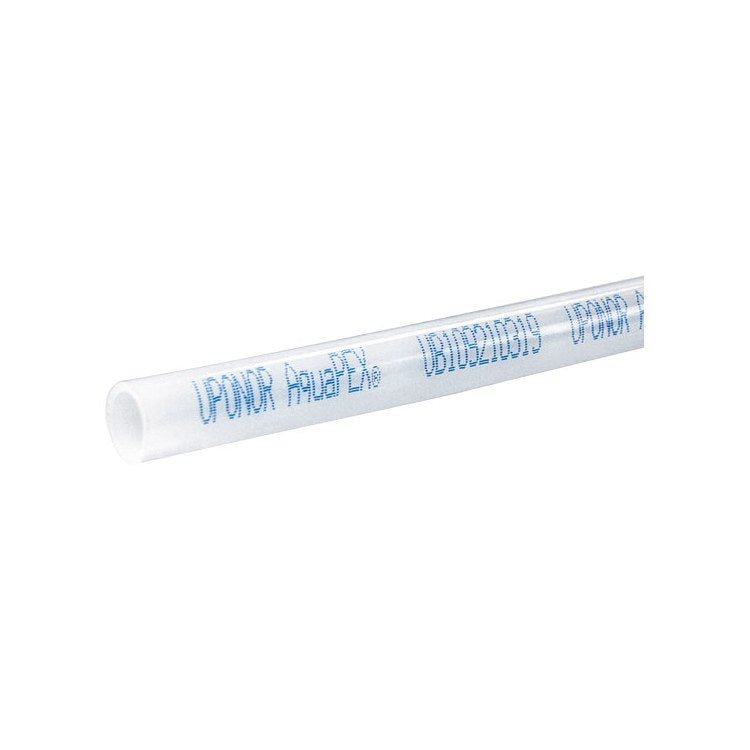

Uponor F4930750 AquaPEX Tubing 3/4 in x 20 ft

Product Description

The Uponor F4930750 AquaPEX tubing is a crosslinked polyethylene (PEX-a) straight length tubing. Approved for use with ASTM F1960 ProPEX expansion fittings as well as crimp, clamp, compression, and push-to-connect fitting systems. It resists corrosion, pitting, and scale buildup and features a one-month UV resistance. Manufactured in the U.S.A.

• Water Quality Association (WQA) Gold Seal for the greatest resiliency in freezing conditions
• Blue colored print string to designate cold-water lines
• Engel-method PEX-a with the highest degree of crosslinking for the greatest flexibility, durability, and performance

Product Highlights

This AquaPEX tubing is ideal for hot and cold potable-water distribution and hydronic heating or cooling applications.

Product Information

Standard Information

• Brand: Uponor
• Manufacturer Part Number: F4930750
• Country of Origin: U.S.A.

Technical Specifications

• Brand: Uponor
• Product Type: Straight Length
• Material: AquaPEX White
• Size: 3/4IN
• Length: 20FT
• Letter Color: Blue
• Application: Radiant Heating and Cooling Systems
• NominalSize: 3/4in
• OutsideDiameter: 0.875in
• Sub Brand: AquaPEX®
• Item Name: Tubing
• Type: Straight Length
• Nominal Size: 3/4 Inch
• Inside Diameter: 0.671 Inch
• Crosslinked Polyethylene (PEX-a): Crosslinked Polyethylene (PEX-a)
• Outside Diameter: 7/8 Inch
• Material Specification: ASTM F1960
• Wall Thickness: SDR 9
• Maximum Pressure Rating: 160 psi
• Temperature Rating: 73 to 200 deg F
• Package Type: Bundle
• Thermal Conductivity: 0.0317 W/mK
• Material Construction: Polyethylene
• Working Pressure: 80 psi
