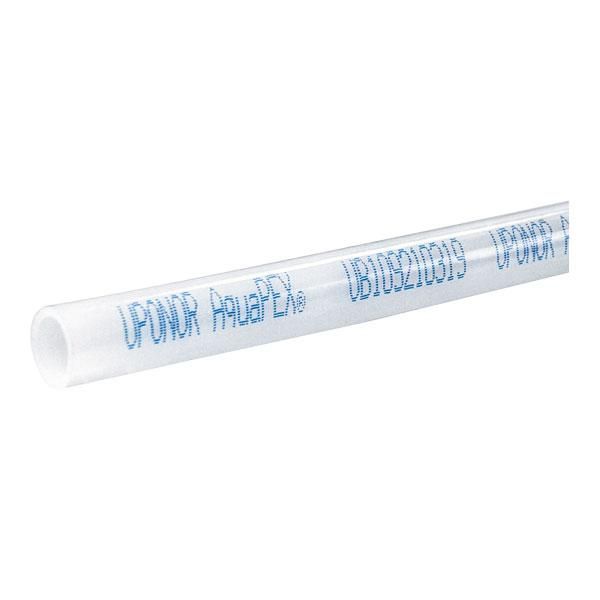

Uponor F4930500 AquaPEX Straight Tubing 1/2 in x 20 ft

Product Description

The Uponor F4930500 AquaPEX straight tubing measures 1/2 in x 20 ft. This PEX-A tubing is manufactured using the Engel process and is suitable for potable water distribution. It is designed to resist corrosion, pitting, and scale buildup, ensuring long-lasting performance in plumbing systems.

• Offers flexibility, durability, and performance due to a high degree of crosslinking.
• Certified by the Water Quality Association (WQA) Gold Seal for resilience in freezing conditions.
• Features a one-month UV resistance.

Product Highlights

The Uponor AquaPEX tubing is ideal for use in plumbing and continuous-recirculation systems. Its flexibility and resistance to corrosion make it a reliable choice for residential and commercial applications.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: F4930500
• Country of Origin: Domestic

Technical Specifications

• MPN: F4930500
• Brand: Uponor
• Nominal Size: 1/2 in
• Length: 20 ft
• Inside Diameter: 0.475 in
• Outside Diameter: 0.625 in
• End Style: PEX
• Schedule Rating: SDR 9
• Working Pressure: 80 to 160 psi
• Temperature Rating: 73 to 200 deg F
• Method of Manufacture: Engel Process
• Material: Crosslinked Polyethylene
• Series: AquaPEX®
• Domestic/Import: Domestic
• Inner diameter pipe [inch]: 0.475 inch
• Outer diameter pipe [inch]: 0.625 inch
• Weight per UOM [lbs/UOM]: 28 lbs/uom
• Bundle Diameter [in]: 3.5 inch
• Bundle Length [in]: 258 inch
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Linear expansion rate [inch/10°F/100ft]: 1.1 inch/10°f/100ft
• Pipe density [lb/ft³]: 0.0584 lb/ft³
• SDR-class: 9
• Material Service Pipe: Crosslinked polyethylene (PEX-a) tubing; SDR-9
• Thermal conductivity pipe [BTUin/ft²hrF°]: 0.22 btuin/ft²hrf°
• Material group: PEX
• Inner diameter pipe [mm]: 12.07 mm
• Outer diameter pipe [mm]: 15.88 mm
• Weight per UOM [kg/UOM]: 12.701 kg/uom
• Bundle Diameter [mm]: 88.9 mm
• Bundle Length [mm]: 6553.2 mm
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C]: 93 °C
• Linear expansion rate [mm/5.56°C/30.48m]: 27.94 mm/5.56°c/30.48m
• Pipe density [g/cm³]: 0.936 (PEX) g/cm³
• Thermal Conductivity pipe [W/mK]: 0.0317 (PEX) W/mk
• Type: PEX-A
• Diameter: 1/2"
