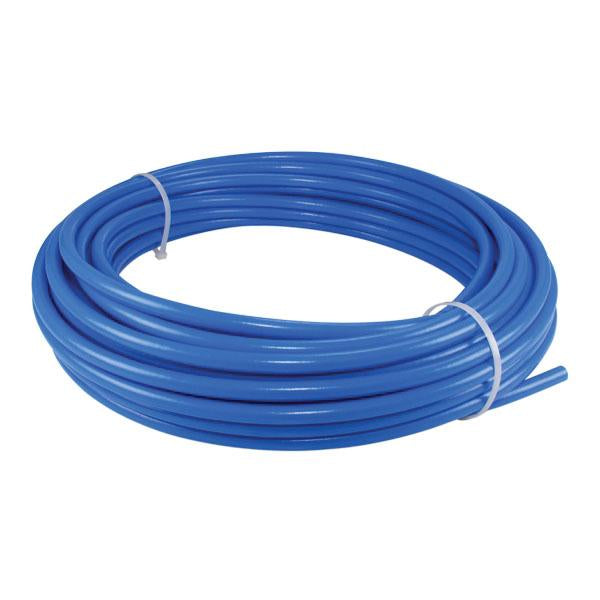

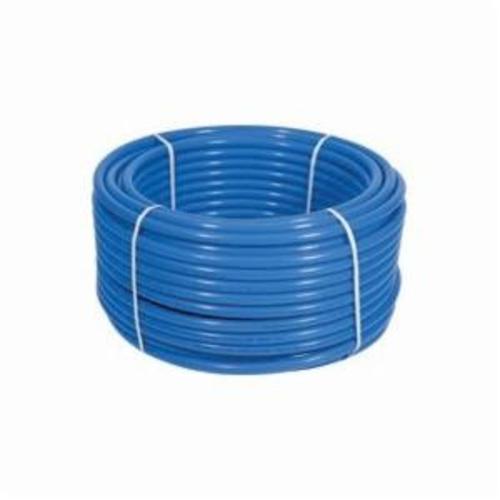

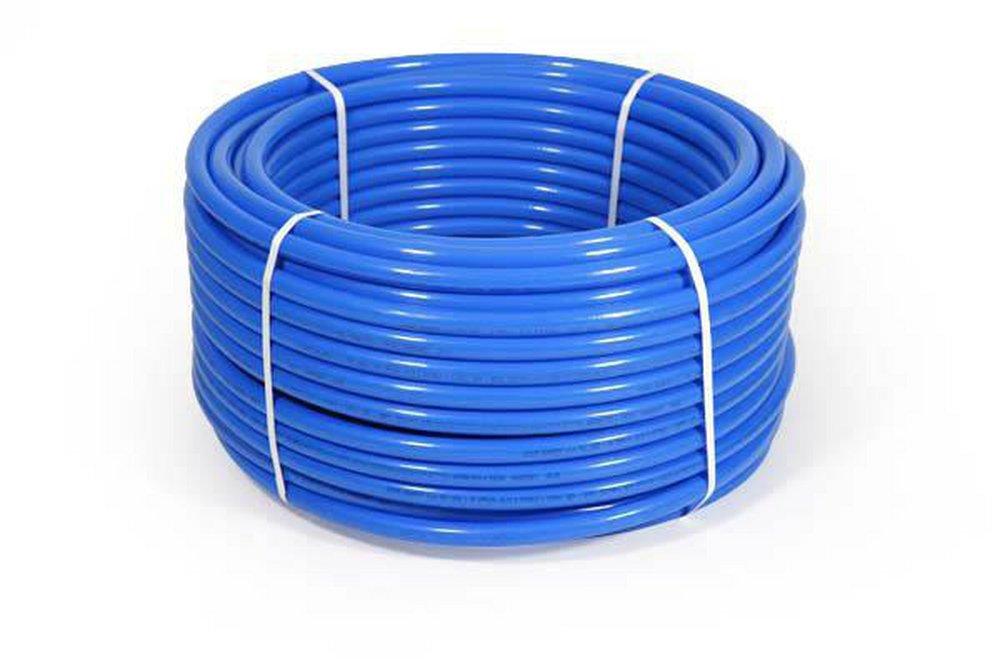

Uponor F3060750 AquaPEX 300 ft. x 3/4 in. PEX Tubing Coil

Product Description

The Uponor F3060750 AquaPEX tubing is primarily used in cold potable water distribution systems and radiant heating systems containing no ferrous corrodible components or where ferrous components are isolated from the tubing. This PEX-A tubing has a 3/4 in. nominal size and comes in a 300 ft. coil. Approved fittings systems are ProPEX®.

• Primarily used in cold potable water distribution systems
• Suitable for radiant heating systems where ferrous components are isolated
• Approved for use with ProPEX® fitting systems

Product Highlights

The Uponor AquaPEX tubing is ideal for potable water and radiant heating systems, offering a reliable and efficient solution for various plumbing and heating applications.

Product Information

Standard Information

• Brand: Uponor
• Manufacturer Part Number: F3060750

Technical Specifications

• Nominal Size: 3/4 in
• Length: 300 ft
• Material: PEX A
• Inside Diameter: 0.671 in
• Outside Diameter: 7/8 in
• Temperature Rating: 73.4 to 200 deg F
• Working Pressure: 80 to 160 psi
• Mfg Standards/Approvals: ANSI/NSF 14/61, ASTM F-876/F-877/F-1960/F-2023/E-84, ASTM E-119/UL 263, ASTM E-814/ULC S115, AWWA C904, CAN/ULC S101, CAN/ULC S102.2, CSA B137.5/B214
• Fitting/Connector Type: Tubing
• Series: AquaPEX® Series
• Material Construction: Polyethylene
• Inner diameter coil [inch]: 22 inch
• Outer diameter coil [inch]: 32 inch
• Coil width [inch]: 8 inch
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Linear expansion rate [inch/10°F/100ft]: 1.1 inch/10°f/100ft
• Pipe density [lb/ft³]: 0.0584 lb/ft³
• Material Service Pipe: Crosslinked polyethylene (PEX-a) tubing; SDR-9
• Thermal conductivity pipe [BTUin/ft²hrF°]: 0.22 btuin/ft²hrf°
• Inner diameter coil [mm]: 558.8 mm
• Outer diameter coil [mm]: 812.8 mm
• Coil width [mm]: 203.2 mm
• Inner diameter pipe [mm]: 17.04 mm
• Outer diameter pipe [mm]: 22.22 mm
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C]: 93 °C
• Linear expansion rate [mm/5.56°C/30.48m]: 27.94 mm/5.56°c/30.48m
• Pipe density [g/cm³]: 0.936 (PEX) g/cm³
• Thermal Conductivity pipe [W/mK]: 0.0317 (PEX) W/mk
