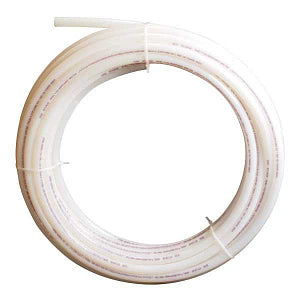

Uponor F1021250 AquaPEX 1-1/4 inches x 300 feet Coil

Product Description

The Uponor F1021250 AquaPEX tubing is designed for hot and cold domestic potable water distribution, residential fire safety, and radiant heating/cooling systems. This white tubing is suitable for hydronic heating applications where ferrous components are isolated. It is manufactured and listed to ASTM F876 and F877 and CSA B137.5.

• Suitable for hydronic heating applications
• Manufactured and listed to ASTM F876 and F877 and CSA B137.5
• Certified to NSF Standards 14 and 61

Product Highlights

The Uponor AquaPEX tubing is ideal for potable water and hydronic systems, offering durability and code compliance.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: F1021250

Technical Specifications

• Part no.: F1021250
• Inner diameter coil [inch]: 27 inch
• Outer diameter coil [inch]: 45 inch
• Coil width [inch]: 18.5 inch
• Inner diameter pipe [inch]: 1.054 inch
• Outer diameter pipe [inch]: 1.375 inch
• SDR-class: 9
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Material Service Pipe: Crosslinked polyethylene (PEX-a) tubing; SDR-9
• Thermal conductivity pipe [BTUin/ft²hrF°]: 0.22 btuin/ft²hrf°
• Material group: PEX
• Linear expansion rate [inch/10°F/100ft]: 1.1 inch/10°f/100ft
• Inner diameter coil [mm]: 685.8 mm
• Outer diameter coil [mm]: 1143 mm
• Coil width [mm]: 469.9 mm
• Inner diameter pipe [mm]: 26.77 mm
• Outer diameter pipe [mm]: 34.92 mm
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C]: 93 °C
• Thermal Conductivity pipe [W/mK]: 0.0317 (PEX) W/mk
• Linear expansion rate [mm/5.56°C/30.48m]: 27.94 mm/5.56°c/30.48m
• Inside Diameter: 1.054 in
• Length: 300 ft
• Material: PEX A
• Nominal Size: 1-1/4 in
• Outside Diameter: 1-3/8 in
• Temperature Rating: 73.4 to 200 deg F
• Working Pressure: 80 to 160 psi
• Manufacturer: Uponor
• Manufacturer #: F1021250
• Type: Coil
• Brand: UPONOR
• UOM: ft
