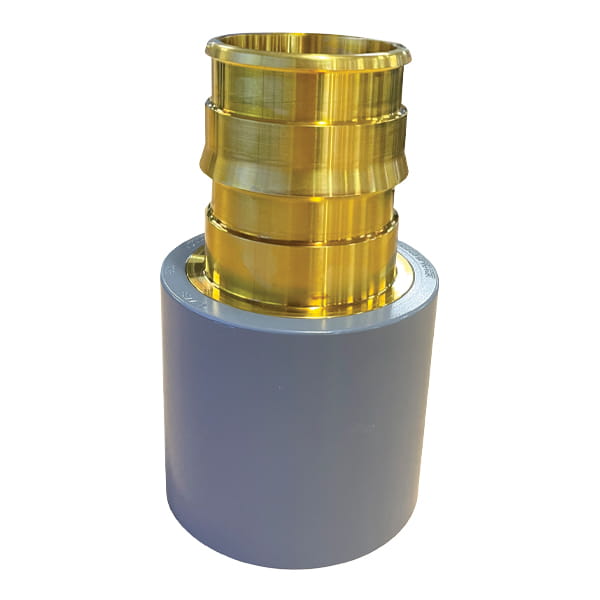

Uponor CP8517575 ProPEX LF Brass x CPVC Socket Adapter 3/4 inches PEX x 3/4 inches CPVC (IPS Sch 80)

Product Description

The UPONOR CP8517575 ProPEX LF Brass x CPVC Socket Adapter connects 3/4" PEX piping to 3/4" CPVC (IPS Schedule 80) piping. Constructed from lead-free brass with CPVC components and an EPDM O-ring, this adapter ensures durable and reliable connections in plumbing systems. It is rated for 160 psi at 73 °F and 100 psi at 180 °F, meeting various plumbing codes and standards for secure installations.

• Connects 3/4" PEX to 3/4" CPVC (IPS Sch 80) piping.
• Features lead-free brass body with CPVC components and EPDM O-ring.
• Rated for 160 psi at 73 °F and 100 psi at 180 °F.

Product Highlights

Durable lead-free brass adapter for secure PEX to CPVC plumbing connections, compliant with industry standards.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: CP8517575

Technical Specifications

• Part Number: CP8517575
• Codes: UPC, IMC, IPC, IBC, IRC, UMC, NSPC, NPC of Canada
• Dimensions (Imperial): {'A': '3.005 inch', 'B': '1.06 inch', 'C': '1 inch', 'D': '1.058 inch', 'E': '0.683 inch', 'F': '1.461 inch', 'G': '0.529 inch', 'H': '0.945 inch'}
• Listings: cQAIus P321, U.P.Code, cNSFus-pw-G
• Standards: ASTM F1960, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM F877, ASTM F1970, ASTM F439, ASTM F441
• End Type 1: ProPEX
• Operating Pressure 1 (PSI): 160 psi
• Operating Pressure 2 (PSI): 100 psi
• Operating Temperature 1 (°F): 73 °F
• Operating Temperature 2 (°F): 180 °F
• End Size 2: 3/4"
• End Type 2: CPVC
• Subcomponent Material: Body: LF Brass, CPVC; O-ring: EPDM
• End Size 1: 3/4"
• Material Group: LF Brass
• Prop 65 Label Required: Yes
• Type: Socket Adapter
• Series: Propex LF
• System: Wirsbo
