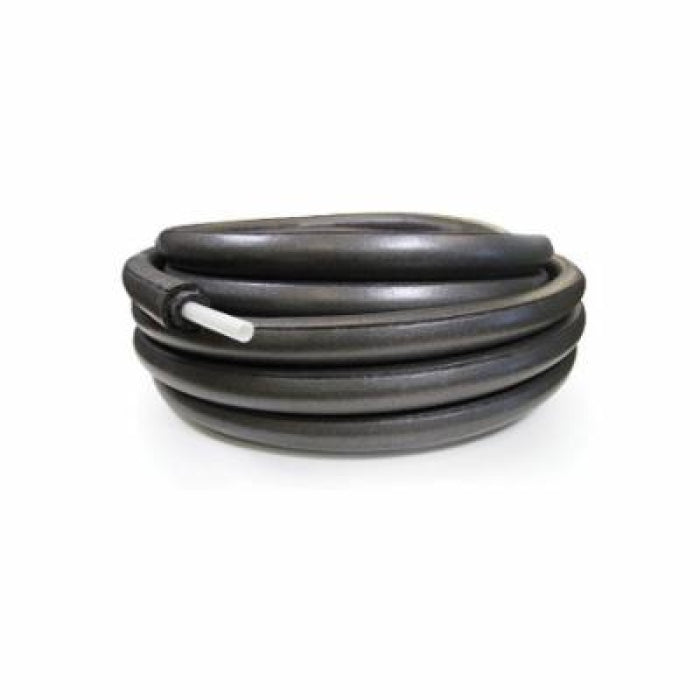

Uponor A6141000 Pre-Insulated Coil With 1/2 in Insulation 1 in 100 ft Coil

Product Description

The Uponor A6141000 is a pre-insulated coil designed for hydronic heating systems. It consists of oxygen-barrier PEX pipe wrapped in polyethylene-foam insulation. This assembly meets ASHRAE energy-code requirements and is suitable for radiant heating and cooling applications. The piping can be buried directly in soil with the recommendation of one-half inch additional insulation for compression protection.

• Nominal diameter of 1 inch
• Coil length of 100 feet
• Rated for 80 psi working pressure

Product Highlights

The Uponor A6141000 provides effective thermal insulation and durability for various hydronic systems.

Product Information

Standard Information

• Brand: Uponor
• MPN: A6141000

Technical Specifications

• Material: Cross Linked Polyethylene
• Length: 100 feet
• Nominal Size: 1 inch
• Outside Diameter: 2.31 inches
• Temperature Rating: 200 degrees F
• Working Pressure: 80 psi
• Thermal Conductivity: 0.25 Btu in/hr/sq-ft/deg F
• R-value: 3.4
