Product Description

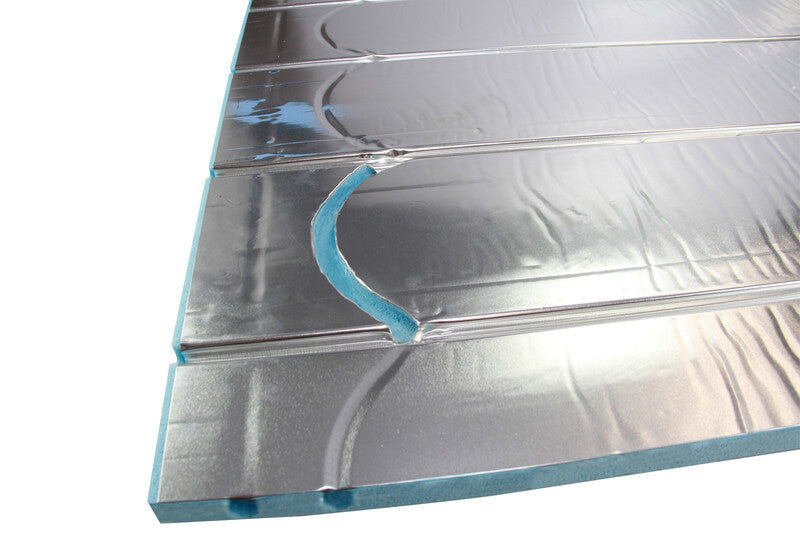

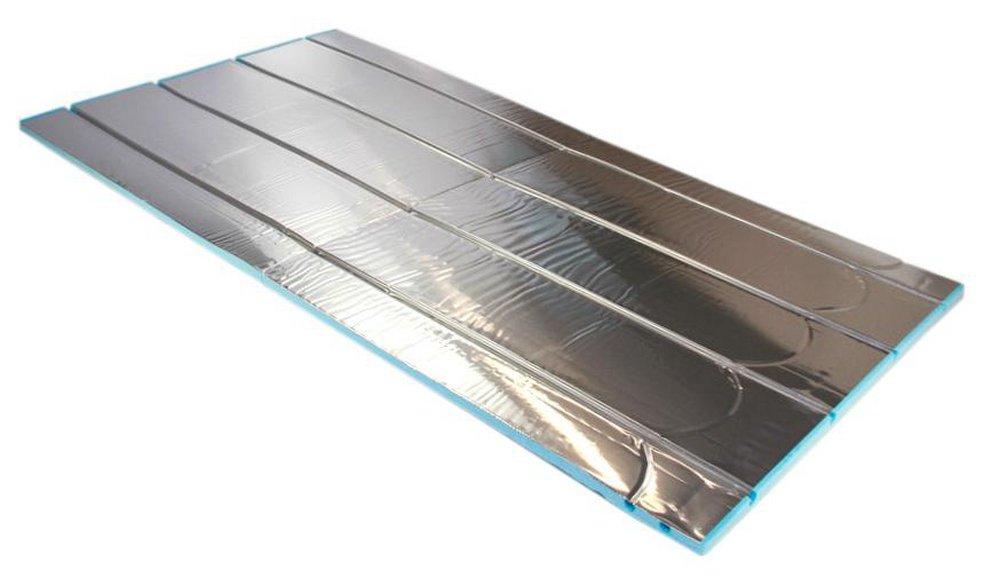

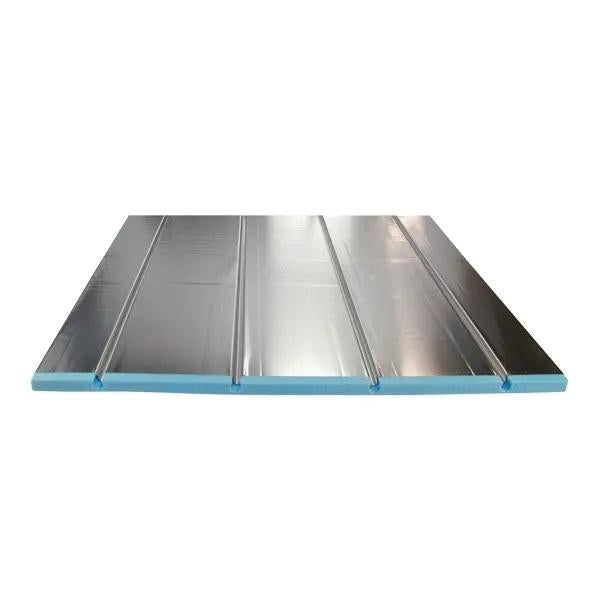

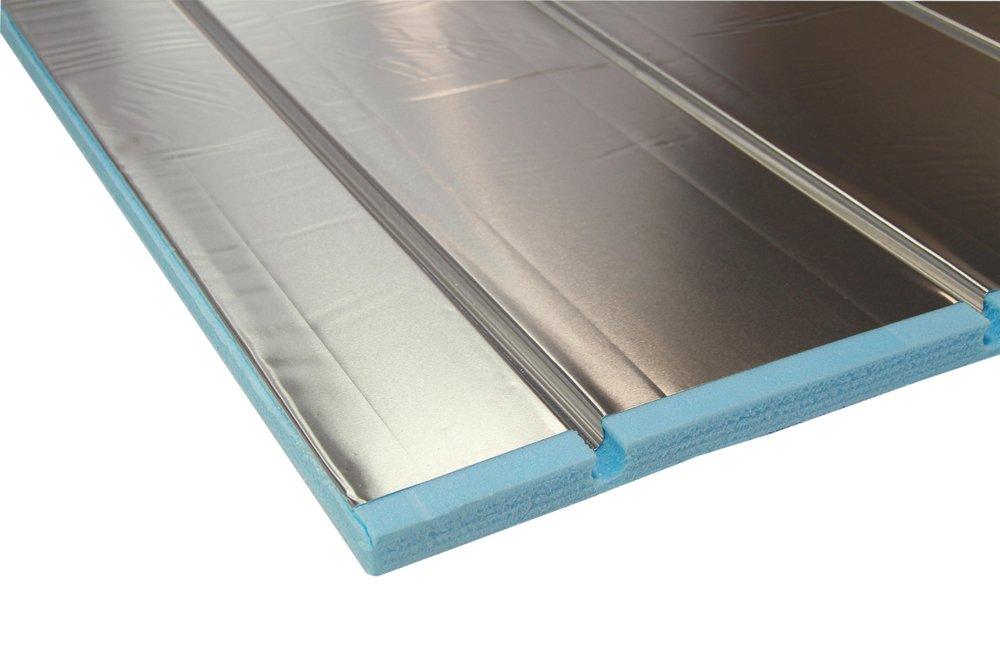

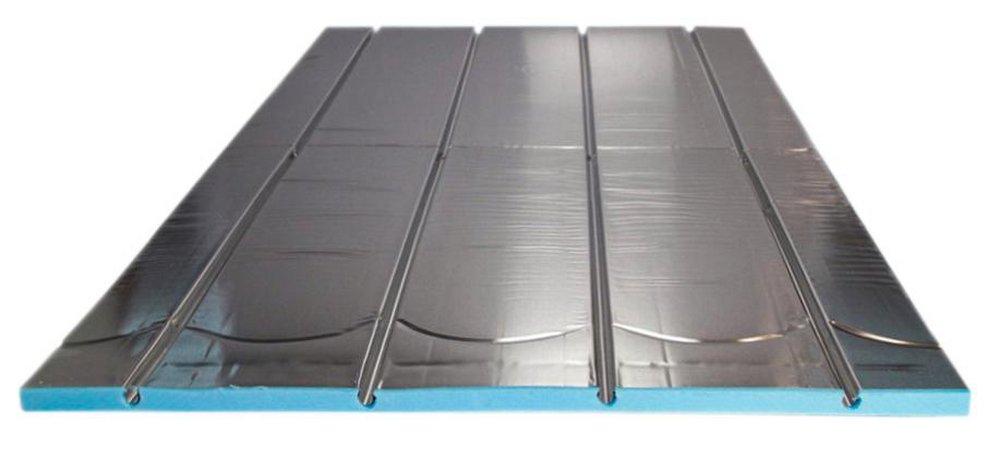

The UPONOR A5070641 Xpress Trak Radiant Panel is engineered for fast, efficient radiant heating installations in new construction and remodels. Featuring a lightweight XPS foam core, it offers a low-mass solution for quicker response times. This panel is designed for use with 5/16" Wirsbo hePEX oxygen-barrier radiant heating pipe, providing a low 5/8" profile and 6" on-center pipe spacing. Its highly conductive aluminum surface ensures superior heat transfer, while a 49 psi compressive strength prevents floor deflection.
- Lightweight XPS foam core provides a low-mass radiant solution for faster response times.
- Compatible with 5/16" Wirsbo hePEX oxygen-barrier radiant heating pipe.
- Features a low 5/8" profile with 6" on-center pipe spacing for efficient installation.
Product Highlights
Efficient radiant heating panel with XPS foam core and aluminum surface for quick response and superior heat transfer in new construction and remodels.
Product Information
Standard Information
-
Brand: UPONOR
-
Manufacturer Part Number: A5070641
Technical Specifications
-
Brand: Uponor
-
MPN: A5070641
-
Part Number: UA5070641
-
Item Number: 10109365
-
Unit of Measure: EACH
-
Profile: 5/8 inch
-
Pipe Spacing: 6 inch on-center
-
Compatible Pipe: 5/16 inch Wirsbo hePEX� oxygen-barrier radiant heating pipe
-
Compressive Strength (psi): 49 psi
-
Core Material: Lightweight XPS foam
-
Surface Material: Highly conductive aluminum
-
Dimension A (inch): 23.622 inch
-
Dimension B (inch): 47.244 inch
-
Dimension C (inch): 0.63 inch
-
Dimension D (inch): 2.953 inch
-
Dimension E (inch): 5.906 inch
-
Dimension F (inch): 1.488 inch
-
Dimension G (inch): 1.457 inch
-
Panel Coverage (sq ft): 7.8 ft_
-
Weight per Unit (lbs): 1.45 lbs/uom
-
Material Group: Aluminum Laminate w/XPS Foam
-
Operating Temperature Max (F): 150 �F
-
Operating Temperature Min (F): 50 �F
-
Prop 65 Label Required: Yes
-
R Value: 3.13
-
Status: Active
-
Panel Type: Radiant Panel
-
Runs: 4
-
System Type: PEX-a radiant floor heating system
-
Application: Residential new construction and remodels
-
Series: Xpress
