Uponor A5060701 Quik Trak 48 x 5/16 in. PEX Panel

Product Description

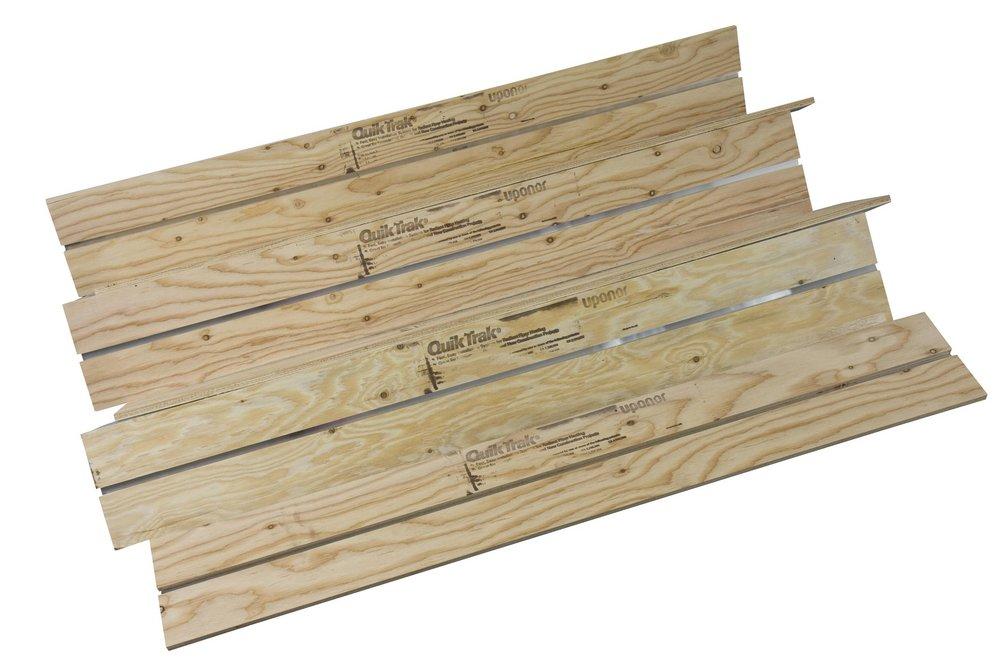

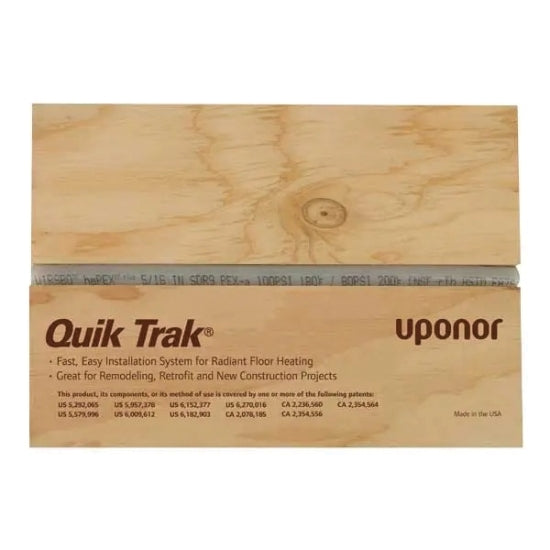

The Uponor Quik Trak PEX Panel, part number A5060701, is designed for radiant heating systems. This panel measures forty-eight inches in length and seven inches in width. The system works exclusively with 5/16 inch Wirsbo hePEX tubing. It features a plywood construction with an aluminum heat transfer sheet to maximize thermal efficiency. An assembled package includes six panels that are secured with strapping tape.

• Dimensions: 48 inches long by 7 inches wide
• Compatible with 5/16 inch Wirsbo hePEX tubing
• Consists of six interconnected panels

Product Highlights

This product allows for efficient installation of radiant heating systems, ensuring optimal performance.

Product Information

Standard Information

• Material: Plywood
• Construction: Aluminum heat transfer backing

Technical Specifications

• Coverage Area: 2.4 square feet per panel
• Thickness: 0.482 inches
• Domestic/Import: Domestic
• Shipping Weight: Approximately 2.9 pounds
• Shipping Dimensions: 47.75 inches x 6.88 inches x 0.5 inches
