Uponor A4050625 5/8 in. QS-style Compression Fitting Assembly for Commercial Manifold R25 Thread

Product Description

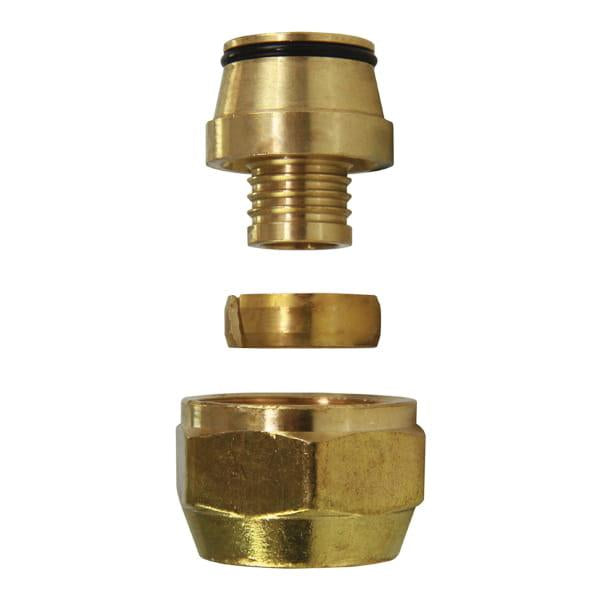

The UPONOR A4050625 is a 5/8 inch QS-style Compression Fitting Assembly designed for commercial manifolds with an R25 thread. This brass assembly features a 5/8 inch compression end and a 1 inch ISO 228-G threaded end, suitable for radiant heating applications. It is compatible with 5/8 inch and 3/4 inch Wirsbo hePEX or Uponor AquaPEX tubing, operating within a pressure range of 80 to 160 psi and a temperature range of 73 to 200 degrees F.

• QS-style compression fitting assembly for commercial manifolds.
• Features a 5/8 inch compression end and a 1 inch ISO 228-G threaded end.
• Compatible with 5/8 inch and 3/4 inch Wirsbo hePEX or Uponor AquaPEX tubing for radiant heating.

Product Highlights

Brass compression fitting for commercial manifolds, R25 thread, compatible with 5/8 inch and 3/4 inch PEX tubing.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: A4050625

Technical Specifications

• MPN: A4050625
• Codes: IMC, IRC, NBC of Canada, UMC
• Listings: IAPMO-ES, ICC PMG 1006, cNSFus-rfh, ICC-ES-PMG 1012
• Standards: CSA B137.5, R25: ISO 228-G 1", NSF/ANSI 14, ASTM F877
• Flow Coefficient (Cv): 6.58
• End Size 1: 5/8 in
• End Size 2: 1 in
• End Type 1: Compression
• End Type 2: ISO 228-G
• Gasket Material: Nitrile (Buna N)
• Material: Brass
• Prop 65 Label Required: Yes
• Operating Pressure: 80-160 psi (5.5-11 bar)
• Operating Temperature: 73-200 �F (23-93 �C)
• Equivalent Length Through: 4.56 ft (1.39 m)
• SKU: WIRA4050625
• Product Type: Hydronic Parts & Accessories
• Fitting Type: QS-Style Compression Fitting Assembly
• Manifold Connection: R25 thread
• Tubing Compatibility: 5/8 in. and 3/4 in. tubing
• Connection Type: Compression, Threaded
• Application: Commercial Manifold, R25 Thread
• Style: QS
