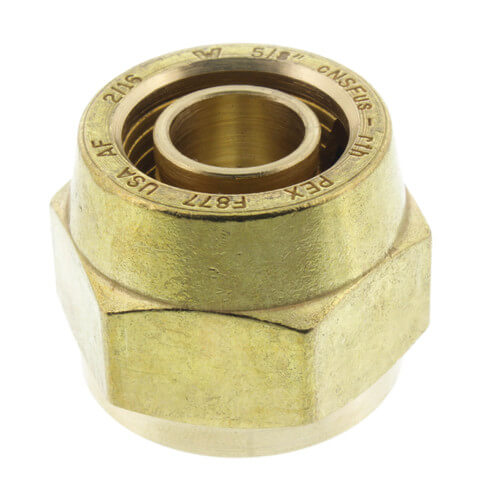

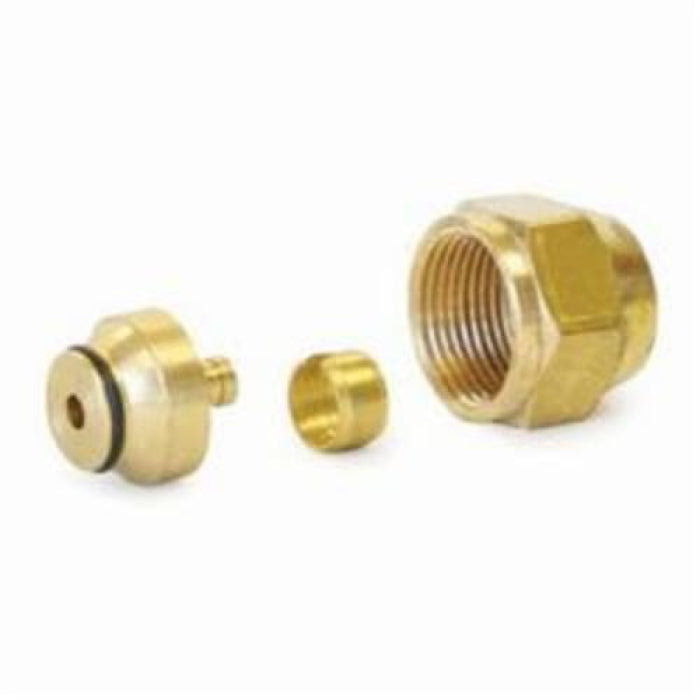

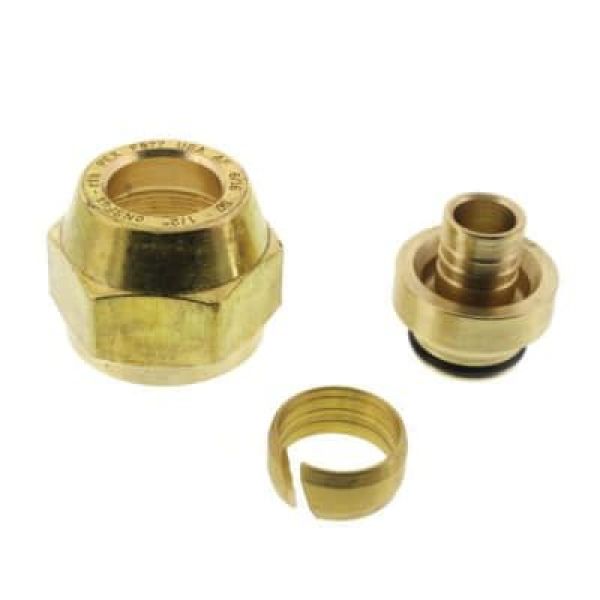

UPONOR Uponor A4020625 Fitting Assembly QS-Style Compression 5/8 Inch R20 Thread

Uponor A4020625 Fitting Assembly QS-Style Compression 5/8 Inch R20 Thread

Name: Uponor A4020625 Fitting Assembly QS-Style Compression 5/8 Inch R20 Thread
Brand: UPONOR
SKU: A4020625
Price: 23.27 USD
Availability: InStock

Brand: UPONOR

SKU: A4020625

Availability: In Stock

Ships same day if ordered by 12 pm

Quantity:

$23.27; $23.27
Unit price: per

Manuals:

Manual

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

Product Description

The UPONOR A4020625 fitting assembly features a QS-Style compression design with a 5/8 inch size and R20 thread end connection. Constructed from brass, this fitting is designed for use in radiant heating and cooling systems. It threads onto manifold loop outlets and connects Wirsbo hePEX or Uponor AquaPEX tubing to the manifold.

QS-Style Compression
5/8 Inch Size
Brass Material

Product Highlights

This fitting assembly is ideal for radiant heating and cooling systems, offering a reliable connection with its QS-Style compression and durable brass construction.

Product Information

Standard Information

Brand: UPONOR
Manufacturer Part Number: A4020625
Country of Origin: Domestic

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications

Brand

Uponor

Product Type

QS-Style Compression

Size

5/8 IN

Material

Brass

End Connection

R20 Thread

Used on

Radiant Heating and Cooling Systems

Material Specification

CA360

Material Standard

ASTM F877

Industry Standards

IMC, IRC, NBC of Canada, UMC, CSA B137.5, ASTM F877, cNSFus-rfh, ICC-ES-PMG 1012

Style

QS-Style

Thread

ISO 228-G

Series

QS-Style

Nominal Size

R20 x 5/8 in

Type

Compression

Hex Size

1.37 in

Pressure Rating

125 psi

Temperature Rating

220 deg F

Origin

Domestic

Connection Size

5/8 in

Item Name

Fitting Assembly

Material Specifications

ASTM F877

Sub Brand

Quick Seal

Applications

For radiant heating and cooling systems, snow and ice melting systems, permafrost protection systems and turf conditioning systems

Domestic/Import

Domestic

End Style

Compression

Fitting Type

Compression Fitting Assembly

Material Construction

Brass

Fitting Size

5/8 in

Standards/Approvals

ASTM F877 Standard

Manufacturer Part Number

A4020625

UPC

30673372118232

Application

For connect Wirsbo hePex plus tubing to the manifold in radiant heating applications

Connection Type 1

FNPT

UNSPSC

40171701

PEX Size

5/8"

Max Pressure (PSI)

200

Warranty

5 Year

Thread Type

Female

Standards Met

NSF, ASTM F877, ASTM F1960

Fitting System Compatibility

PEX Compression

Tubing Compatibility

PEX-a, PEX, hePEX plus

Manifold Compatibility

EP Truflow,Truflow

Max Temp (F)

200°F

Thread Size

R20

Codes

IMC|IRC|NBC of Canada|UMC

End Size 1 [inch|mm]

5/8"

End Size 2 [inch|mm]

3/4"

End Type 1

End Type 2

ISO 228-G

Operating Pressure 1 [PSI]

160 psi

Operating Pressure 2 [PSI]

100 psi

Operating Pressure 3 [PSI]

80 psi

Operating Temperature 1 [°F]

73 °F

Operating Temperature 2 [°F]

180 °F

Operating Temperature 3 [°F]

200 °F

Material group

Brass

Material o-ring

Nitrile (Buna N)

Prop 65 label required?

Yes

Subcomponent Material

Fitting: CA 360 Brass

Standards

CSA B137.5|ASTM F877|R32: ISO 228-G 3/4"

Listings

cNSFus-rfh|ICC-ES-PMG 1012
