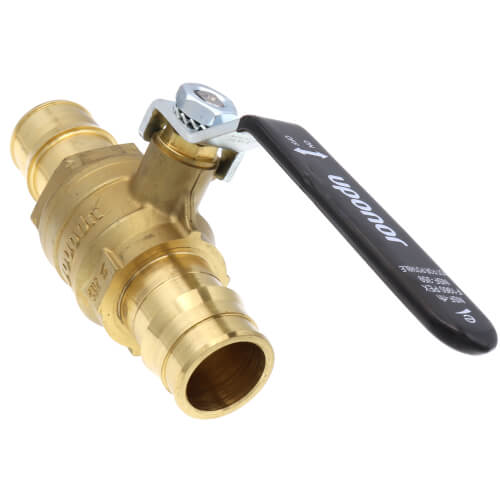

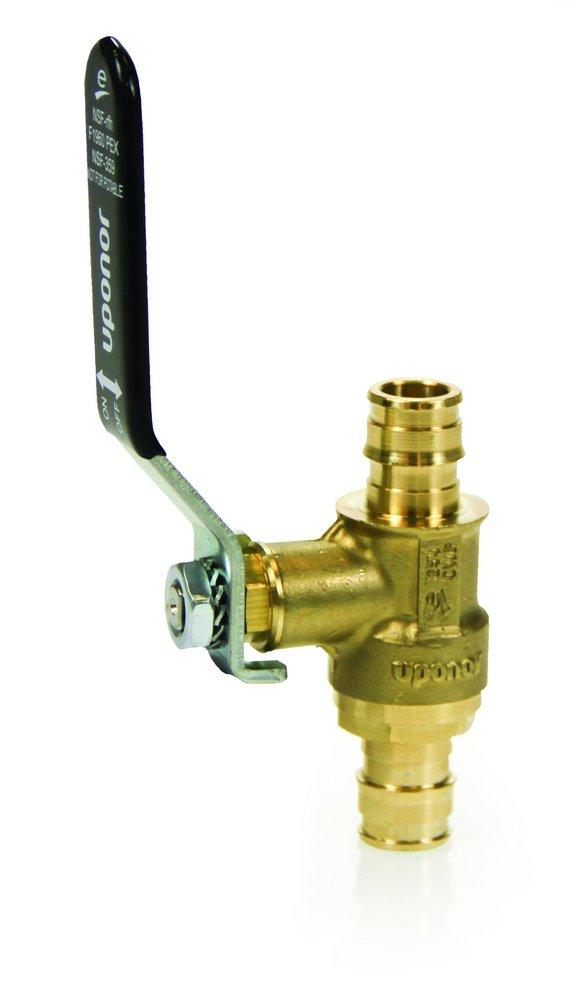

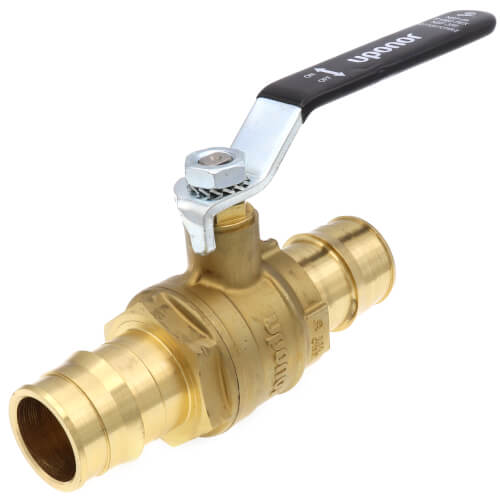

Uponor A3201515 ProPEX Brass Ball Valve (Full Port) 250 PSI 1-1/2 inches

Product Description

The Uponor A3201515 ProPEX Brass Ball Valve is designed for radiant heating/cooling and hydronic piping applications. This full-port valve features ProPEX fittings for secure connections to Uponor PEX pipe, compatible with propylene glycol mixtures up to 50%. It supports stem extensions for up to 2 inches of pipe insulation. Constructed from brass, it has a maximum pressure rating of 250 PSI and a maximum temperature of 250°F. This valve is not intended for potable water systems.

• Conforms to multiple industry standards including ASTM F877, ASTM F1960, and NSF 359.
• Features ProPEX fitting system for secure PEX-to-PEX connections in hydronic systems.
• Designed with blow-out proof stems and accommodates stem extensions for insulation up to 2 inches.

Product Highlights

Full-port brass ball valve for radiant heating/cooling and hydronic piping, ensuring robust PEX connections.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: A3201515
• Country of Origin: Import

Technical Specifications

• Application: Plumbing, Heating
• Size: 1-1/2"
• Flow Capacity (Cv): 68.2
• Max Pressure (PSI): 250
• Max Temp (F): 250°F
• Material: Brass
• Fitting System Compatibility: Expansion PEX
• Standards Met: ASTM E84, CSA B137.5, ASTM F877, ASTM F1960, NSF 359
• Tubing Compatibility: PEX
• Port Type: Full Port
• Connection Type: Expansion PEX x Expansion PEX
• Connection Method: PEX
• Actuator Type: Lever Handle
• Ball Material: Brass
• Body Material: Brass
• Softgoods Material: PTFE Seal/EPDM/FKM O-Ring
• Trim Material: Brass
• Type: Propex BR Ball Valve
• Collection: ProPEX
• FM Approved: No
• IAPMO Listed: No
• NSF Certified: No
• UL Listed: No
• Valve Body Style: Ball
