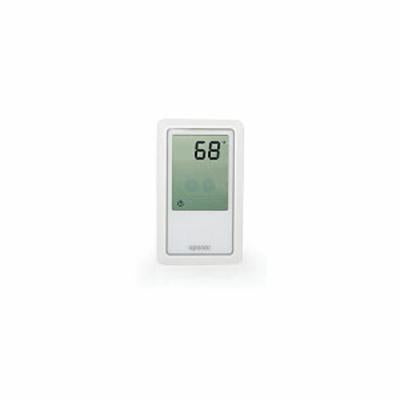

Uponor A3100101 Heat-Only Thermostat With Touchscreen

Product Description

The Uponor heat-only thermostat with touchscreen, model A3100101, controls temperature for radiant heating systems. It is designed to sense room air temperature, facilitating efficient temperature management. Features include:

• Operative temperature sensing
• Two-wire power sharing for easy installation
• User-friendly touchscreen interface

Product Highlights

This thermostat is suitable for radiant floor heating applications. It offers precise temperature control via an air sensor and supports an optional floor sensor for maintaining comfortable floor temperatures. The device operates on 24 VAC and is housed in a slim design.

Product Information

Standard Information

• Voltage Rating: 24 VAC
• Power Source: Hardwired
• Programmability: Non-Programmable

Technical Specifications

• Item Name: Non-Programmable Thermostat With Touchscreen
• Dimensions: 3-1/4 in W x 5-3/8 in H x 3/4 in D
• Temperature Range: 32 to 104 deg F
• Accuracy: Plus/Minus 10%
• Max Load: 1.3 A at 24 VAC
• Humidity Rating: Less than 20-90% non-condensing
• Certification: FCC part 15 class B, CAN ICES-3(B)/NMB-3(B)
