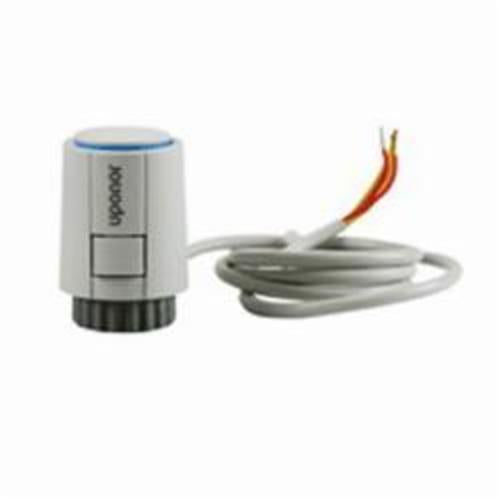

Uponor A3023522 Four-Wire Thermal Actuator, 24 VAC, 1 W Working Current/Power

Product Description

The Uponor A3023522 is a four-wire thermal actuator designed for use in radiant heating systems. This actuator features a temperature range of thirty-two to one hundred forty degrees Fahrenheit. It operates at less than three hundred milliamps for two minutes with a voltage rating of twenty-four VAC and one watt working current.

• Includes all adapter rings for installation on Uponor manifolds
• Provides precise control on multi-zoned manifolds
• End switch activates relay, pump, or auxiliary devices

Product Highlights

The Uponor A3023522 thermal actuator enables effective control in radiant heating systems. It mounts easily on various Uponor manifolds and is essential for individual loop control.

Product Information

Standard Information

• Brand: Uponor
• MPN: A3023522

Technical Specifications

• Type: Four-Wire
• Voltage Rating: 24 VAC
• Current Draw: <300 mA for 2 min
• Working Current/Power: 1 W
• Temperature Rating: 32 to 140 deg F
• Dimensions: 2.5 in H x 1.75 in W x 2 in D
• Material: Plastic
• Package Weight: 0.32 lb
