Uponor A2771251 Manifold Supply and Return Ball Valve 1 IN.

Product Description

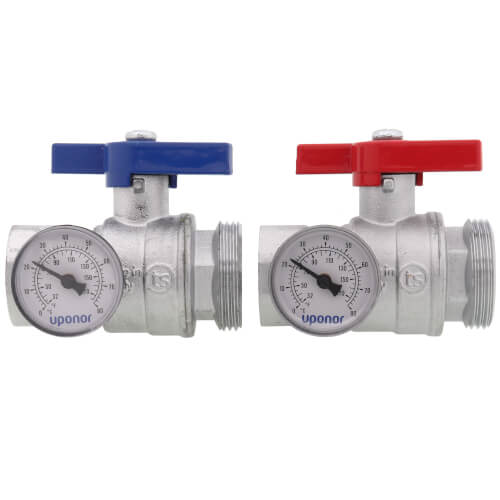

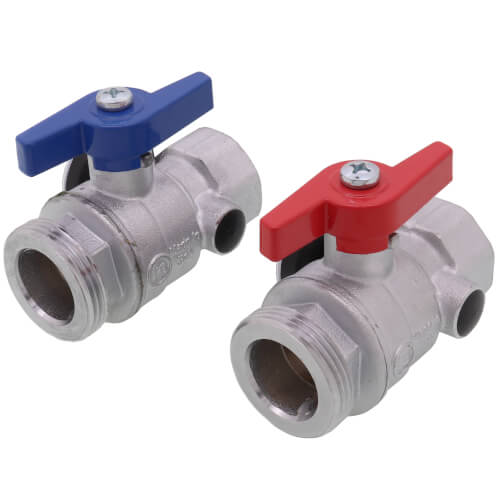

The Uponor A2771251 is a manifold supply and return ball valve. It features a stainless steel body and has a nominal size of one and one-quarter inches by one inch. This valve is suitable for various applications, including radiant heating and cooling systems. The integrated temperature gauge allows for a quick visual check of the supply and return temperatures.

• Stainless steel construction
• Integrated temperature gauge
• Connection type ISO 228-G X FNPT

Product Highlights

This product is ideal for use in hydronic heating systems, permafrost protection, and turf conditioning systems.

Product Information

Standard Information

• Manufacturer: Uponor
• MPN: A2771251

Technical Specifications

• Nominal Size: 1-1/4 X 1 IN
• Body Material: Stainless Steel
• Connection Type: ISO 228-G X FNPT
• Pressure Rating: 145 psi
• Temperature Rating: 210 deg F
• Flow Coefficient (Cv): 20
• Material Specification: Supply Valve: CW617N-UNI EN12165, Return Valve: CW614N-UNI EN 12164
