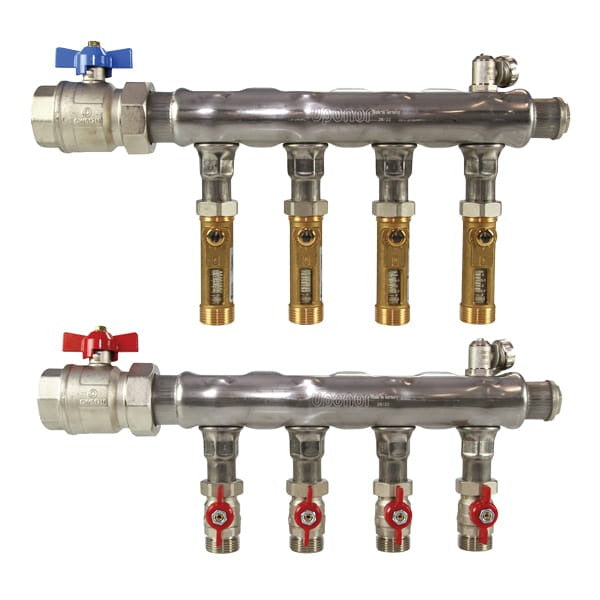

Uponor A2741202 Commercial stainless steel manifold assembly 1-1/2 in 12 loops

Product Description

Uponor A2741202 is a stainless steel commercial manifold assembly that distributes and measures hydronic flow across 12 loops. The preassembled unit has a 2 inch manifold body I.D., 1-1/2 in inlet (FNPT) and 1 in loop connections (ISO 228-G), integrated 0–4 gpm flow meters, 1-1/2 in distribution ball valves and 1 in loop isolation ball valves, supporting up to 48 gpm and rated 44 to 145 psi and 68 to 194 deg F.

• Integrated 0–4 gpm flow meters with 1-1/2 in distribution and 1 in loop isolation ball valves
• Manifold body I.D. 2 inch; inlet 1-1/2 in (FNPT) and loop connections 1 in (ISO 228-G)
• Maximum flow rate 48 gpm (10.9 m3/h); pressure rating 44 to 145 psi (3 to 10 bar); temperature rating 68 to 194 deg F (20 to 90 deg C)

Product Highlights

Stainless steel 12-loop commercial manifold with integrated flow meters and ball valves, 2 in body I.D., supports up to 48 gpm and rated for 44–145 psi and 68–194 deg F.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: A2741202
