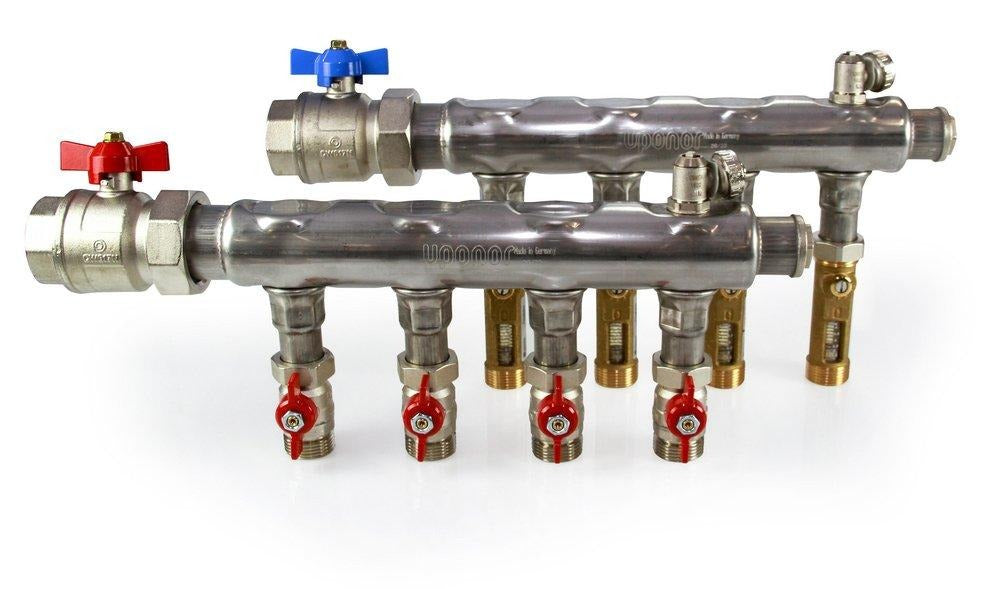

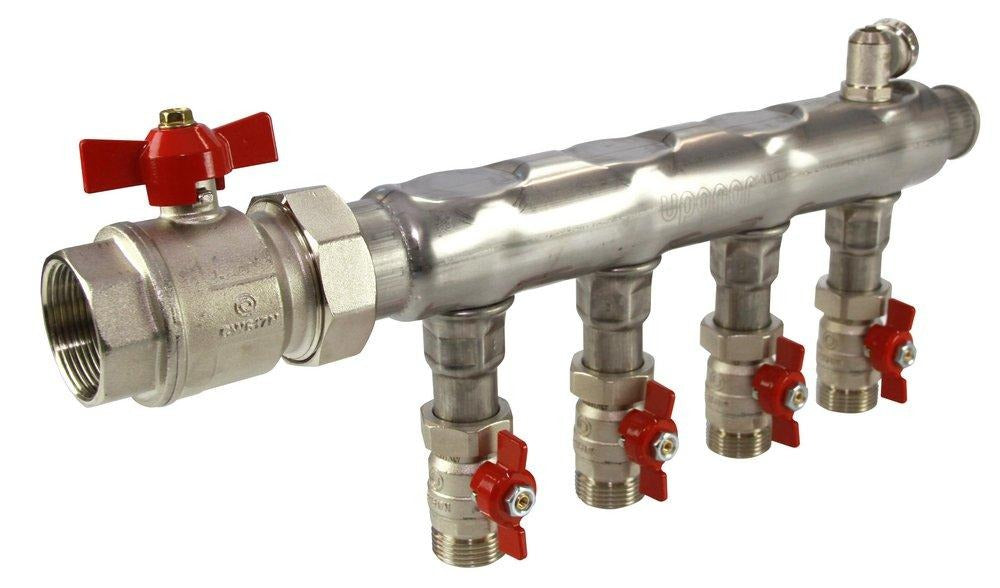

Uponor A2740302 Commercial stainless-steel manifold assembly 1-1/2 in (3 loops) A2740302

Product Description

Uponor A2740302 is a commercial stainless-steel manifold assembly configured for 3 loops with integrated flow meters and ball valves. The unit has a 2 inch manifold internal diameter, 1-1/2 in main connections, Cv 4.85, and a maximum flow capacity of 48 gpm (10.9 m3/h). End connections include 1-1/2 in FNPT and 1 in ISO 228-G. Operating pressures are specified up to 145 psi (10 bar) and temperatures to 194°F (90°C).

• Stainless steel construction with integrated flow meters and ball valves for each circuit
• 2 inch manifold internal diameter, 1-1/2 in main connection; Cv 4.85; maximum flow 48 gpm (10.9 m3/h)
• End connections: 1-1/2 in FNPT and 1 in ISO 228-G; operating pressures listed up to 145 psi (10 bar)

Product Highlights

3-loop commercial stainless-steel manifold with integrated flow meters and ball valves; 48 gpm capacity; preassembled for hydronic distribution

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: A2740302
