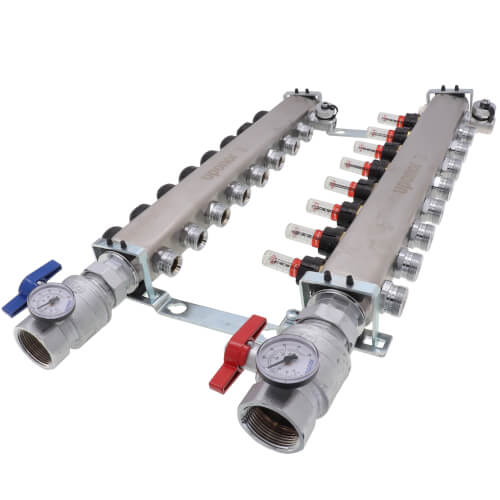

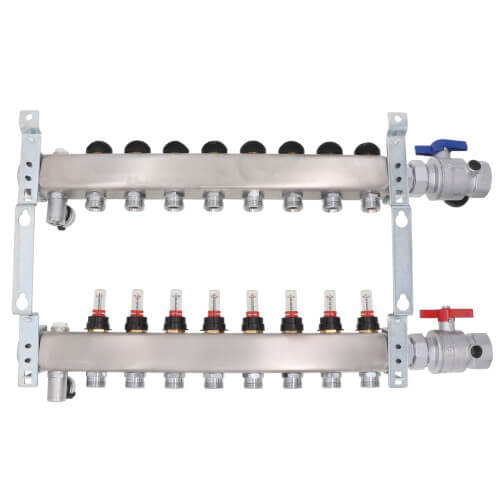

Uponor A2720802 8 Loop Stainless Steel Manifold Assy 1 1/4 With Flow Meter

Product Description

The Uponor A2720802 is an eight-loop stainless steel manifold assembly that includes a flow meter. This unit is specifically designed for radiant heating and cooling systems, ensuring efficient flow management. The manifold comes fully assembled and is ready for installation straight out of the box. It features isolation and balancing valves that allow for easy loop adjustment. The manifold ends are configured with R32 union connections while the loop outlets utilize R20 male threads.

• Material: Stainless Steel
• Flow Rate: 21 GPM
• Dimensions: Width 23.095 inches, Height 14.46 inches, Depth 3.439 inches

Product Highlights

This manifold is ideal for commercial and residential applications where dependable flow management is essential.

Product Information

Standard Information

• Manufacturer: Uponor
• Model Number: A2720802

Technical Specifications

• Number of Loops: 8
• Nominal Size: 1-1/4 x 3/4 inches
• Connection Type: ISO 228-G X ISO 228-G
• Body Material: 304 Stainless Steel
• Flow Meter: Integrated
• Pressure Rating: 43.8 to 145 psi
• Temperature Rating: 68 to 194 degrees Fahrenheit
• Hierarchy: Hydronics > Hydronic Manifolds
