Uponor A2701002 1 Stainless Steel 10-Loop Manifold Assy With Flow Meters, Balancing And Isolation Ball Valves

Product Description

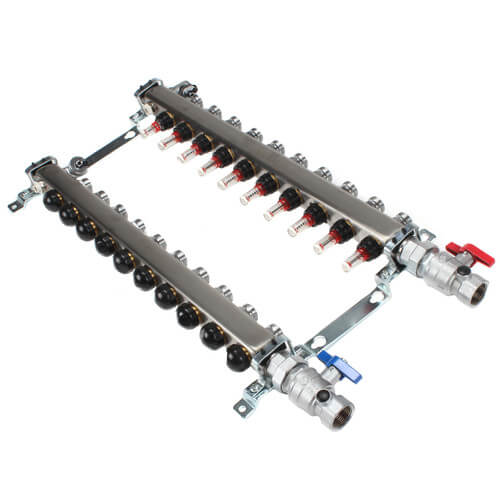

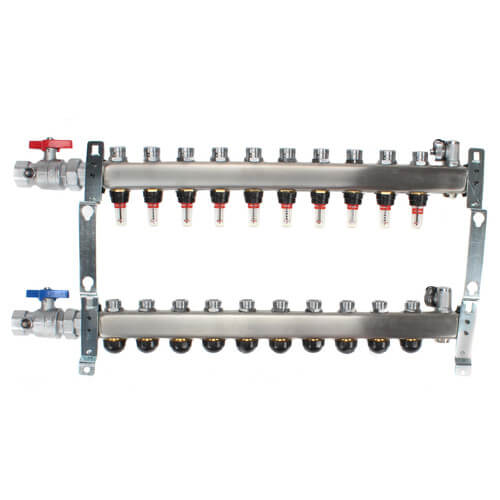

The Uponor A2701002 is a stainless steel manifold assembly designed for hydronic heating and cooling systems. This unit includes a one-inch flow meter along with balancing and isolation ball valves, making it an efficient choice for managing multiple loops. The manifold is ideal for both residential and commercial applications.

• Ten loop connections for flexible zoning.
• Pre-assembled for easy installation.
• Compatible with PEX tubing systems.

Product Highlights

This manifold assembly simplifies the balancing of water temperature across multiple loops while enabling easy isolation for service.

Product Information

Standard Information

• Item Name: Manifold Assembly With 1 IN Flowmeter and Balancing and Isolation Ball Valves
• Manufacturer: Uponor

Technical Specifications

• Nominal Size: 1-1/4 X 3/4 IN
• Connection Type: ISO 228-G X ISO 228-G
• Number Of Loops: 10
• Flow Rate: 14 GPM
• Width: 26.908 IN
• Height: 14.119 IN
• Depth: 3.842 IN
• Body Material: 304 Stainless Steel
• Additional Specifications: Cv Branch: 1.1, Manifold Components: Brass
