Product Description

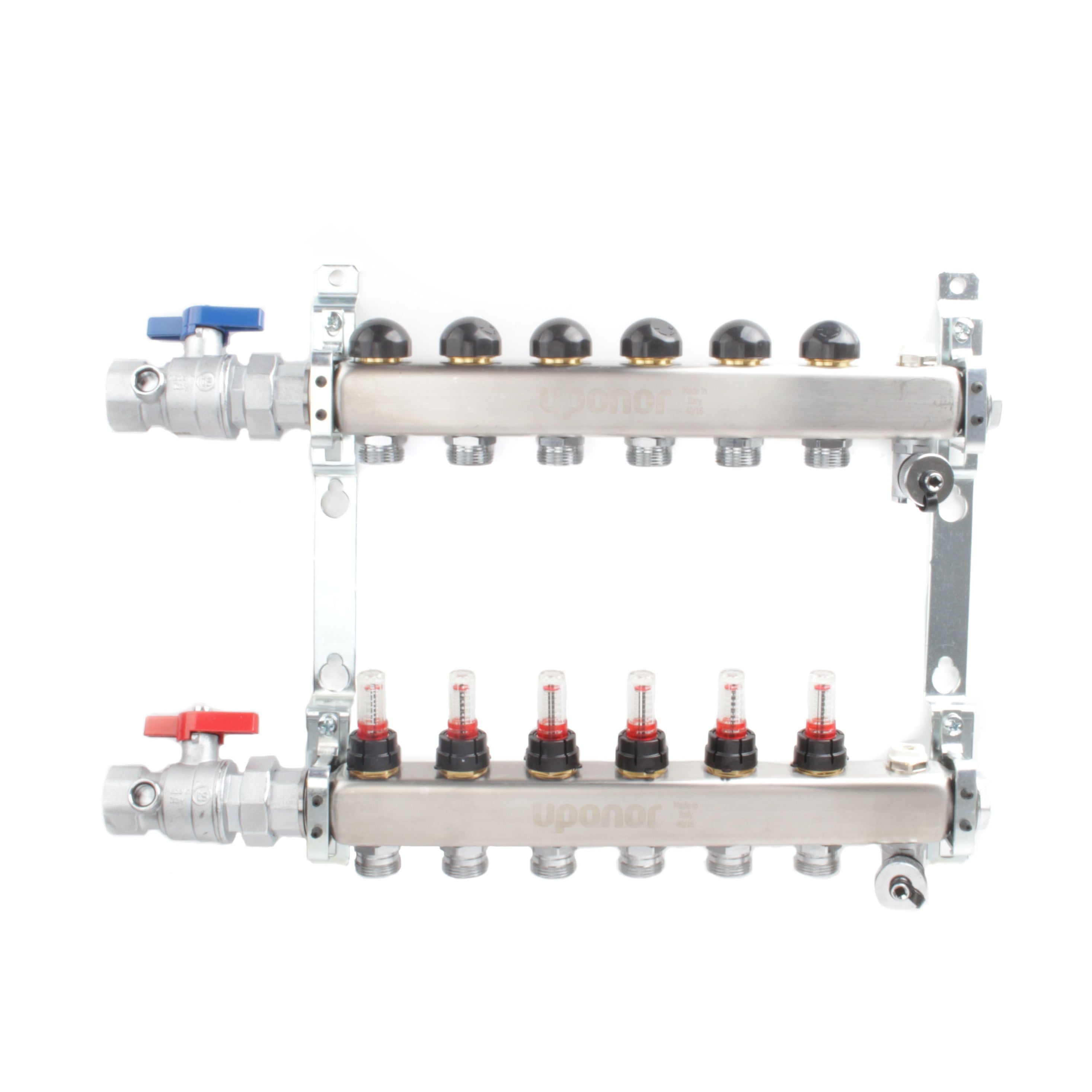

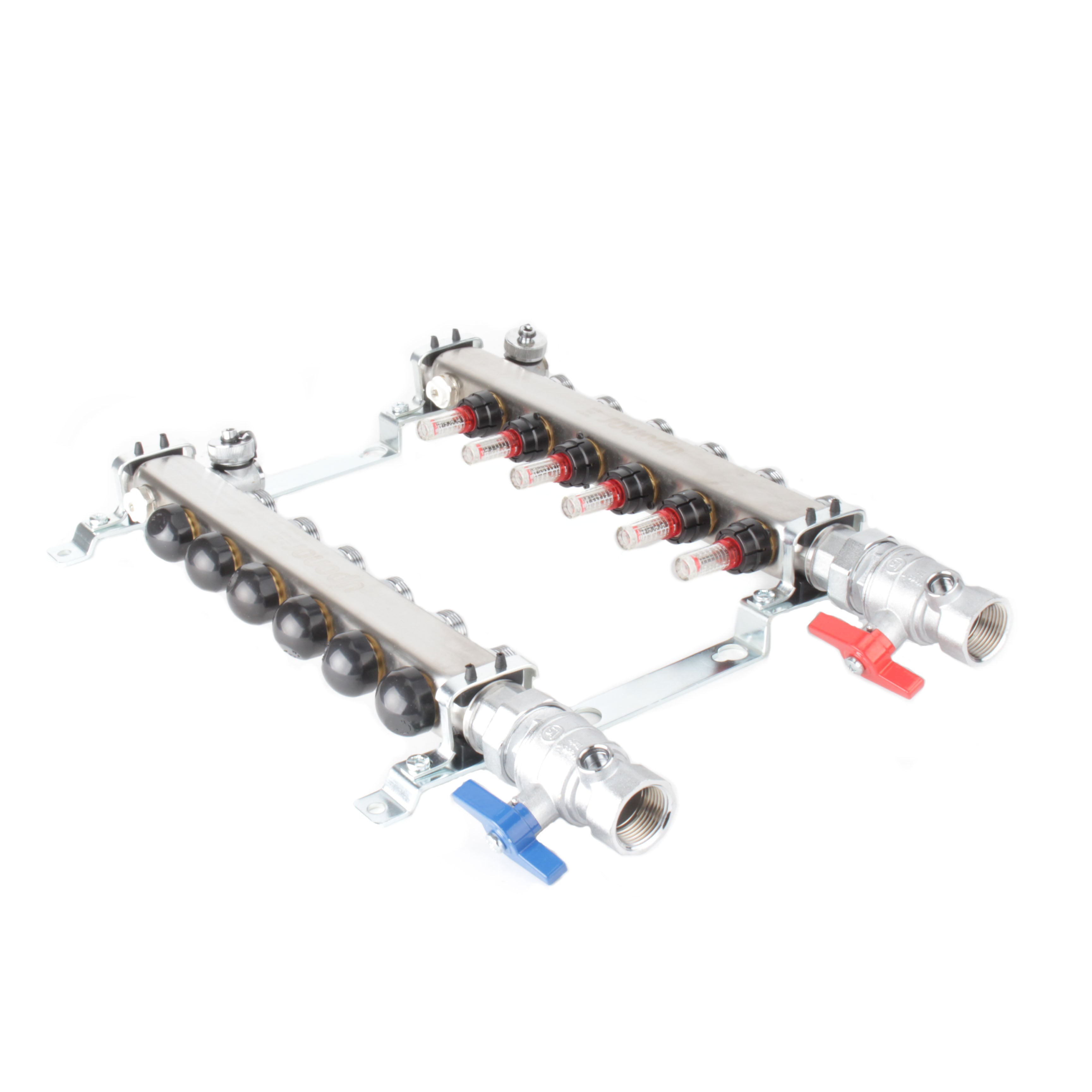

The Uponor A2700602 is a stainless steel 1 inch manifold assembly featuring a flow meter, balancing valves, and isolation ball valves. This manifold is designed for radiant heating and cooling applications. The assembly is fully assembled and ready for installation, ensuring efficient use in various systems.
- Includes 6 loops for optimal water distribution
- Equipped with R32 union connections and R20 male threads
- Supports a maximum flow rate of fourteen gallons per minute
Product Highlights
This product is ideal for both residential and commercial systems. It features high-quality components with a flow rate of fourteen gallons per minute and is compatible with various heating and cooling systems.
Product Information
Standard Information
-
Brand: Uponor
-
MPN: A2700602
Technical Specifications
-
Nominal Size: 1-1/4 x 3/4 inches
-
Connection Type: ISO 228-G x ISO 228-G
-
Number of Loops: 6
-
Flow Rate: 14 GPM
-
Width: 19.034 inches
-
Height: 14.119 inches
-
Depth: 3.842 inches
-
Body Material: 304 Stainless Steel
-
Additional Specifications: Cv Branch: 1.1, Manifold Components: Brass
