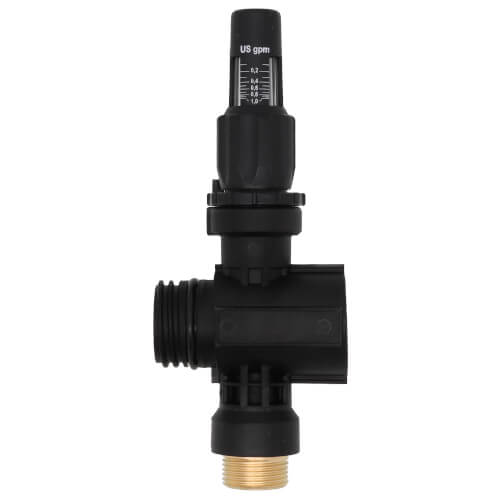

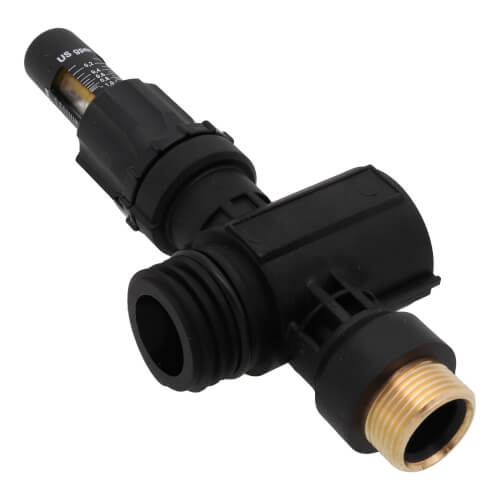

Uponor A2670003 EP Heating Manifold Single Section Balancing Valve and Flow Meter

Product Description

The Uponor A2670003 EP Heating Manifold is designed as a single section with a balancing valve and flow meter. It is suitable for use in hydronic heating systems, specifically for assemblies A2670201 through A2670801. This manifold provides essential control for fluid flow in radiant heating applications.

• Nominal Size: Three-quarter inch by three-quarter inch
• Flow Rate: Fifteen point four gallons per minute
• Material: Engineered polymer construction

Product Highlights

Ideal for hydronic radiant heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Uponor
• MPN: A2670003

Technical Specifications

• Flow Rate: 15.4 GPM
• Nominal Size: 3/4 x 3/4 inches
• Connection Type: ISO 228-G x ISO 228-G
• Width: 2 inches
• Height: 7.5 inches
• Body Material: Engineered Polymer
• Additional Specifications: Manifold: PA66-GF30 Valve Insert; Handwheels: POM Metal; Inserts: Brass C38500; Axel: Stainless Steel; Spring: Stainless Steel; O-ring: EPDM; Cv Branch: 1.4; Test Pressure Rating: 101.5 PSI Air, 145 PSI Water
