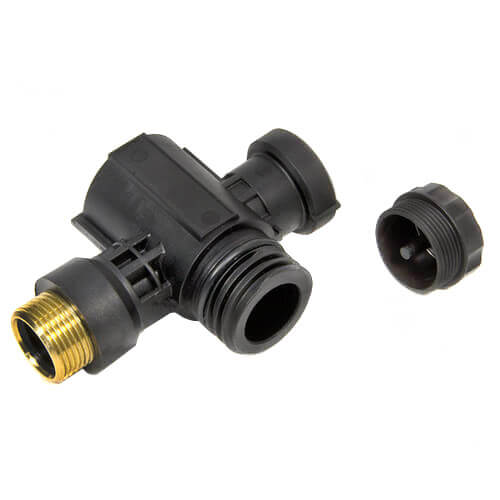

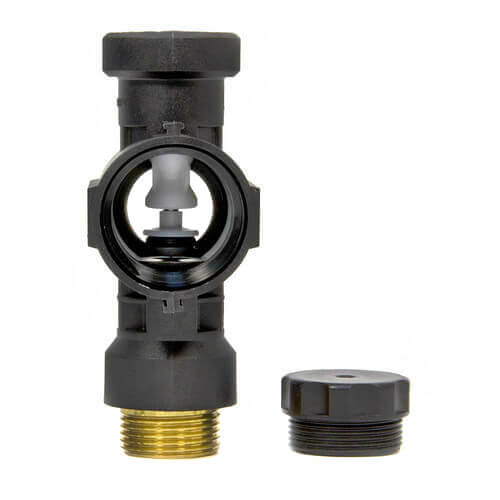

Uponor A2670001 EP Heating Manifold Single Section With Isolation Valve

Product Description

The Uponor EP heating manifold single section with isolation valve, MPN A2670001, is designed for hydronic radiant heating and cooling systems. Its isolation valve allows for easy maintenance and system adjustments without interrupting the entire system. The manifold functions as a single loop add-on used on the return side for existing EP heating manifold assemblies A2670201 through A2670801.

• Nominal Size: 3/4 X 3/4 inches
• Flow Rate: 15.4 GPM
• Test Pressure Ratings: 101.5 PSI Air, 145 PSI Water

Product Highlights

This heating manifold features an engineered polymer body for durability and reliability in various applications.

Product Information

Standard Information

• Manufacturer: Uponor
• MPN: A2670001

Technical Specifications

• Width: 2 inches
• Height: 4.6 inches
• Body Material: Engineered Polymer
• Connection Type: ISO 228-G X ISO 228-G
• Flow Rate: 15.4 GPM
• Additional Specifications: PA66-GF30 Valve Insert, Brass C38500 Inserts, Stainless Steel Axle, EPDM O-ring.
