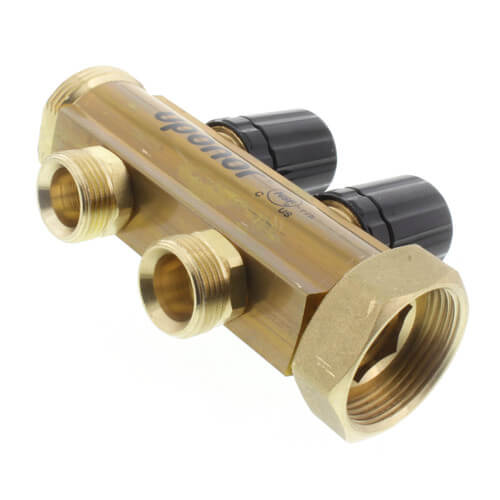

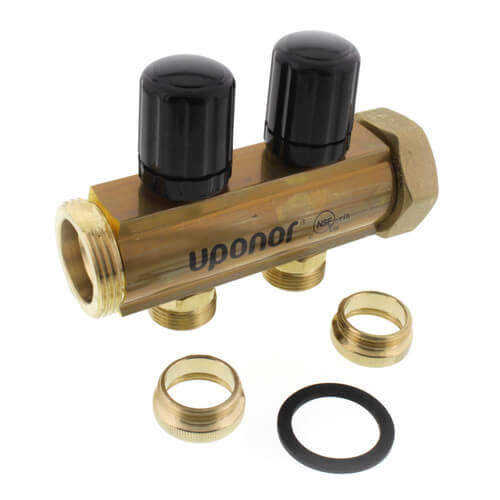

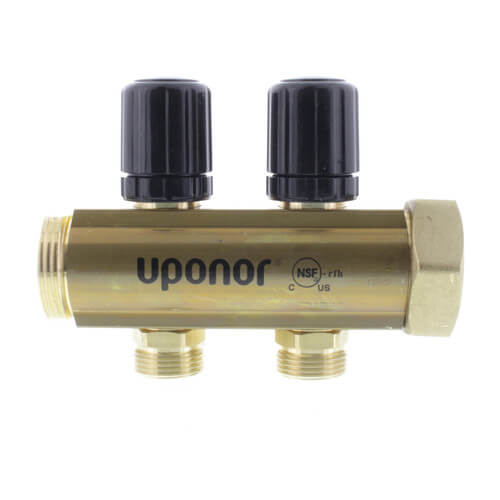

Uponor A2663222 TruFLOW Jr Modular Manifold With Isolation Valve, 2 Loop

Brand: UPONOR
SKU: A2663222
Availability: In Stock

Ships same day if ordered by 12 pm
$47.14
$47.14
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The UPONOR A2663222 TruFLOW Jr Modular Manifold is a return manifold with an isolation valve and 2 loops. It features a 1-1/4" R32 NPT inlet and (2) 3/4" R20 MPT outlets. Constructed from UNS C3850 brass, it is designed for a maximum fluid flow rate of 14 GPM and a pressure of 145 PSI.

  • Return Manifold
  • Isolation Valve
  • Maximum fluid flow rate of 14.0 gpm

Product Highlights

This manifold is fully assembled and ready for installation. It allows for manual isolation of individual loops and is compatible with Uponor thermal actuators or MVAs.

Product Information

Standard Information

  • Brand: UPONOR
  • Manufacturer Part Number: A2663222
  • Country of Origin: Import
Technical Specifications
Inlet
1-1/4" R32 NPT
Outlet
(2) 3/4" R20 MPT
Pressure
145 PSI
Flow Rate
14 GPM
Material
UNS C3850 Brass
Number of Outlets
2
Temperature Rating
220 deg F
Application
Radiant Heating and Cooling Systems
Manifold Body Size (ID)
1-1/4"
Loop Cv (valve wide open)
1.9
Manifold Body Threaded Connections
R32
Manifold Loop Threaded Connections
R20
Maximum Working Pressure
145 psi
Maximum Fluid Temperature
220°F (104°C)
Maximum Fluid Flow Rate
14.0 gpm
PEX Size
1/2"
Supply Thread
R32
Loop Thread
R20
Fitting System Compatibility
PEX Compression
Tubing Compatibility
PEX-AL-PEX, PEX
Manifold Compatibility
Truflow
End Connection
R32 Union x R20 Male
End Connection 1
R32 Union
End Connection 2
R20 Male
Fitting Size 1
1-1/4 in.
Fitting Size 2
3/4 in.
Fitting Sizes
1-1/4 in. x 3/4 in.
Pressure - Maximum
145 psi
Product Type
Hydronic Flow-Through Manifolds
Outlet Quantity
2
Brand
Wirsbo
Country of Origin
Italy
UPC
673372182287
Body Material
Brass
Number of Loops
2
