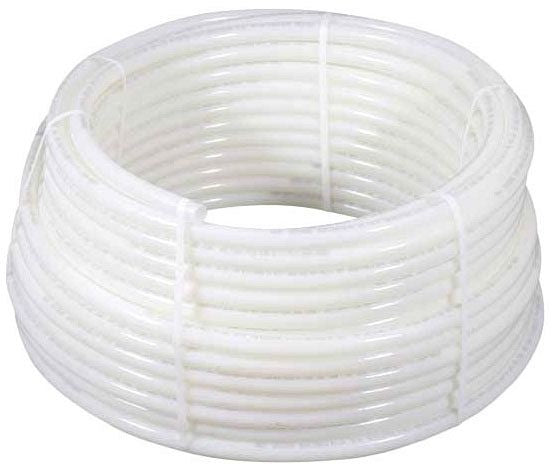

Uponor A1251000 Pex 1 in 300 ft

Product Description

The Uponor A1251000 is a PEX pipe. This PEX pipe features an oxygen barrier that conforms to DIN 4726 and is designed for closed-loop hydronic piping, radiant heating, and cooling applications. It is rated to withstand 160 psi maximum pressure. The tubing is compatible with Uponor's ProPEX and Quick Seal (QS) fittings and is manufactured in full compliance to ASTM F876 and ASTM F877.

• Oxygen barrier conforms to DIN 4726
• For use in closed-loop hydronic piping
• Suitable for radiant heating and cooling applications

Product Highlights

The Uponor A1251000 PEX pipe is ideal for radiant heating and cooling systems, snow and ice melting systems, and hot and cold water distribution.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: A1251000

Technical Specifications

• UOM: ft
• Inner diameter coil [inch]: 22.7 inch
• Outer diameter coil [inch]: 32 inch
• Coil width [inch]: 16 inch
• Inner diameter pipe [inch]: 0.862 inch
• Outer diameter pipe [inch]: 1.125 inch
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Material Service Pipe: Crosslinked polyethylene (PEX-a) tubing; SDR-9, with EVOH oxygen barrier that conforms to DIN 4726
• Thermal conductivity pipe [BTUin/ft²hrF°]: 0.22 btuin/ft²hrf°
• Material group: PEX
• Linear expansion rate [inch/10°F/100ft]: 1.1 inch/10°f/100ft
• Inner diameter coil [mm]: 576.58 mm
• Outer diameter coil [mm]: 812.8 mm
• Coil width [mm]: 406.4 mm
• Inner diameter pipe [mm]: 21.9 mm
• Outer diameter pipe [mm]: 28.58 mm
• Operating Pressure 1 [bar]: 11 bar
• Operating Pressure 2 [bar]: 6.9 bar
• Operating Pressure 3 [bar]: 5.5 bar
• Operating Temperature 1 [°C]: 23 °C
• Operating Temperature 2 [°C]: 82 °C
• Operating Temperature 3 [°C]: 93 °C
• Thermal Conductivity pipe [W/mK]: 0.0317 (PEX) W/mk
• Linear expansion rate [mm/5.56°C/30.48m]: 27.94 mm/5.56°c/30.48m
• Pipe density [g/cm³]: 0.936 (PEX) g/cm³
• Standard/Approvals: ANSI/NSF 14 And 61, ASTM F876, F877, F1960, F2023, E84, ASTM E119/UL 263, ASTM E814/ULC S115, CAN/ULC S102.2, S101, AWWA C904, CSA B137.5, B214 Certified, UL Listed, IAPMO Certification, ETL Listed, cNSFus-rfh, cNSFus-pw, cQAIus P321, PPI TR-4, ICC-ES, CCMC Listing
• Application: For Radiant Heating And Cooling Systems, Snow And Ice Melting Systems, Permafrost Protection Systems, Turf Conditioning Systems, Chilled Water Distribution, Hot Water Distribution
• Brand: Uponor
• Sub Brand: HePEX™
• Item Name: Barrier Tubing
• Nominal Size: 1 Inch
• Connection Type: Crimp/Clamp
• Outside Diameter: 1-1/8 Inch
• Length: 300 ft
• Material Specification: Crosslinked Polyethylene PEX-a Engel Method
• Maximum Pressure Rating: 160 psi Maximum
• Temperature Rating: 200 deg F Maximum
• Thermal Conductivity: 0.22 BTU/hr/ft/deg F
• Working Pressure: 160 psi
• Manufacturer: Uponor
• Manufacturer #: A1251000
• Pipe Diameter: 1 in
• Pipe Length: 300 ft
• Pipe Material: hePEX
• Type: hePEX
• Material: Polyethylene
• Material Construction: Polyethylene
• Series: Wirsbo hePEX™ Series
