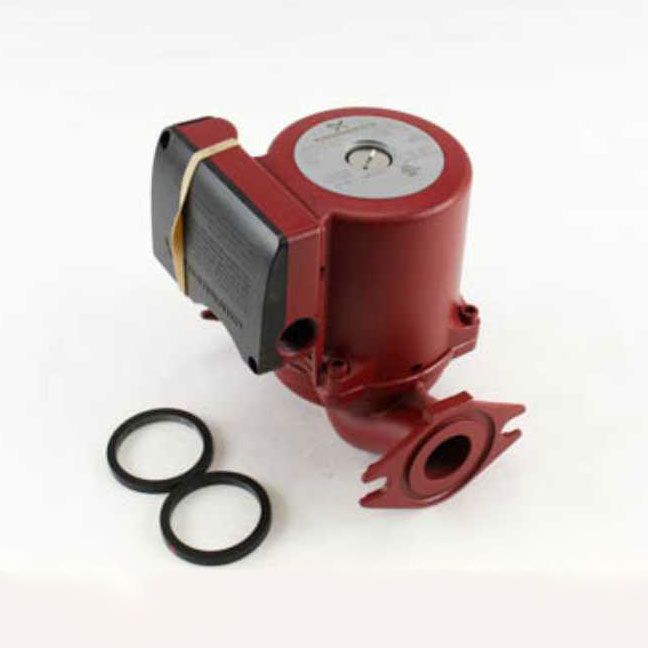

Grundfos 98961760 UP26-99SF - 3/4-1-1/2 Flanged, Stainless Steel, 1/6 HP, 115/230v, 1-Speed Booster Pump

Product Description

The Grundfos UP26-99SF is a stainless steel circulator pump specifically designed for hydronic heating applications in closed loop systems. This pump features a wet-rotor design, powered by a 1/6 HP motor that operates at 115/230 volts. It is a single speed unit, suitable for various heating needs.

• Stainless steel construction for durability.
• Includes flange gaskets with various size flange options available separately.
• Quiet operation with lubricated bearings from the fluid being pumped.

Product Highlights

The Grundfos UP26-99SF offers efficient performance with a long lifespan. Its design features a canned rotor, providing reliability without the need for a shaft seal. Ideal for residential and commercial heating systems.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98961760

Technical Specifications

• Series: UP Series
• Model: UP26-99SF
• Pump Construction: Stainless Steel
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: 3/4, 1, 1-1/4, 1-1/2 inches
• Pump Connection: Flanged
• Flanges Included: No
• Motor HP: 1/6 HP
• Motor RPM: 1-Speed
• Motor Voltage: 115/230V
• Motor Phase: 1 Phase
• Motor Hertz: 60 Hz
• Max Temp: 230 degrees Fahrenheit
• Potable Water: No
• Weight: 0.07 lbs
