Unwield UNI-MTF5 Cap'n Hook Brazing Tip - 5 Flame

Product Description

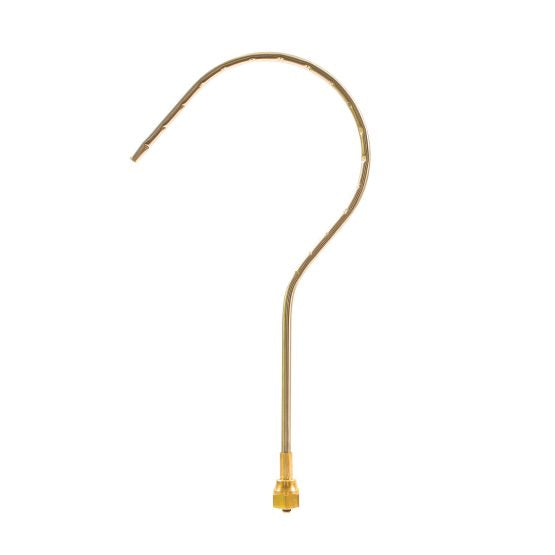

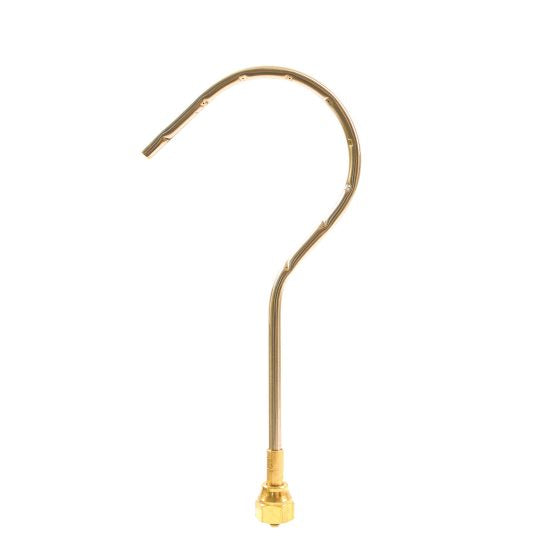

The Uniweld Cap'n Hook Brazing Tip, model UNI-MTF5, is made for effective brazing operations using acetylene fuel. It generates concentrated heat reaching temperatures up to 5600 degrees Fahrenheit. This tip has a flame angle of 40 degrees, which ensures accurate heat direction and helps avoid burning nearby materials. Its innovative 100% wraparound design enhances even heat distribution for improved brazing outcomes.

• Provides concentrated heat up to 5600 degrees Fahrenheit for brazing applications.

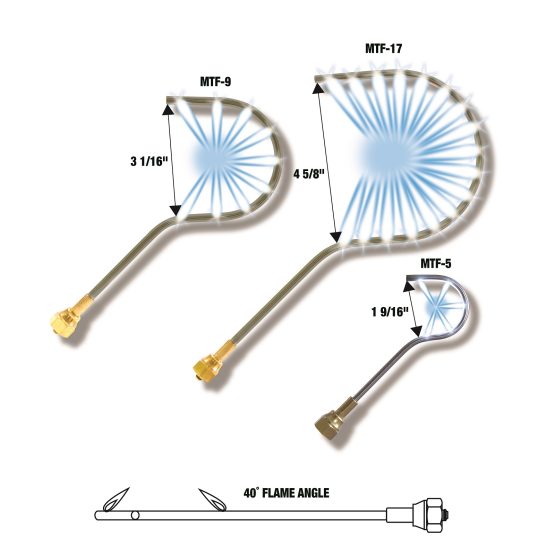

• Features a 40-degree flame angle for optimal heat direction.
• Constructed from stainless steel for durability and longevity.

Product Highlights

This Uniweld brazing tip is ideal for connecting copper tubing up to one inch in diameter. It operates efficiently with a fuel gas pressure of five PSIG and an oxygen pressure of eight PSIG, making it reliable for various brazing tasks.

Product Information

Standard Information

• Brand: Uniweld
• MPN: UNI-MTF5

Technical Specifications

• Fuel Consumption SCFH: 4 - 6
• Oxygen Pressure (PSIG): 8
• Fuel Gas Pressure (PSIG): 5
• Overall Length: 5.5 inches
• Brazing Copper Tubing up to: 1 inch
• Material: Stainless Steel
• Weight: 0.15 lbs.
• Rotation Angle: 40 degrees
