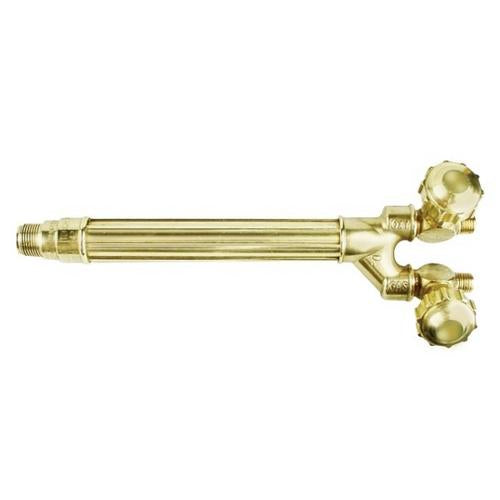

Uniweld wh350 Welding Handle 7.5 in Victor Style

Product Description

The UNIWELD wh350 is a medium-duty oxy-fuel torch handle designed for welding, cutting, and heating applications across acetylene, natural gas, propane, and propylene fuel systems. Built with a brass body and stainless steel ballpoint valves with Teflon packing, the wh350 measures 7.5 inches in overall length with a 0.75-inch handle diameter. It uses a 9/16-inch-18 UNF left-hand inlet connection with a B-size hose fitting and includes four O-ring seals. The tube-within-a-tube design and built-in B flashback arrestors are key safety and performance features. Installed by certified welders and pipefitters, this handle is a direct-fit Victor-style torch body suited for shop and field use.

The wh350 supports welding stock up to 1.25 inches thick and accommodates a two-hose setup for oxygen and acetylene or other compatible fuel gases. It is used in fabrication shops, HVAC service, plumbing, and industrial maintenance where a reliable mid-duty torch handle is required. Compatible heating tip series MFA-1, welding and brazing tip series W-1, compatible tip series 3-101-1, and cutting attachments CA350 and CA350B all fit this handle, making it a versatile platform for multiple torch operations without swapping handles.

Key Features

• Brass body construction for durability and corrosion resistance
• Stainless steel ballpoint valves with Teflon packing for precise gas flow control
• Tube-within-a-tube design for added safety and clean gas delivery
• B-size built-in flashback arrestors on both hose inlets
• Left-hand 9/16-inch-18 UNF inlet threading — standard for fuel gas connections
• Compatible with cutting, heating, and welding tip series for multi-purpose use
• Includes four O-ring seals for leak-free assembly

Compatibility

Compatible fuel types include acetylene, natural gas, propane, and propylene. Accepts cutting attachments CA350 and CA350B. Compatible tip series: welding and brazing tip series W-1, heating tip series MFA-1, and tip series 3-101-1. Victor-style torch geometry.

Installation Notes

Installation should be performed by a qualified welder or pipefitter familiar with oxy-fuel equipment. Shut off all gas supplies and depressurize hoses before assembling or disassembling the handle. Use appropriate leak-detection solution on all connections after assembly — never use an open flame to check for leaks. Follow applicable OSHA and CGA guidelines for oxy-fuel torch handling and storage.

Technical Specifications

• Overall Length: 7.5 inches
• Handle Diameter: 0.75 inches
• Maximum Welding Thickness: 1.25 inches
• Inlet Connection Size: 9/16-inch-18
• Inlet Connection Type: UNF
• Inlet Thread Direction: Left Hand
• Hose Fitting Size: B
• Number of Hoses: 2
• Duty Rating: Medium/Standard Duty
• Body Material: Brass
• Compatible Fuel Types: Acetylene, Natural Gas, Propane, Propylene
• Torch Style: Victor
• Weight: 0.825 pounds (13.2 oz)
• Includes: 4 O-Ring Seals
• Country of Origin: United States

Standard Information

• Brand: UNIWELD
• Manufacturer Part Number: wh350
