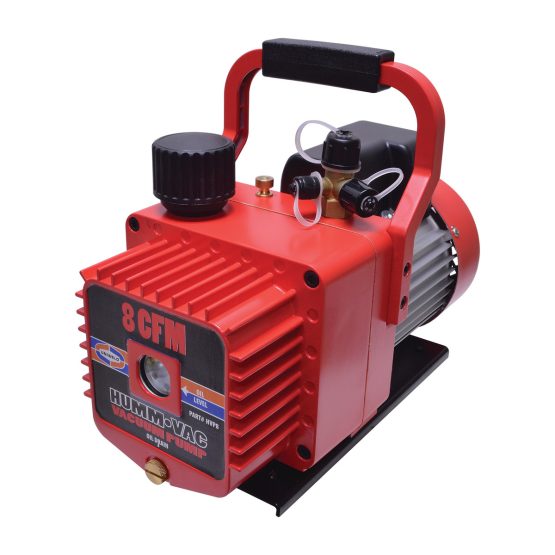

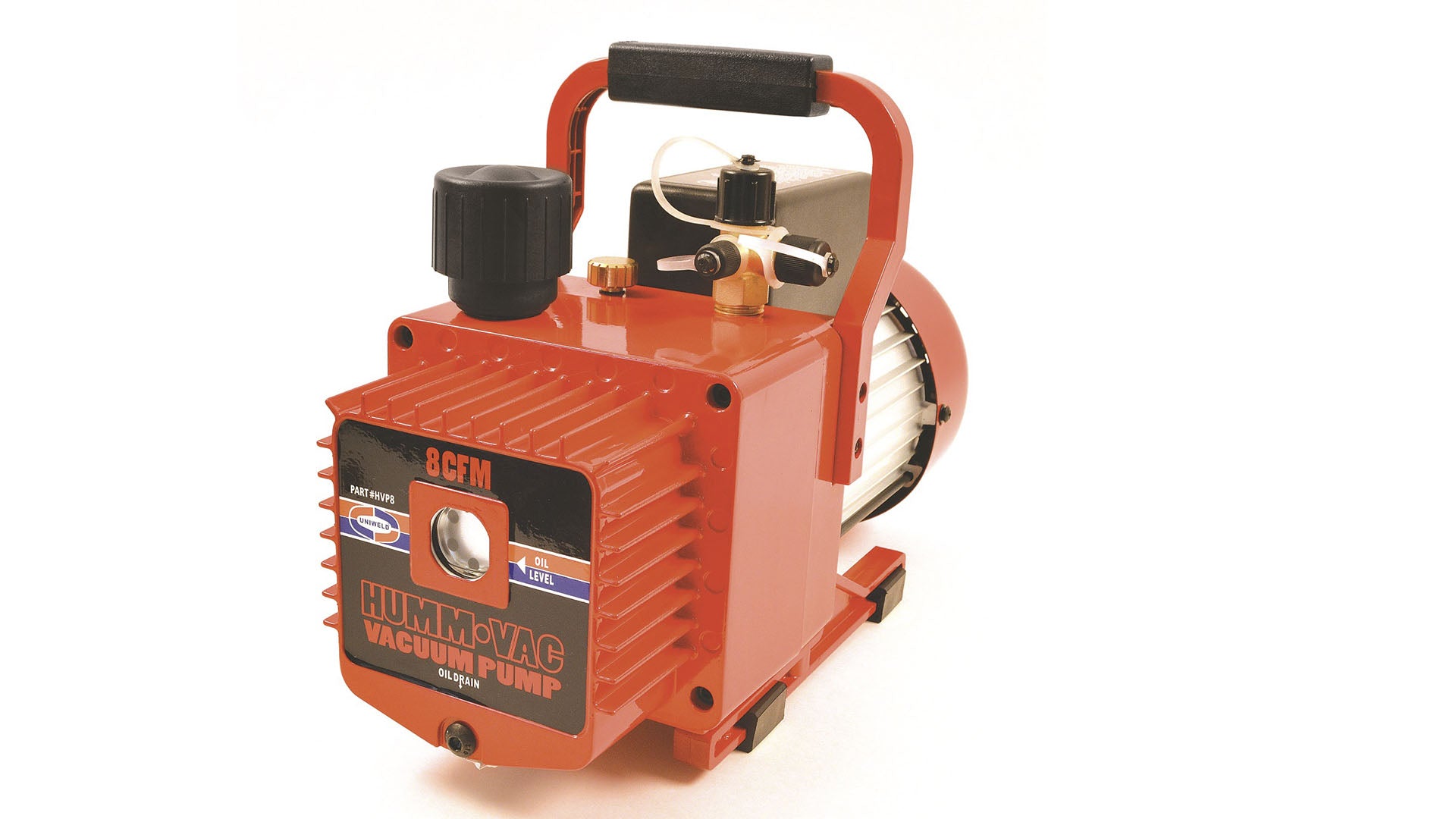

UNIWELD UNI-HVP8 Vacuum Pump - 8 CFM 2-Stage Rotary Vane - 110/220V

Product Description

The UNIWELD UNI-HVP8 is a two-stage rotary vane vacuum pump, ideal for refrigerant evacuation. It works on 110/220V AC power and has a motor power of 3/4 HP. This pump achieves an end vacuum of 15 microns and a displacement rate of eight cubic feet per minute (CFM). It features multiple male flare connections for versatile applications and an oil capacity of 31.3 ounces. The construction includes an aluminum and steel body for durability.

• Operates on 110/220V AC power, suitable for various power sources.
• Achieves an end vacuum of 15 microns for effective system dehydration.
• Features multiple connection sizes (1/4, 3/8, and 1/2 male flare) for versatile compatibility.

Product Highlights

This vacuum pump is essential for HVAC professionals, providing reliable performance for refrigerant management tasks.

Product Information

Standard Information

• Brand: UNIWELD
• MPN: UNI-HVP8

Technical Specifications

• CFM: 8.0
• Liter/min: 226
• Type: Vacuum Pump
• Factory Micron Rating: 15
• Connections: 1/4, 3/8 & 1/2 Male Flare
• Motor: 3/4 HP
• Power Cord: 72 U.S. Type B Plug
• Oil Capacity: 31.3 oz
• Voltage: 110/220 V
• Height: 10.3 inches
• Length: 13.65 inches
• Width: 6.82 inches
• Number of Stages: 2-Stage Rotary Vane
• Weight: 30.2 lbs
• Body Material: Aluminum, Steel
