Product Description

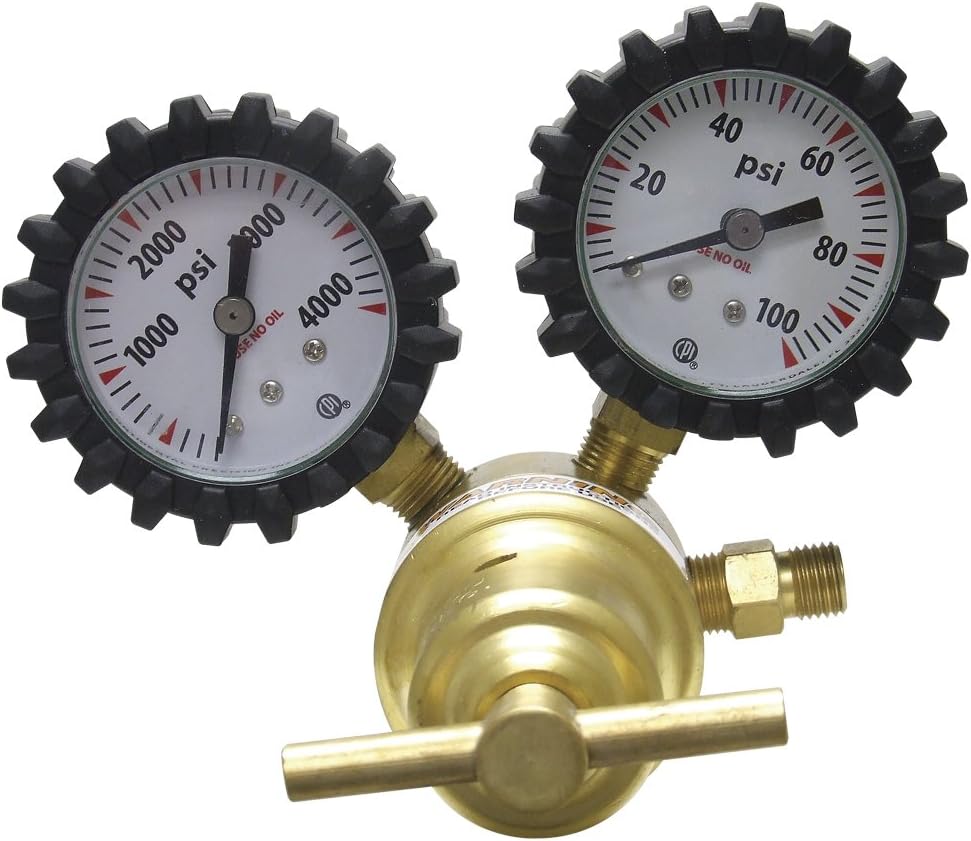

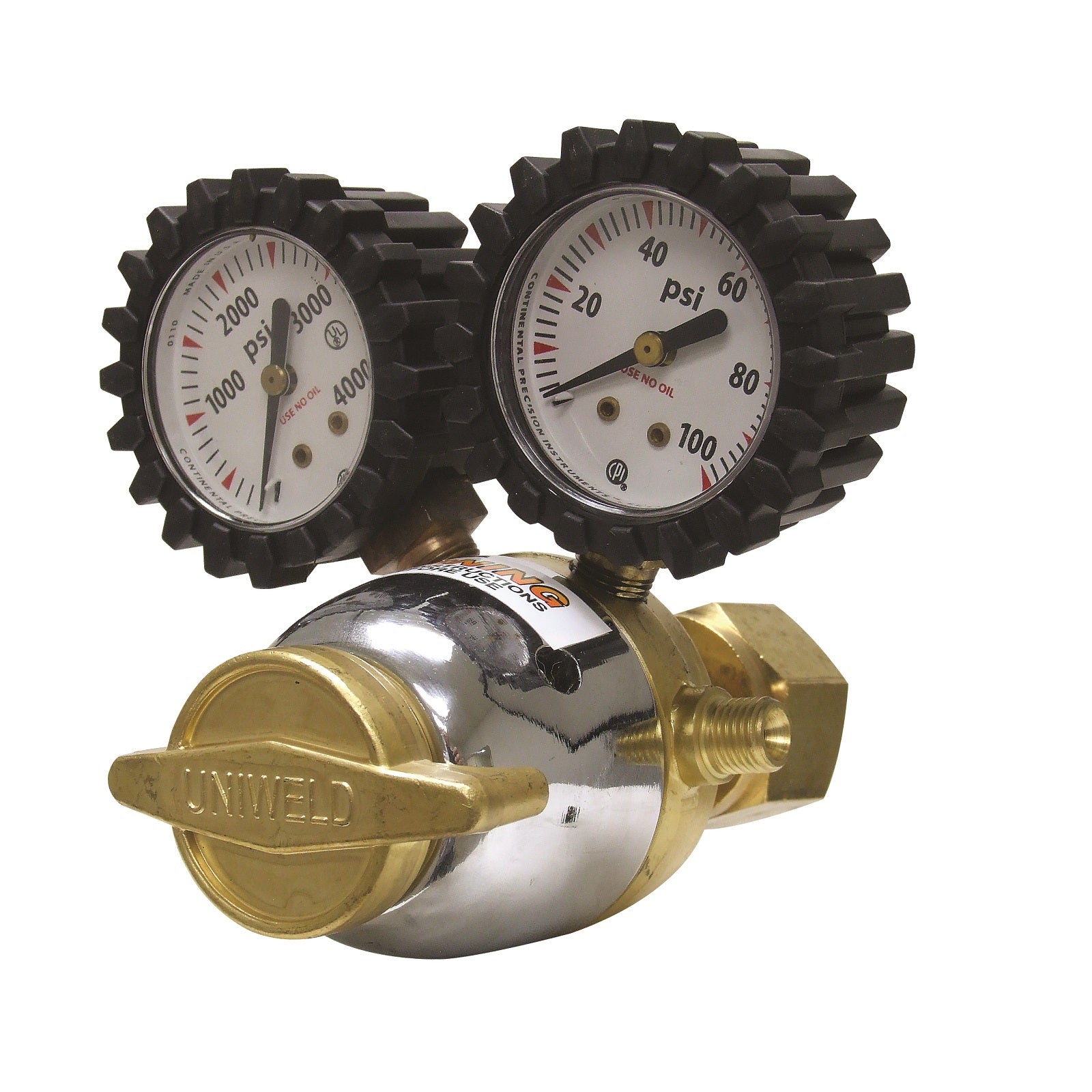

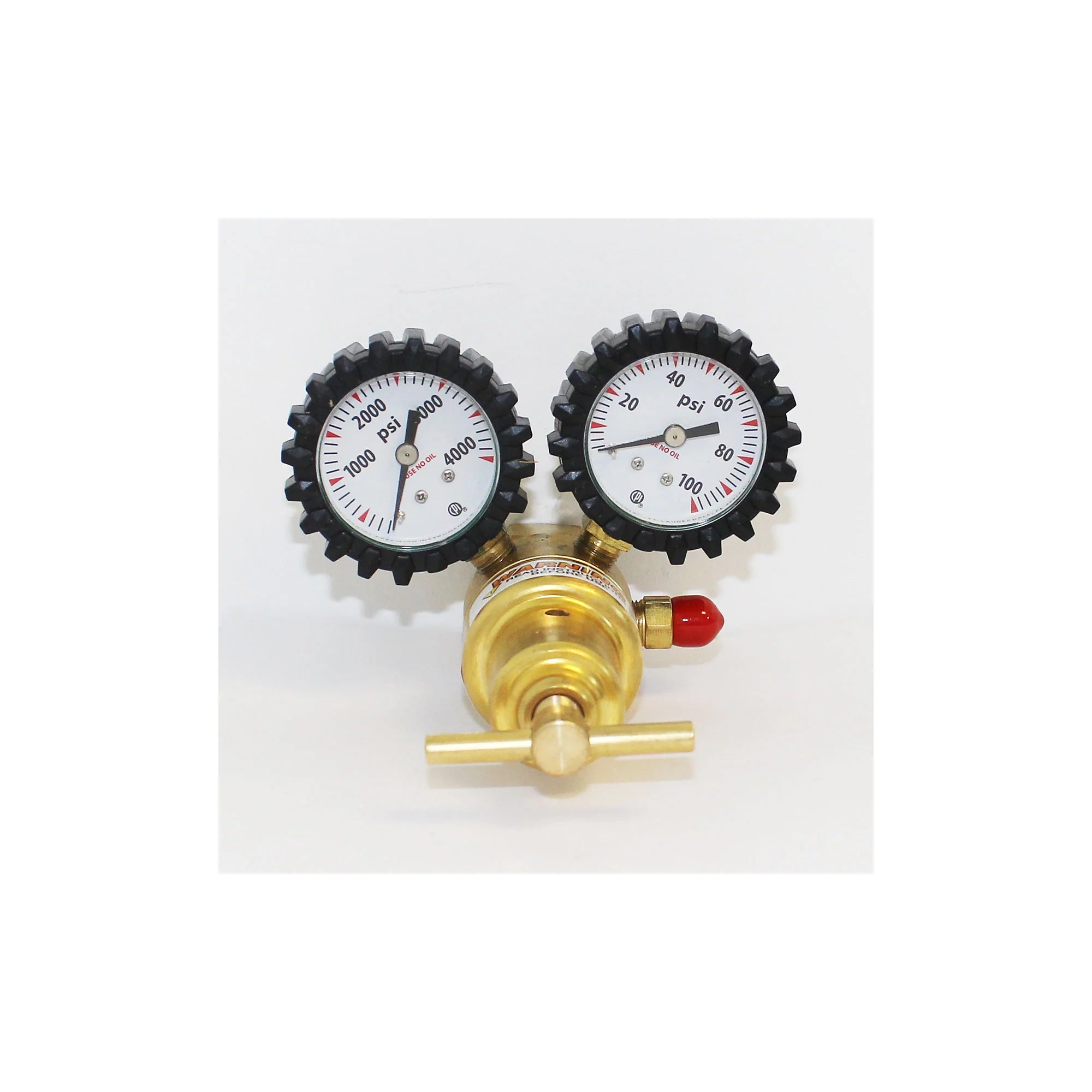

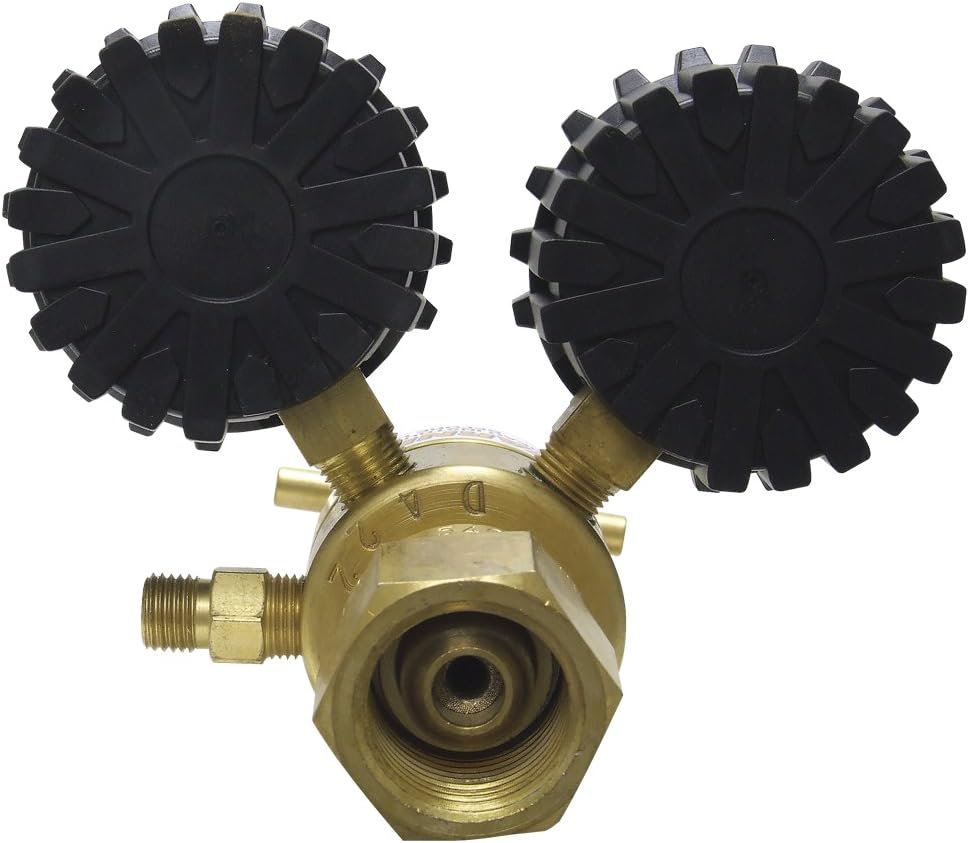

The Uniweld RO100 Centurion Series Oxygen Regulator features an "A" outlet connection and a 540 CGA inlet. This economical, lightweight regulator has a reseatable safety blow off valve to protect the diaphragm from damage. It features a rugged brass body, 1 1/2" gauges, and protective rubber gauge boots.
- "A" outlet connection
- 540 CGA (Compressed Gas Association) inlet
- Reseatable safety blow off valve
Product Highlights
This Centurion series oxygen regulator is lightweight and features a rugged brass body, 1 1/2" gauges, and protective rubber gauge boots.
Product Information
Standard Information
-
Brand: UNIWELD
-
Manufacturer Part Number: RO100
-
Country of Origin: CHN
Technical Specifications
-
Item Model Number: RO100
-
Part Number: RO100
-
Item Package Quantity: 1.0
-
Batteries Included?: No
-
Batteries Required?: No
-
Brand: Uniweld
-
Stage: Single
-
Width: 3.5
-
Height: 4.75
-
Length: 4.5
-
Display: Yes
-
Gauge Size: 1-1/2"
-
Hoses Included: No
-
Outlet Range (psig): 2-60
-
Maximum Inlet Pressure: 3000
-
CGA Number: CGA 540
-
Duty Rating: Light Duty
-
Control Type: T-Handle
-
Body Material: Brass
-
Overall Depth: 4.5 in
-
Overall Width: 4.25 in
-
Gauge Diameter: 1 1/2 in
-
Overall Height: 3.5 in
-
Filter Material: Metal
-
Regulator Series: R
-
Hose Fitting Size: A
-
Diaphragm Material: Neoprene
-
Compatible Gas Type: Oxygen
-
Inlet Thread Direction: Right Hand
-
Outlet Connection Size: 3/8"-24
-
Inlet Connection Gender: Male
-
Outlet Thread Direction: Right Hand
-
Inlet Pressure (Maximum): 3,000 psig
-
Outlet Connection Gender: Male
-
Outlet Pressure (Maximum): 60 psig
-
Outlet Pressure (Minimum): 2 psig
-
Delivery PSI: 2-60
-
Series: Ceturion®
-
Model: RO100
-
Item Type: Gas Regulator
-
Pressure Rating: 60 psi
