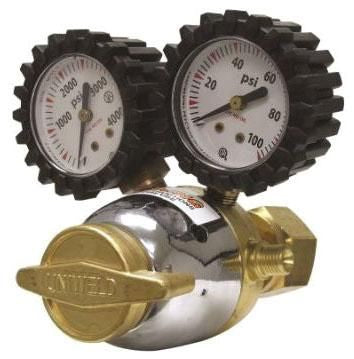

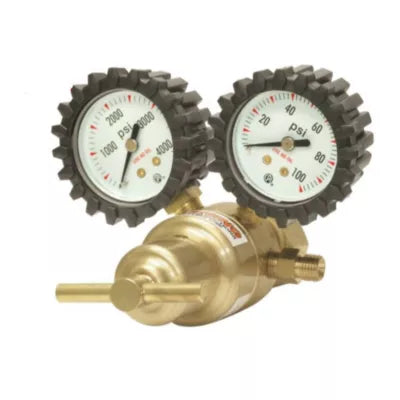

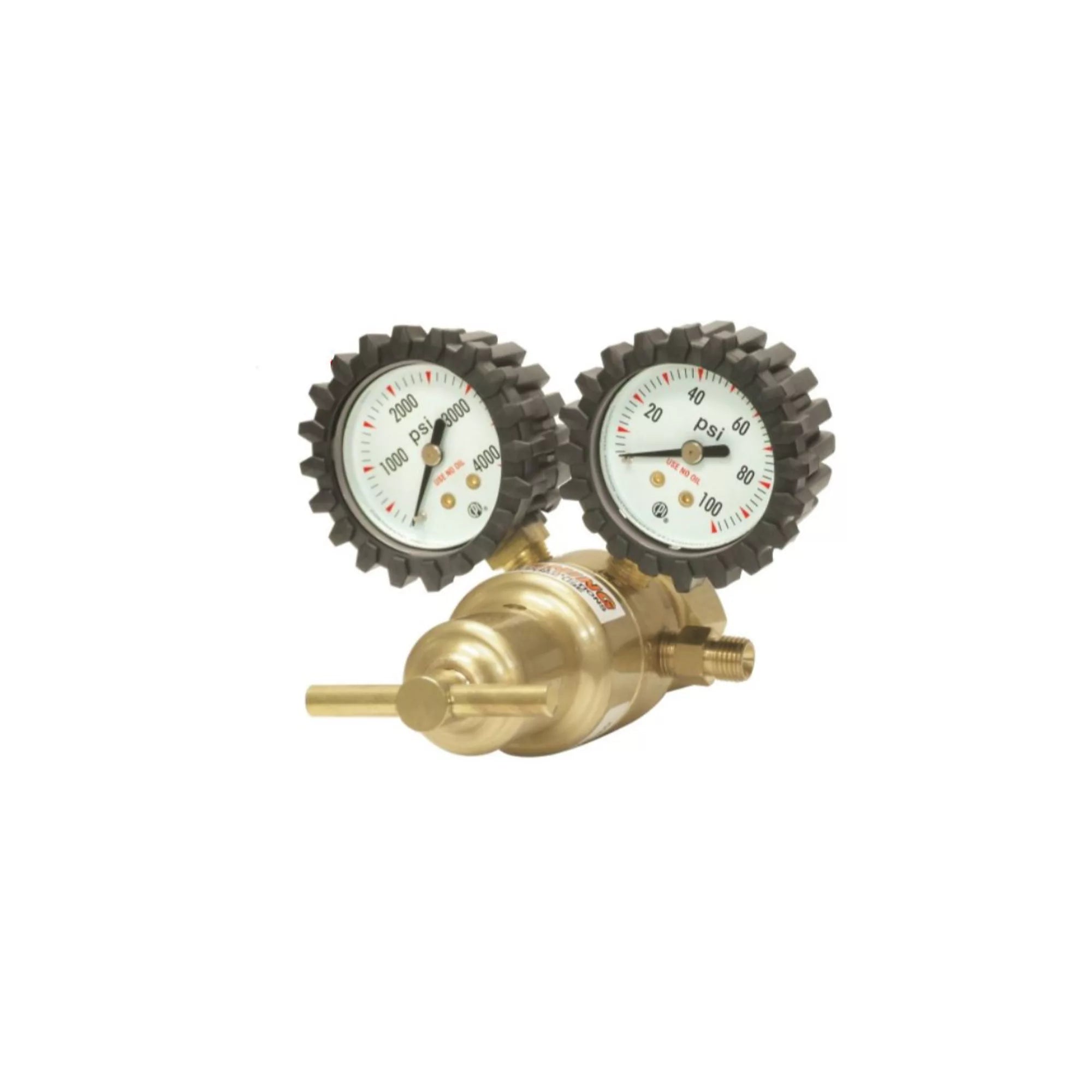

Uniweld RMC Patriot Series Acetylene Regulator 2-15 PSI A Conn 1.5 Inch Gauge

Product Description

The Uniweld RMC Patriot series acetylene regulator features an "A" outlet connection and a 200 CGA (Compressed Gas Association) inlet. Designed for welding and brazing outfits, it provides a delivery pressure of 2-15 psi. The regulator includes a 400 PSI contents gauge, indicating full, 3/4, 1/2, and 1/4 levels. Its specially compounded diaphragm and seat material ensure accuracy and reliability for gas flow control.

• Protective rubber gauge boots enhance durability and safety
• Rear inlet service for convenient installation and maintenance
• Specially compounded diaphragm and seat material ensure accuracy and reliability

Product Highlights

Accurate and reliable acetylene gas regulation with protective features for welding and brazing applications.

Product Information

Standard Information

• Brand: UNIWELD
• Manufacturer Part Number: RMC
• Country of Origin: USA

Technical Specifications

• Brand: Uniweld
• Number of Stages: Single
• Display: Yes
• Hose Type: N/a
• Gauge Size: 1.5"
• Hoses Included: No
• Delivery Pressure Range: 2-15 psi
• Maximum Inlet Pressure: 400 psi
• Prop 65 Warning: Yes
• Display Options: No Options
• Item Type: Regulator
• Gas Type: Acetylene
• Outlet Connection Size: 3/8 Inch-24 TPI
• Body Material: Brass
• Diaphragm Material: Neoprene
• Inlet Filter Material: Porous Metal
• Included Features: Protective Rubber Gauge Boot, G19D Gauge
• Used On Item: Welding/Brazing Outfit
• Used On Model/Brand: Twister, Thruster, Soft Flame
• Applicable Standard: UL
• Outlet Connection Type: Left Hand
• CGA Inlet: 200
• Category: Welding & Soldering
• Manufacturer: Uniweld
• Series Model: R
• Used On Item Part Number: KT2A5MC, KT2A5MCT,KTAQ23MC, KTAQ3MC, KTA23MC, KTA3MC, K38, K40, 89603, 89605, 89622, 89623, 89610, 89611, 89626, 89627
• Product Type: Acetylene Regulator
• Outlet Connection: "A" LH Outlet Connection
• Delivery/Contents: Contents [G19D]
• Series: Patriot
