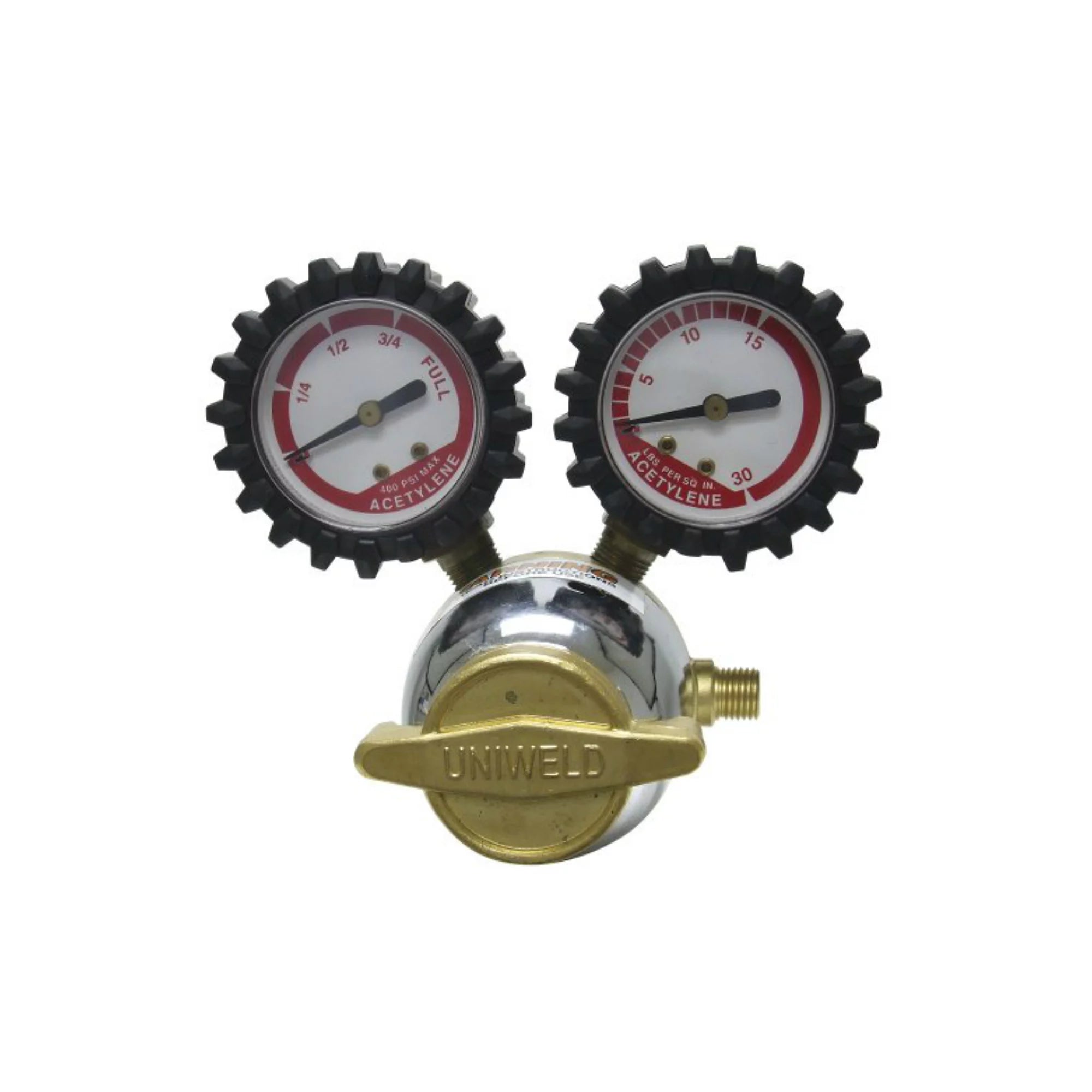

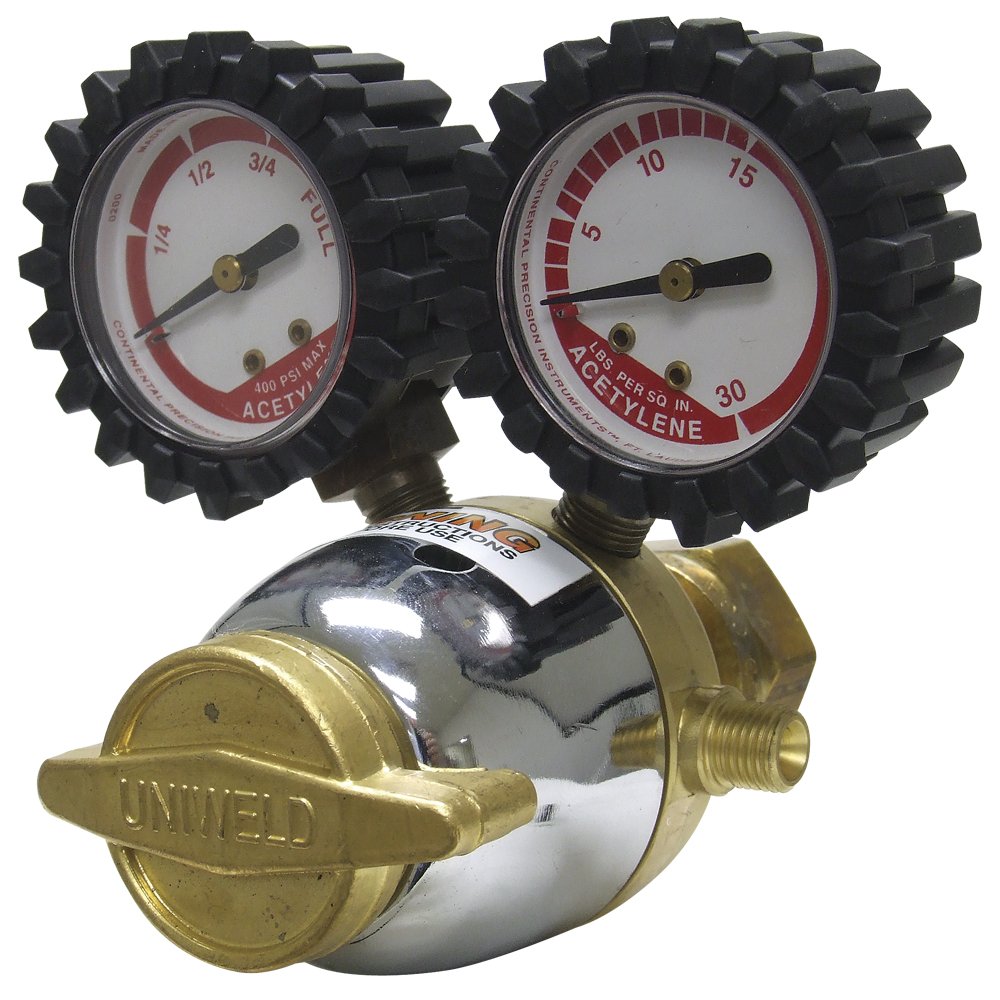

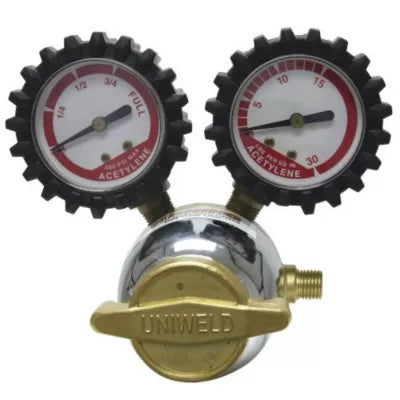

Uniweld RB2 Patriot Series Acetylene Regulator A Outlet CGA-520 (1-1/2 Gauge) G15D G19D

Product Description

The Uniweld RB2 is a Patriot series acetylene regulator with an A outlet connection and CGA-520 rear inlet that provides an adjustable delivery pressure range of 2 to 15 psi. The regulator includes easy-to-read 1-1/2 inch gauges (30 psi delivery, 400 psi contents), protective rubber gauge boots, and a tri-layered neoprene diaphragm with mechanical stem seat for controlled pressure regulation.

• Delivery pressure range: 2-15 psi; maximum inlet pressure up to 3000 psi
• Rear inlet CGA-520 with A left-hand outlet; includes 30 psi delivery and 400 psi contents gauges
• Brass body, 1-5/8 inch tri-layered neoprene diaphragm, mechanical stem type seat, porous metal inlet filter

Product Highlights

Patriot series acetylene regulator, CGA-520 rear inlet, A left-hand outlet, 2-15 psi delivery, 1-1/2 inch gauges, replacement gauges G15D (delivery) and G19D (contents)

Product Information

Standard Information

• Brand: UNIWELD
• Manufacturer Part Number: RB2
• Country of Origin: USA

Technical Specifications

• Brand: Uniweld
• MPN: RB2
• Series: Patriot
• Gas Type: Acetylene
• Inlet Connection: Rear inlet, CGA-520
• Outlet Connection: A left-hand outlet
• Delivery Pressure Range: 2-15 psi
• Maximum Inlet Pressure: 3000 psi
• Gauge Size: 1-1/2 inch
• Delivery Gauge: 30 psi
• Contents Gauge: 400 psi (shows full, 3/4, 1/2, 1/4)
• Replacement Delivery Gauge: G15D
• Replacement Contents Gauge: G19D
• Body Material: Brass
• Diaphragm: 1-5/8 inch tri-layered reinforced neoprene
• Seat Type: Mechanical stem type seat
• Inlet Filter: Porous metal inlet filter
• Adjusting Handle: Brass T-handle or forged brass adjusting screw with locking retaining ring
• Gauge Protection: Protective rubber gauge boots
• Stage: Single
• Fitting Size: 3/8-24 (male connection noted in some sources)
• Country of Origin: USA
